Toyota COROLLA CP/HB — PARTIAL ENGINE ASSEMBLY

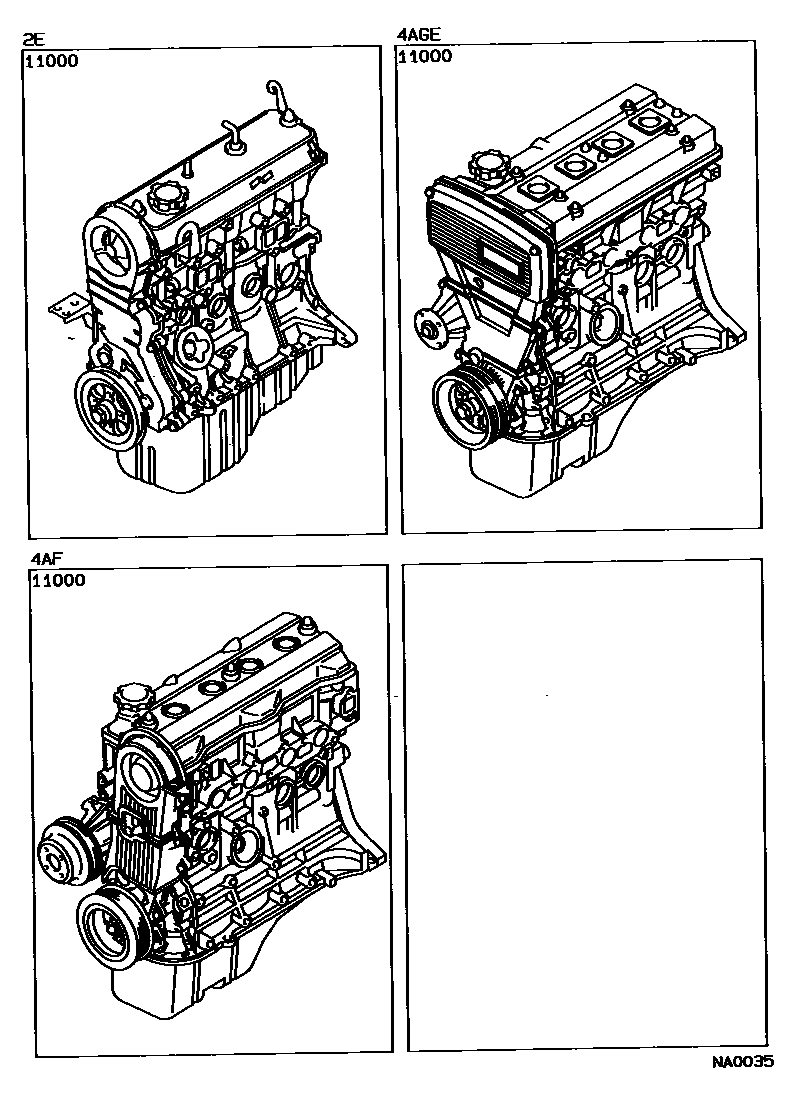

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-11230i198705-198908
main19000-11240i198705-198908
NEW ZEALAND SPEC
main19000-11330i199105-199206
NEW ZEALAND SPEC
main19000-11350i198908-199207
main19000-16370i198705-198908
sub19000-16371
main19000-16410i198908-199106
main19000-16501i198908-199308
main19000-16840i198908-199101
main19000-16841i199101-199308
sub19000-64842
main19000-16910i198908-199001
main19000-1A020i199001-199211
sub19000-16610

1 parts on this diagram · 1 diagram in section
