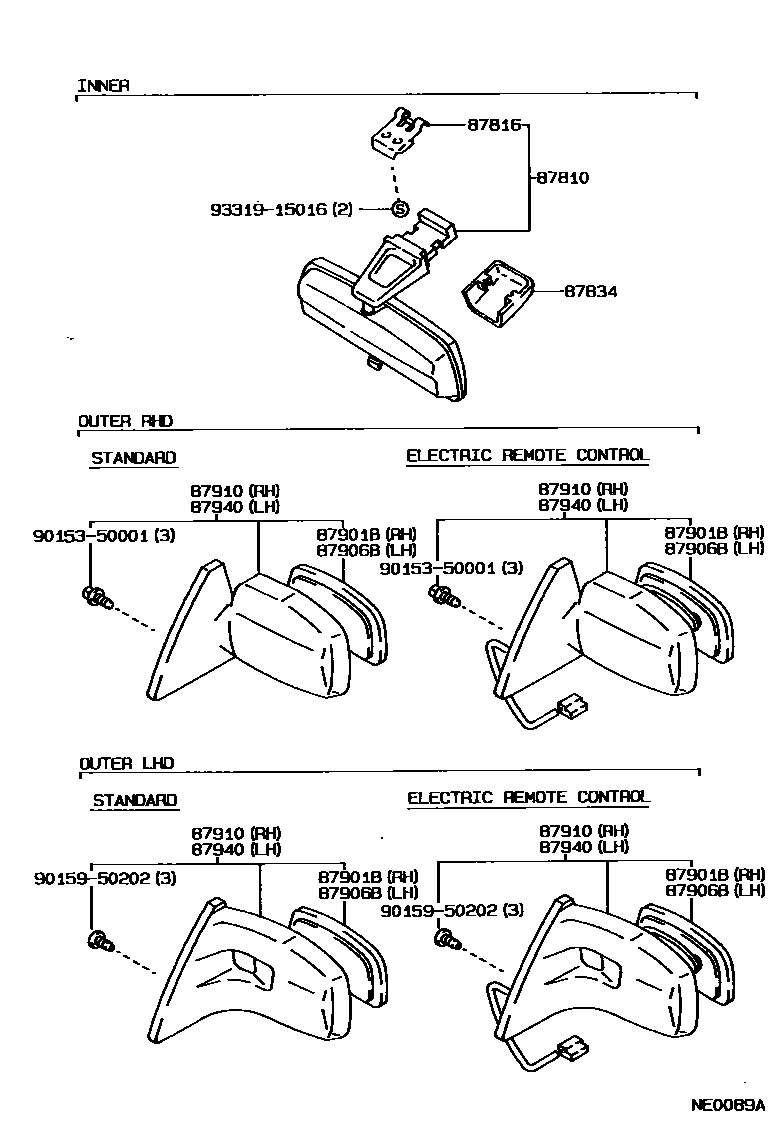

Toyota COROLLA CP/HB — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12230-03i198705-199106

SHADOW GRAY,TRIM1#

main87810-12230-04i198705-198908

DARK BLUE,TRIM8#

main87810-12230-05i198705-198908

DARK BEIGE,TRIM4#

main87810-12230-06i198908-199207

BROWN,TRIM4#

main87810-12230-P0i199106-199207

SHADOW GRAY,TRIM1#

main87810-12240-03i198705-198708

SHADOW GRAY,TRIM1#

main87810-12240-04i198908-199207

GLARE SHIELD INNER MIRROR,DARK BLUE,TRIM8#

main87810-12240-05i198708-198908

DARK BEIGE,TRIM4#

main87810-12240-06i198908-199207

GLARE SHIELD INNER MIRROR,BROWN,TRIM4#

main87810-12260-03i198808-199308

SHADOW GRAY,TRIM1#

main87810-12260-05i198808-198908

DARK BEIGE,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198705-198708

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-03i198908-199308

LIGHT GRAY,TRIM1#

main87834-12030-04i198705-198708

LIGHT BLUE,TRIM8#

main87834-12030-05i198705-198708

LIGHT BEIGE,TRIM4#

main87834-12030-06i198908-199207

BROWN,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A280i198705-199206

main87931-1A290i198705-198908

main87931-1A310i198705-198708

ELECTRIC *RCM

main87931-1A350i198705-199106

main87931-1A460i198705-199106

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1A360i198705-199308

main87961-1A370i198705-198908

main87961-1A390i198705-198708

ELECTRIC *RCM

main87961-1A430i198705-199106

main87961-1A640i198705-199106

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1A260i198705-199206

main87910-1A270i198705-199207

main87910-1A280i198808-199308

main87910-1A290i198705-199207

MANUAL *RCM

main87910-1A300i198705-199308

ELECTRIC *RCM

main87910-1A310i198705-198908

ELECTRIC *RCM

main87910-1A420i198705-198908

main87910-1A430i198705-199106

ELECTRIC *RCM

main87910-1A450i198705-198908

main87910-1A460i198705-199106

ELECTRIC *RCM

main87910-1A520i198705-199205

main87910-1A530i198705-199205

main87910-1A540i198705-199205

MANUAL *RCM

main87910-1A550i198705-199205

MANUAL *RCM

main87910-1A560i198705-199205

ELECTRIC *RCM

main87910-1A570i198705-198908

ELECTRIC *RCM

main87910-1A680-01i198908-199106

ELECTRIC *RCM,BLACK METALLIC,204

main87910-1A680-02i198908-199106

ELECTRIC *RCM,SUPER RED,3E5

main87910-1A680-03i198908-199008

ELECTRIC *RCM,GRAY METALLIC,168

main87910-1A680-04i198908-199106

ELECTRIC *RCM,DARK BLUE MICA METAL,8E9

main87910-1A680-08i198908-199106

ELECTRIC *RCM,SUPER WHITE,040

main87910-1A680-13i199008-199106

ELECTRIC *RCM,DARK BLUEISH GRAY M.,183

main87910-1A680-14i198908-199106

ELECTRIC *RCM,BLUE MICA METALLIC,8G1

main87910-1A710-02i198708-199205

ELECTRIC *RCM,SUPER RED,3E5

main87910-1A710-03i198708-199106

ELECTRIC *RCM,GRAY METALLIC,168

main87910-1A710-07i198908-199205

ELECTRIC *RCM,GRAYISH GREEN METALL,6K6

main87910-1A710-08i198708-199205

ELECTRIC *RCM,SUPER WHITE,040

main87910-1A710-14i198810-198908

ELECTRIC *RCM,DARK BLUE METALLIC,27E ,8B5

main87910-1A710-24i198908-199108

ELECTRIC *RCM,DARK BLUE MICA METAL,8E9

main87910-1A710-B1i199106-199205

ELECTRIC *RCM,DARK BLUEISH GRAY M.,183

main87910-1A710-J1i199108-199205

ELECTRIC *RCM,DARK BLUE MICA M.,8J7

main87910-1A720-02i198705-198908

ELECTRIC *RCM,SUPER RED,3E5

main87910-1A720-03i198705-198908

ELECTRIC *RCM,GRAY METALLIC,168

main87910-1A720-08i198705-198908

ELECTRIC *RCM,SUPER WHITE,040

main87910-1A720-14i198706-198810

ELECTRIC *RCM,DARK BLUE METALLIC,27E

main87910-1A730-01i198908-199106

ELECTRIC *RCM,BLACK METALLIC,204

main87910-1A730-02i198908-199106

ELECTRIC *RCM,SUPER RED,3E5

main87910-1A730-03i198908-199008

ELECTRIC *RCM,GRAY METALLIC,168

main87910-1A730-04i198908-199106

ELECTRIC *RCM,DARK BLUE MICA METAL,8E9

main87910-1A730-08i198908-199106

ELECTRIC *RCM,SUPER WHITE,040

main87910-1A730-13i199008-199106

ELECTRIC *RCM,DARK BLUEISH GRAY ME,183

main87910-1A730-14i198908-199106

ELECTRIC *RCM,BLUE MICA METALLIC,8G1

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1A340i198705-199308

main87940-1A350i198705-199206

main87940-1A360i198705-199308

MANUAL *RCM

main87940-1A370i198705-199207

MANUAL *RCM

main87940-1A380i198705-199308

ELECTRIC *RCM

main87940-1A390i198705-198908

ELECTRIC *RCM

main87940-1A520i198705-199205

main87940-1A530i198705-199205

main87940-1A540i198705-199205

MANUAL *RCM

main87940-1A550i198705-199205

MANUAL *RCM

main87940-1A560i198705-199205

ELECTRIC *RCM

main87940-1A570i198705-198908

ELECTRIC *RCM

main87940-1A600i198705-198908

main87940-1A610i198705-199106

ELECTRIC *RCM

main87940-1A630i198705-198908

main87940-1A640i198705-199106

ELECTRIC *RCM

main87940-1A710-02i198708-199205

ELECTRIC *RCM,SUPER RED,3E5

main87940-1A710-03i198708-199106

ELECTRIC *RCM,GRAY METALLIC,168

main87940-1A710-07i198908-199205

ELECTRIC *RCM,GRAYISH GREEN METALL,6K6

main87940-1A710-08i198708-199205

ELECTRIC *RCM,SUPER WHITE,040

main87940-1A710-14i198810-198908

ELECTRIC *RCM,DARK BLUE METALLIC,27E ,8B5

main87940-1A710-24i198908-199108

ELECTRIC *RCM,DARK BLUE MICA METAL,8E9

main87940-1A710-B1i199106-199205

ELECTRIC *RCM,DARK BLUEISH GRAY M.,183

main87940-1A710-J1i199108-199205

ELECTRIC *RCM,DARK BLUE MICA M.,8J7

main87940-1A720-02i198705-198908

ELECTRIC *RCM,SUPER RED,3E5

main87940-1A720-03i198705-198908

ELECTRIC *RCM,GRAY METALLIC,168

main87940-1A720-08i198705-198908

ELECTRIC *RCM,SUPER WHITE,040

main87940-1A720-14i198706-198810

ELECTRIC *RCM,DARK BLUE METALLIC,27E

main87940-1A800-01i198908-199106

ELECTRIC *RCM,BLACK METALLIC,204

main87940-1A800-02i198908-199106

ELECTRIC *RCM,SUPER RED,3E5

main87940-1A800-03i198908-199008

ELECTRIC *RCM,GRAY METALLIC,168

main87940-1A800-04i198908-199106

ELECTRIC *RCM,DARK BLUE MICA METAL,8E9

main87940-1A800-08i198908-199106

ELECTRIC *RCM,SUPER WHITE,040

main87940-1A800-13i199008-199106

ELECTRIC *RCM,DARK BLUEISH GRAY ME,183

main87940-1A800-14i198908-199106

ELECTRIC *RCM,BLUE MICA METALLIC,8G1

main87940-1A810-01i198908-199106

ELECTRIC *RCM,BLACK METALLIC,204

main87940-1A810-02i198908-199106

ELECTRIC *RCM,SUPER RED,3E5

main87940-1A810-03i198908-199008

ELECTRIC *RCM,GRAY METALLIC,168

main87940-1A810-04i198908-199106

ELECTRIC *RCM,DARK BLUE MICA METAL,8E9

main87940-1A810-08i198908-199106

ELECTRIC *RCM,SUPER WHITE,040

main87940-1A810-13i199008-199106

ELECTRIC *RCM,DARK BLUEISH GRAY ME,183

main87940-1A810-14i198908-199106

ELECTRIC *RCM,BLUE MICA METALLIC,8G1

9015350001

main90153-50001

9015950202

main90159-50202

9331915016

main93319-15016

10 parts on this diagram · 2 diagrams in section

MIRROR for Toyota COROLLA CP/HB

This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota COROLLA CP/HB. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
