Toyota COROLLA CP/HB — METER

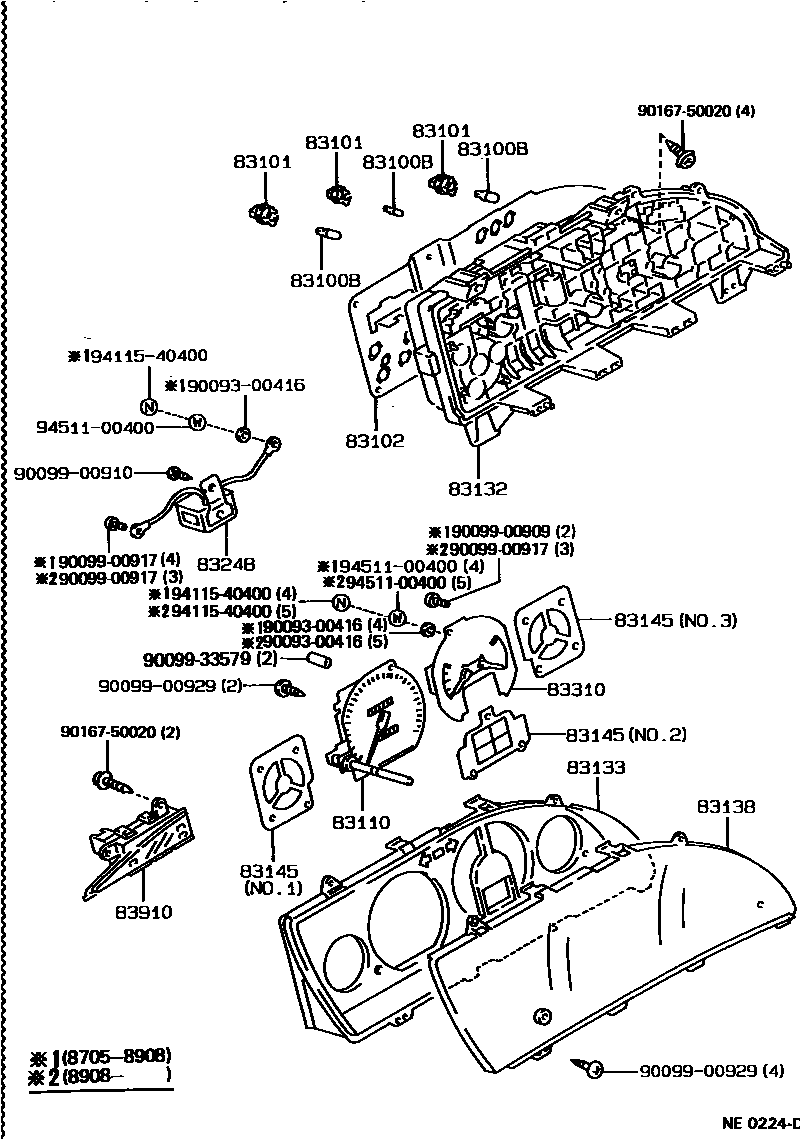

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83101-20080i198705-199308
12V 1.4W,W(SOCKET)
main83109-12030i198705-199308
12V 3.4W,BLUE CAP
main90981-11018i198705-199308
12V 1.2W W/O SOCKET
main99132-12034i198705-199308
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030i198705-199308
12V 3.4W BULB
main83101-14040i198705-199308
14V 1.4W BULB
main83101-14040i198908-199207
12V 1.4W BULB
main83101-20040i198705-199106
12V 3.4W BULB
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83247-13390i198908-199106
main83247-13470i198908-199207
main83247-13490i198908-199207
W(TACHOMETER)
main83247-1A540i198908-199106
main83247-1E040i198705-198908
main83247-1E100i198705-199308
main83247-1E101i198908-199205
main83247-1E120i198705-198908
main83247-1E281i198908-199206
main83247-1E300i198705-199308
main83247-1E380i198705-199206
main83247-1E420i198705-199206
MIDDLE EAST SPEC
main83247-1E460i198708-198908
main83247-1E560i198705-198908
W(TACHOMETER)
main83247-1E561i198908-199206
W(TACHOMETER)
main83247-1E580i198808-199308
main83247-1E660i198908-199206
W(TACHOMETER)
main83247-1E680i198705-198908
W(TACHOMETER)
83110SPEEDOMETER ASSY
main83110-1A810i198705-198908
MILE & KM
main83110-1A811i198908-199206
MILE & KM
main83110-1A820i198705-199308
main83110-1A821i198908-199206
main83110-1A850i198705-198908
MILE & KM
main83110-1A850i198705-198908
MILE & KM,W(TACHOMATER)
main83110-1A851i198908-199206
MILE & KM
main83110-1A851i198908-199206
MILE & KM,W(TACHOMATER)
main83110-1A860i198705-198908
W(TACHOMETER)
main83110-1A861i198908-199206
W(TACHOMETER)
main83110-1A880i198705-198908
main83110-1A881i198908-199206
main83110-1A890i198705-198908
MILE & KM
main83110-1A891i198908-199206
MILE & KM
main83110-1E050i198708-198908
W(TACHOMETER)
main83110-1E051i198908-199207
W(TACHOMETER)
main83110-1E060i198705-198908
W(TACHOMETER)
main83110-1E061i198908-199206
W(TACHOMETER)
main83110-1E070i198705-198908
MILE & KM,W(TACHOMATER)
main83110-1E070i198705-198908
MILE & KM
main83110-1E071i198908-199206
MILE & KM,W(TACHOMATER)
main83110-1E090i198705-199308
main83110-1E100i198705-198908
MILE & KM
main83110-1E120i198705-198908
main83110-1E130i198705-198908
MILE & KM
main83110-1E180i198705-198908
main83110-1E181i198908-199106
main83110-1E290i198705-198908
main83110-1E291i198908-199106
main83110-1E310i198808-199308
main83110-1E330i198808-199308
main83110-1E380i198708-198908
main83110-1E381i198908-199207
main83110-1E550i198908-199205
main83110-1E560i198908-199205
MILE & KM
main83110-1E580i198908-199207
main83110-1E590i198908-199207
W(TACHOMETER)
83132CASE, COMBINATION METER
main83132-1A050i198705-198908
main83132-1A110i198705-199308
main83132-1A111i198908-199205
main83132-1A131i198908-199205
MILE & KM
main83132-1A150i198705-198908
main83132-1A210i198705-199308
main83132-1A230i198705-199207
main83132-1A250i198705-199308
main83132-1A250i198705-199206
W(TACHOMATER)
main83132-1A270i198705-199207
W(TACHOMATER)
main83132-1A270i198705-198908
main83132-1A370i198908-199106
83133PLATE, COMBINATION METER, NO.1
main83133-1A190i198705-199106
main83133-1A330i198705-199308
main83133-1A370i198705-198908
main83133-1A730i198705-199308
main83133-1A750i198705-199207
main83133-1A850i198705-199206
W(TACHOMATER)
main83133-1A870i198808-199308
main83133-1E090i198705-199206
W(TACHOMATER)
main83133-1E090i198705-198908
main83133-1E130i198708-199207
W(TACHOMATER)
main83133-1E750i198908-199206
MILE & KM,W(TACHOMATER)
main83133-1E750i198908-199206
MILE & KM
main83133-1E810i198908-199207
W(TACHOMATER)
83138GLASS, SPEEDOMETER
main83138-12830i198705-199106
main83138-1A010i198705-199308
main83138-1A020i198705-198908
main83138-1A020i198908-199106
NO.1
main83138-1A030i198705-199207
83145LENS, METER, NO.1
main83145-13270i198908-199206
MILE & KM,NO.3
main83145-1A160i198705-199106
main83145-1E270i198808-199308
NO.1
main83145-1E290i198705-199308
NO.1
main83145-1E470i198705-199308
NO.2
main83145-1E550i198705-199308
NO.3
main83145-1E570i198708-199207
NO.3
main83145-1E650i198705-199206
NO.3
main83145-1E750i198705-199207
NO.2
main83145-1E750i198810-198908
MILE & KM,NO.3
main83145-1E770i198908-199207
NO.1
main83145-1E830i198705-199207
NO.1
83248CHIME, SPEED WARNING
main86640-12060i198708-199207
W(TACHOMATER)
main86640-12160i198708-199207
83310GAGE ASSY, FUEL RECEIVER
main83243-1A100i198705-198908
main83243-1A110i198705-198908
main83243-1A150i198705-199308
main83243-1A151i198908-199205
main83243-1A160i198908-199106
main83243-1A170i198705-198908
main83243-1A230i198705-198908
W(TACHOMATER)
main83243-1A230i198908-199308
main83243-1A231i198908-199206
W(TACHOMATER)
main83243-1A250i198705-198908
W(TACHOMATER)
main83243-1A251i198908-199207
W(TACHOMATER)
main83243-1A270i198705-198810
main83243-1A310i198705-198810
main83243-1A350i198708-198908
main83243-1A350i198705-198908
MIDDLE EAST SPEC
main83243-1A511i198908-199206
MIDDLE EAST SPEC
main83243-1A511i198908-199207
main83243-1A550i198908-199106
main83243-1A590i198810-199308
main83243-1A591i198908-199206
main83243-1A630i198810-198908
main83243-1A631i198908-199206
83910CLOCK ASSY
main83910-12400i198908-199308
JECO
main83910-12400i198705-198908
main83910-12410i198705-199207
main83910-12420i198705-199106
main83910-12430i198705-199106
main83910-12440i198705-199308
main83910-12450i198908-199206
RHYTHM
9009300416
main90093-00416
9009900909
main90099-00909
9009900910
main90099-00910
9009900917
main90099-00917
9009900929
main90099-00929
9009933579
main90099-33579
9016750020
main90167-50020
9411540400
main94115-40400
9451100400
main94511-00400

20 parts on this diagram · 6 diagrams in section
