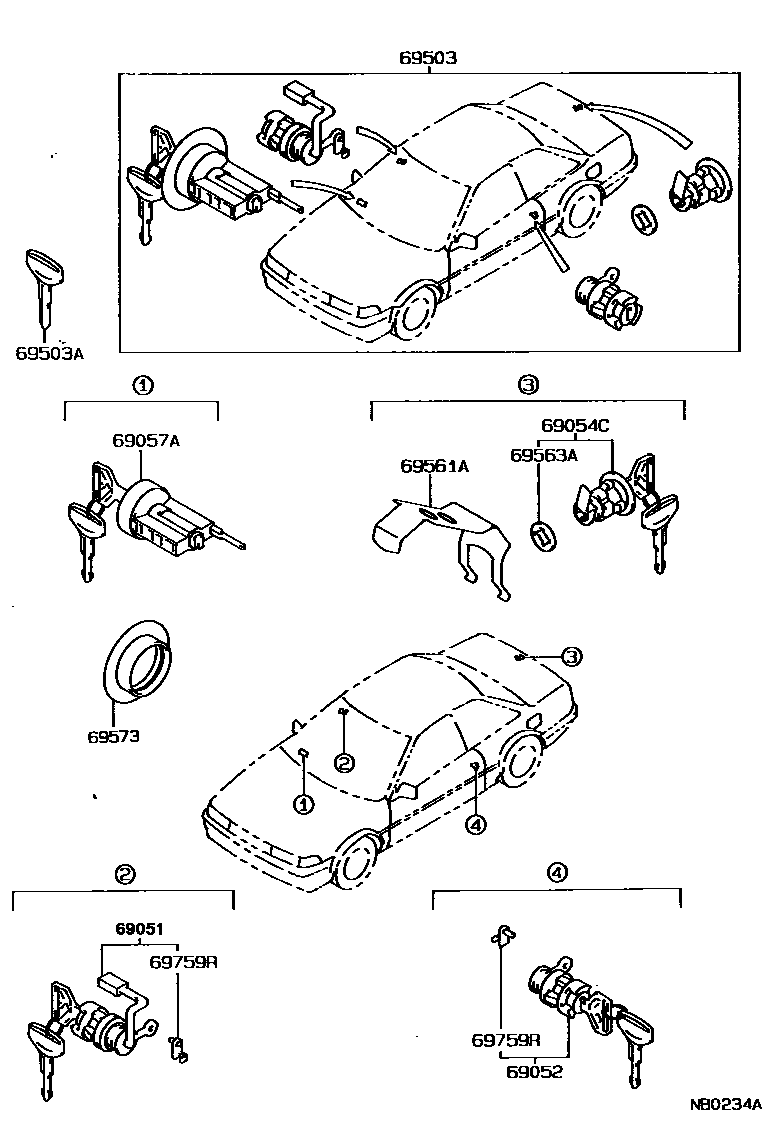

Toyota COROLLA CP/HB — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
W(*PW)
69052CYLINDER & KEY SET, DOOR LOCK, LH
W(*PW)
69054CYLINDER & KEY SET, BACK DOOR LOCK
NEW ZEALAND SPEC
69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
W(*PW)
W(*PW)
NEW ZEALAND SPEC
69503AKEY, BLANK
MASTER KEY
MASTER KEY,W(*70)
MASTER KEY,W(*68)
MASTER KEY,W(*69)
SUB KEY
SUB KEY,W(*70)
69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69563PAD, BACK DOOR LOCK CYLINDER
NEW ZEALAND SPEC
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69573PAD, IGNITION SWITCH LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
RH
LH
12 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota COROLLA CP/HB
This section contains 18 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA CP/HB. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK.
