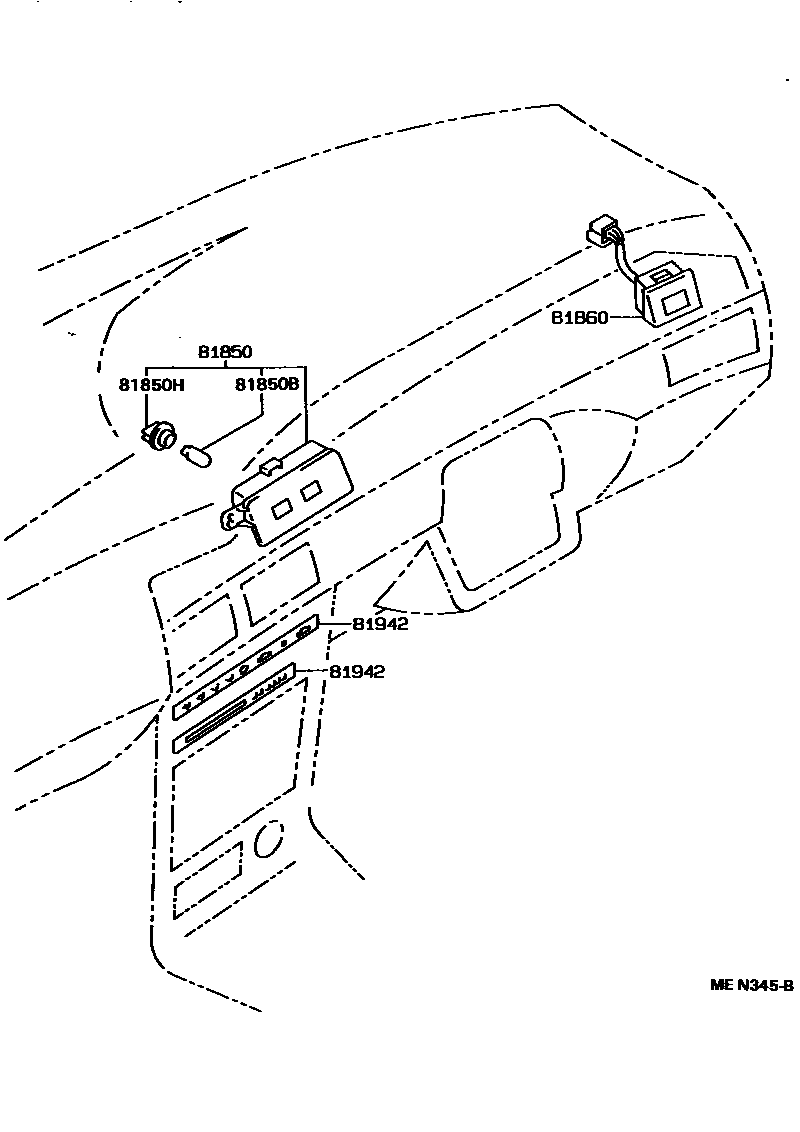

Toyota COROLLA CP/HB — INDICATOR

81850LAMP ASSY, INDICATOR

main81850-12190iAE92..RHD..XL..GEN198705-199106

main81850-12200iAE92..LHD..XL198705-199106

81850BBULB, INDICATOR LAMP

main84999-50010×2iAE92..XL..GEN198705-199106

12V 3.4W

81850HSOCKET, INDICATOR LAMP

main84999-50110×2iAE92..XL..GEN198705-199106

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-12070iAE92..4FC198908-199106

81942SHEET, HEATER CONTROL NAME

main81942-12240iAE92,EE90..SA198908-199308

W(AIR CONDITIONER),LWR

main81942-12250iEE90..RHD..GEN198712-198908

W(HEATER & AIR CONDITIONER),UPR

main81942-12270iAE92,EE90..RHD..(3D,5D)..GEN198705-199206

W(BOOST VENTILATER),LWR

main81942-12280iAE92..LHD..XL198705-199106

UPR

main81942-12290iAE92,EE90..LHD..(3D,5D)198705-199207

W(HEATER),LWR

main81942-12300iAE92,EE90..LHD..(3D,5D)198705-199207

W(BOOST VENTILATER),LWR

main81942-12320iAE92,EE90..RHD..(3D,5D)..GEN198705-199206

W(BOOST VENTILATER),UPR

main81942-12330iAE92,EE90..LHD..(3D,5D)198705-199207

W(BOOST VENTILATER),UPR

5 parts on this diagram · 1 diagram in section
