Toyota COROLLA CP/HB — HEATING & AIR CONDITIONING - SET

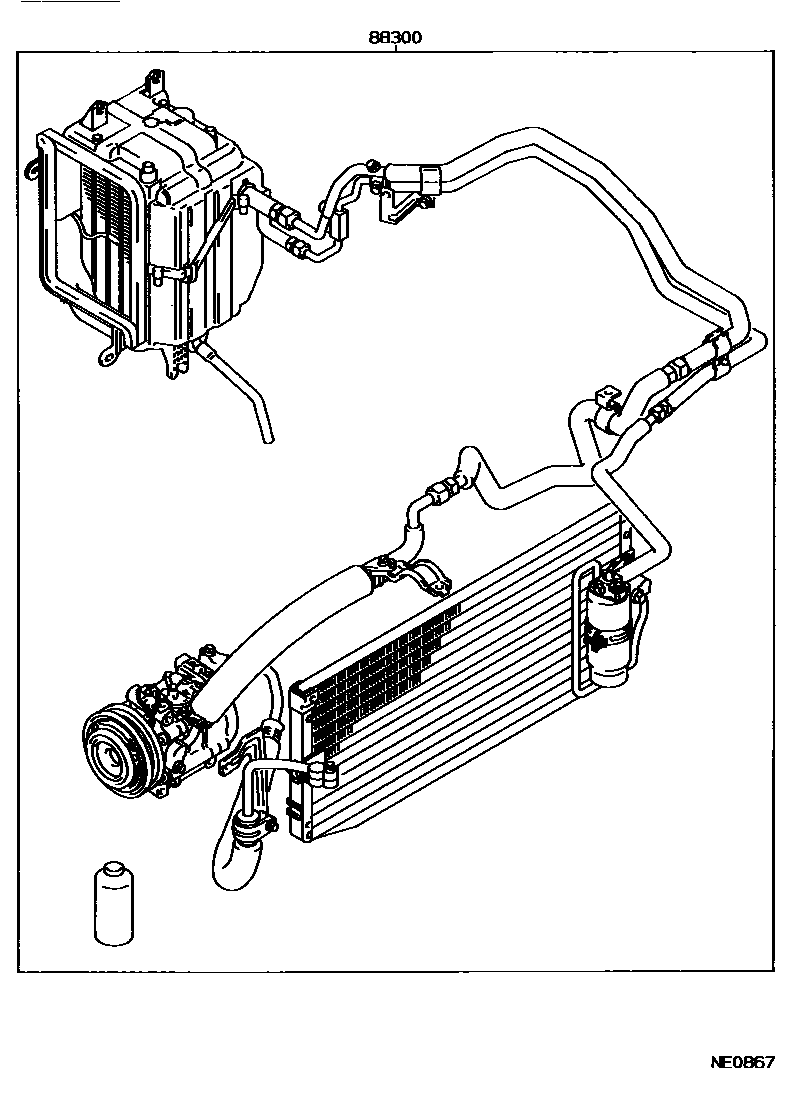

Parts diagram
88300COOLER & ACCESSORY ASSY
main88300-1L531i198810-198908
W(POWER STEERING)
main88300-1L532i198908-199206
W(POWER STEERING)
main88300-1L541i198810-199206
W(POWER STEERING) & W/O(HEATER)
main88300-1L551i198810-198908
main88300-1L552i198908-199206
main88300-1L561i198810-199206
W/O(HEATER)
main88300-1L571i198810-198908
W(POWER STEERING)
main88300-1L572i198908-199206
W(POWER STEERING)
main88300-1L581i198810-198908
W(POWER STEERING) & W/O(HEATER)
main88300-1L590i198705-198712
main88300-1L591i198810-198908
main88300-1L592i198908-199206
main88300-1L601i198908-199206
W/O(HEATER)
main88300-1L611i198812-198908
main88300-1L612i198908-199106
main88300-1L632i198908-199106
main88300-1L651i198810-198908
W(POWER STEERING)
main88300-1L652i198908-199205
W(POWER STEERING)
main88300-1L661i198810-198908
W(POWER STEERING) & W/O(HEATER)
main88300-1L662i198908-199205
W(POWER STEERING) & W/O(HEATER)
main88300-1L671i198810-198908
main88300-1L672i198908-199205
main88300-1L681i198810-198908
W/O(HEATER)
main88300-1L682i198908-199205
W/O(HEATER)
main88300-1L691i198810-198908
W(POWER STEERING)
main88300-1L701i198810-198908
W(POWER STEERING) & W/O(HEATER)
main88300-1L711i198810-198908
main88300-1L721i198810-198908
W/O(HEATER)
main88300-1N320i198803-198812
main88300-1N321i198812-198908
W(HEATER)
main88300-1N322i198908-199106
W(HEATER)
main88300-1N330i198712-198803
main88300-1N340i198712-198812
W(HEATER)
main88300-1N341i198812-198908
W(HEATER)
main88300-1N342i198908-199206
W(HEATER)
main88300-1N350i198712-198812
W(BOOST VENTILATOR)
main88300-1N351i198812-199206
main88300-1N360i198712-198812
W(POWER STEERING & HEATER)
main88300-1N361i198812-198908
W(POWER STEERING & HEATER)
main88300-1N362i198908-199206
W(POWER STEERING & HEATER)
main88300-1N370i198712-198812
W(POWER STEERING & BOOST VENTILATOR)
main88300-1N371i198812-199206
W(POWER STEERING & BOOST VENTILATOR)
main88300-1N380i198712-198803
W(HEATER)
main88300-1N381i198812-198908
main88300-1N382i198908-199106
W(HEATER)
main88300-1N390i198712-198803
main88300-1N400i198712-198812
W(HEATER)
main88300-1N401i198812-198908
W(HEATER)
main88300-1N402i198908-199206
W(HEATER)
main88300-1N410i198808-198812
W(BOOST VENTILATOR)
main88300-1N411i198812-199206
W(BOOST VENTILATOR)
main88300-1N420i198712-198812
W(POWER STEERING & HEATER)
main88300-1N421i198812-198908
W(POWER STEERING & HEATER)
main88300-1N422i198908-199206
W(POWER STEERING & HEATER)
main88300-1N430i198712-198812
W(POWER STEERING & BOOST VENTILATOR)
main88300-1N431i198812-199206
W(POWER STEERING & BOOST VENTILATOR)
main88300-1N510i198810-198908
main88300-1N520i198810-198908
W/O(HEATER)

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota COROLLA CP/HB

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota COROLLA CP/HB. Key components include: COOLER & ACCESSORY ASSY.
