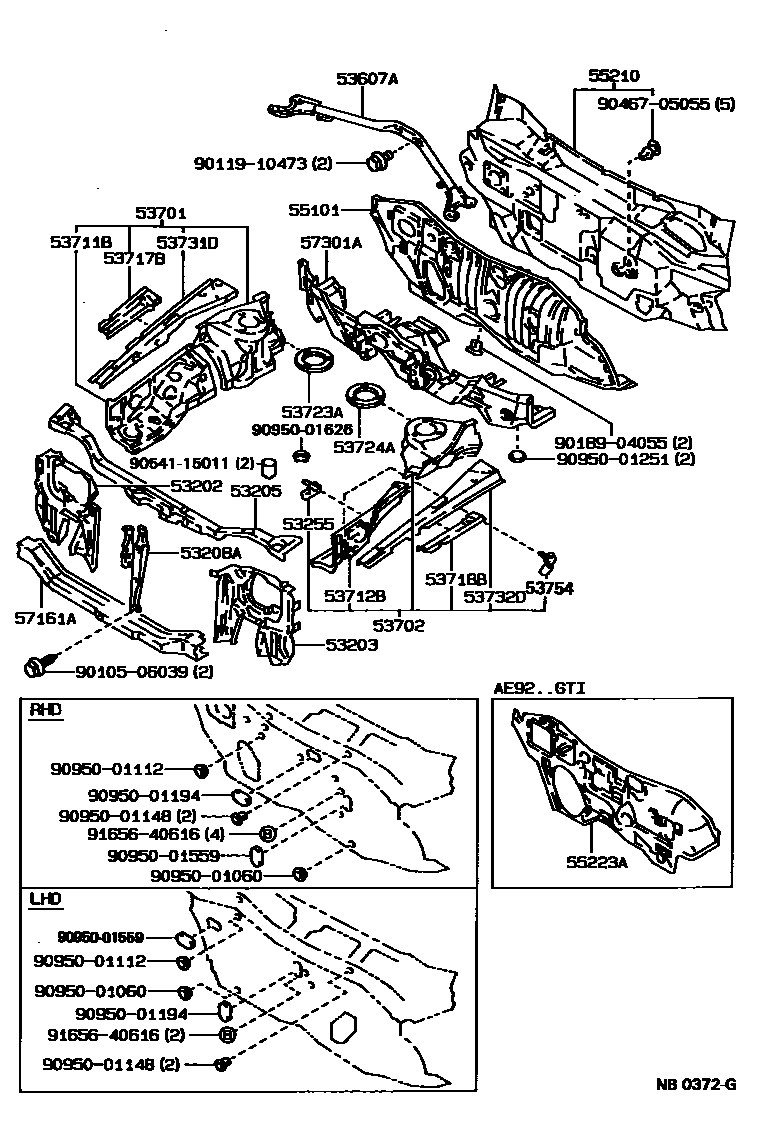

Toyota COROLLA CP/HB — FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53255BRACKET, RELAY BOX MOUNTING
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717BGUSSET, FENDER APRON, RH
53718BGUSSET, FENDER APRON, LH
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
ROUGH ROAD PACKAGE 2
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
ROUGH ROAD PACKAGE 2
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53754BRACKET, RELAY BOX MOUNTING, NO.2
55101PANEL SUB-ASSY, DASH
W(FOOT REST)
NEW ZEALAND SPEC
W(FOOT REST)
W(FOOT REST)
NEW ZEALAND SPEC & W(FOOT REST)
NEW ZEALAND SPEC
NEW ZEALAND SPEC
NEW ZEALAND SPEC
NEW ZEALAND SPEC & W(FOOT REST)
W(FOOT REST)
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
57161AMEMBER, FRONT CROSS, FRONT W/REAR
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
9010506039
main90105-06039
9011910473
main90119-10473
9018904055
main90189-04055
9046705055
main90467-05055
9054115011
main90541-15011
9095001060
main90950-01060
9095001112
main90950-01112
9095001148
main90950-01148
9095001194
main90950-01194
9095001251
main90950-01251
9095001559
main90950-01559
9095001626
main90950-01626
9165640616
main91656-40616
35 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota COROLLA CP/HB
This section contains 35 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota COROLLA CP/HB. Key components include: SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK, BRACKET, RELAY BOX MOUNTING.
