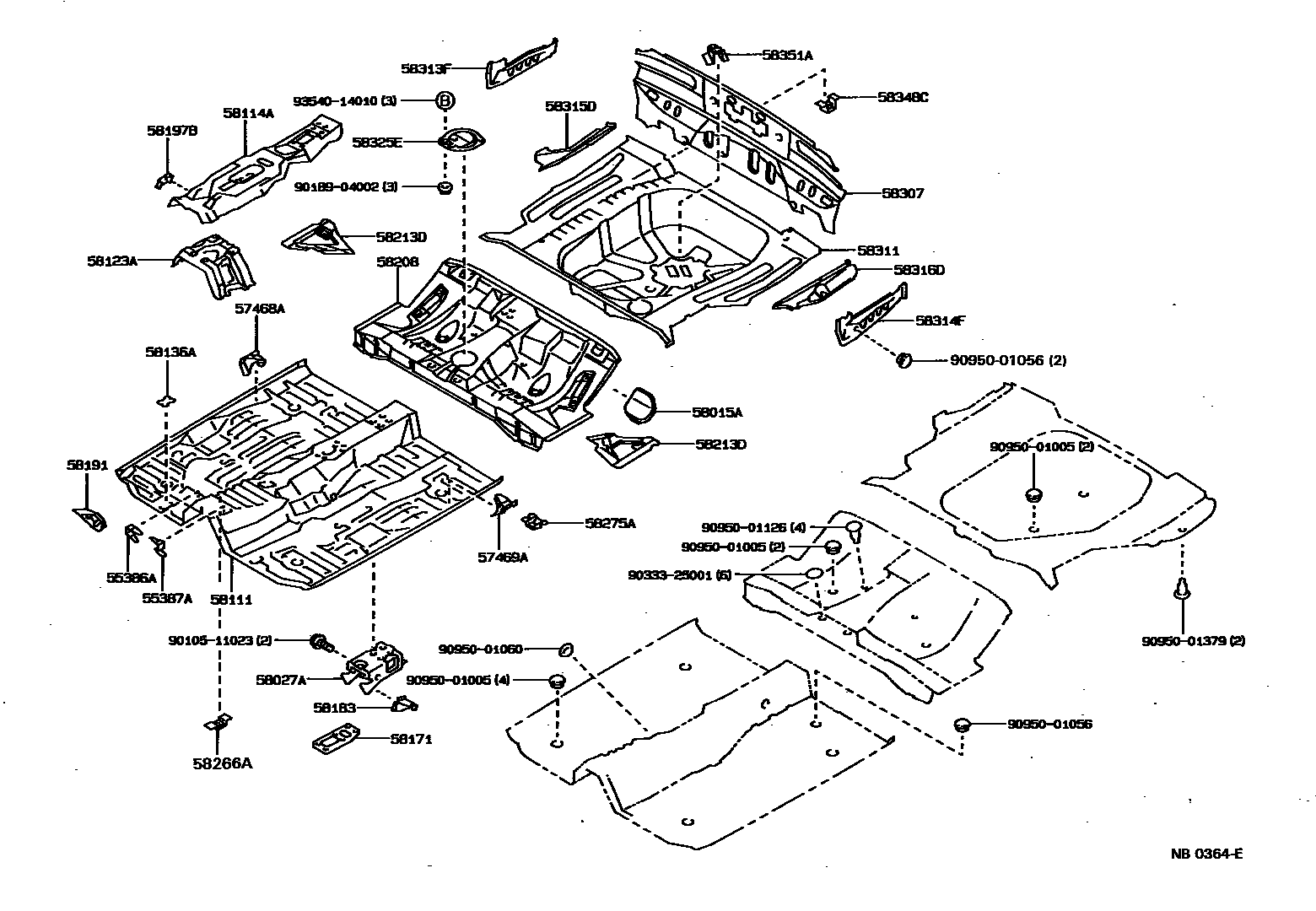

Toyota COROLLA CP/HB — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55386ABRACKET, COMPUTER MOUNTING, NO.1

main55386-12040iEE90..3FC..GCC;AE92,EE90..GEN,SA198705-198908

55387ABRACKET, COMPUTER MOUNTING, NO.2

main55387-12020iAE92,EE90198908-199308

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-12030iEE90..3FC..GCC;AE92,EE90..GEN,SA198705-198908

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-12030iEE90..3FC..GCC;AE92,EE90..GEN,SA198705-198908

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12020×2iAE92,EE90..3D,5D198705-199308

main58015-12030×2iAE92..XL..GEN198705-199106

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12030iEE90..3FC..GCC;AE92,EE90..GEN,SA198705-198905

main58027-12060iAE92,EE90..SA199008-199308

main58027-12100iAE92,EE90..SA199008-199308

58111PAN, FRONT FLOOR

main58111-12200iAE92,EE90..SA198908-199106

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12050iEE90..3FC..GCC;AE92,EE90..GEN,SA198705-198908

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-12040iAE92,EE90198908-199308

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iEE90..3FC..GCC;AE92,EE90..GEN,SA198905-198908

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12080iAE92,EE90198908-199308

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-12090iEE90..3FC..GCC;AE92,EE90..GEN,SA198705-198908

RH

main58184-12110iEE90..3FC..GCC;AE92,EE90..GEN,SA198705-198908

LH

58191FOOTREST, FRONT FLOOR

main58191-12100iEE90..XL..SA;AE92..RHD..5F;EE90..RHD..GEN199108-199308

main58192-12040iAE92,EE90..LHD..(3D,5D)..GEN198709-199206

main58192-12050iAE92,EE90..LHD..(3D,5D)..GEN198705-198709

58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET

main58197-12010×2iEE90..3FC..GCC;AE92,EE90..GEN,SA198705-198908

58208PAN, CENTER FLOOR

main58211-12170iAE92,EE90..3D,5D198705-199308

W(SEAT BELT HOLE)

main58211-12200iAE92..XL..GEN198705-199106

main58211-12220iAE92..XL198705-198808

W(SEAT BELT HOLE)

main58211-12270iAE92,EE90..3D,5D198705-199308

W(SEAT BELT HOLE)

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-12020iAE92,EE90..3D,5D198705-199308

RH

main58213-12030iAE92..XL..GEN198705-199106

RH

main58214-12010iAE92,EE90..3D,5D198705-199308

LH

main58214-12020iAE92..XL..GEN198705-199106

LH

58266ABRACKET, FUEL TUBE CLAMP

main58266-22040iAE92,EE90198705-199308

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-12030×2iAE92..XL..GEN198705-199106

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A070iAE92,EE90..3D,5D198908-198910

main58307-1A071iAE92,EE90..3D,5D198910-199308

main58307-1A081iAE92..XL..GEN198910-199106

main58307-1A101iAE92..XL..GEN198705-198910

58311PAN, REAR FLOOR

main58311-12120iAE92..XL..GEN198705-199106

main58311-12180iAE92,EE90..3D,5D198705-199308

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12210iAE92..XL..GEN198705-199106

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-12210iAE92..XL..GEN198705-199106

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12030iAE92..XL..GEN198705-199106

main58315-12040iAE92,EE90..3D,5D198705-199308

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12030iAE92..XL..GEN198705-199106

main58316-12040iAE92,EE90..3D,5D198705-199308

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12020iAE92,EE90..3D,5D198705-199308

main58325-12040iAE92..XL..GEN198705-199106

58348CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-12010iAE92..XL..GEN198705-199106

58351ABRACKET, SPARE WHEEL CARRIER

main58351-12020iAE92..XL..GEN198705-199106

main58351-12030iAE92,EE90..3D,5D198705-199308

9010511023

main90105-11023

9018904002

main90189-04002

9033325001

main90333-25001

9095001005

main90950-01005

9095001056

main90950-01056

9095001060

main90950-01060

9095001126

main90950-01126

9095001379

main90950-01379

9354014010

main93540-14010

36 parts on this diagram · 2 diagrams in section
