Toyota COROLLA CP/HB — ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-16010i198705-198908

28519BRACKET, SOLENOID RESISTOR

main28519-16030i198705-198908

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010i198705-199308

85910FRELAY, COMPUTER (FOR EFI)

main90987-02006i198705-199308

89279COVER, ENGINE CONTROL COMPUTER

main89279-12020i198708-198710

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-12010i198709-198908

main89420-12020i198705-198709

main89420-12040i198908-199308

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-12010i198705-198808

main89422-20010i198808-199308

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010i198705-198908

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040i198705-198903

NIPPONDENSO

main89452-12050i198705-198903

AISAN

89456RESISTOR, VARIABLE

main89456-12030i198705-199308

89462SWITCH, START INJECTOR TIME

main89462-12010i198705-198808

main89462-20030i198808-199308

89661COMPUTER, ENGINE CONTROL

main89661-12190i198705-198908

main89661-12590i198908-199109

main89661-12860i199109-199111

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12020i198705-199308

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12030i198705-199308

main89668-12040i198705-198908

9017906070

main90179-06070

9020112109

main90201-12109

9033906007

main90339-06007

9165540616

main91655-40616

9331915008

main93319-15008

9331915010

main93319-15010

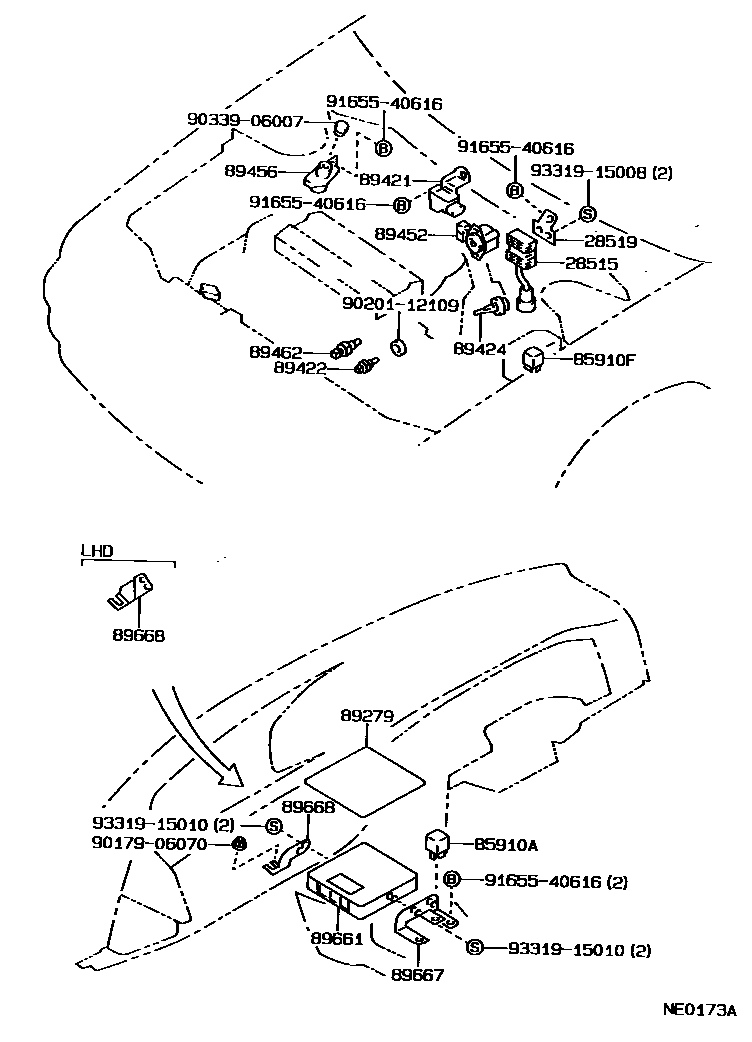

20 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota COROLLA CP/HB

This section contains 20 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COROLLA CP/HB. Key components include: RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), COVER, ENGINE CONTROL COMPUTER.
