Toyota COROLLA CP/HB — COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55077ACOVER SUB-ASSY, HEATER AIR DUCT HOLE
55701PANEL SUB-ASSY, COWL
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
55797ASEAL, COWL WATER EXTRACT
55877BCOVER, COWL VENT, RH
55878BCOVER, COWL VENT, LH
55879PACKING, FRONT VENTILATOR
55950NOZZLE ASSY, DEFROSTER
55967NOZZLE, DEFROSTER, LOWER
56111GLASS, WINDSHIELD
*TL,T=5.3
*ZT,T=5.0
*LAM,T=5.3
*TZT,T=5.0
*TL,T=5.3
*LAM,T=4.7
*TL,T=4.7
*TL,T=4.7
56115ASTOPPER, WINDSHIELD GLASS, NO.1
9016440072
main90164-40072
9018904121
main90189-04121
9018904128
main90189-04128
9018904132
main90189-04132
9046703002
main90467-03002
9046709079
main90467-09079
9046714007
main90467-14007
9356755016
main93567-55016

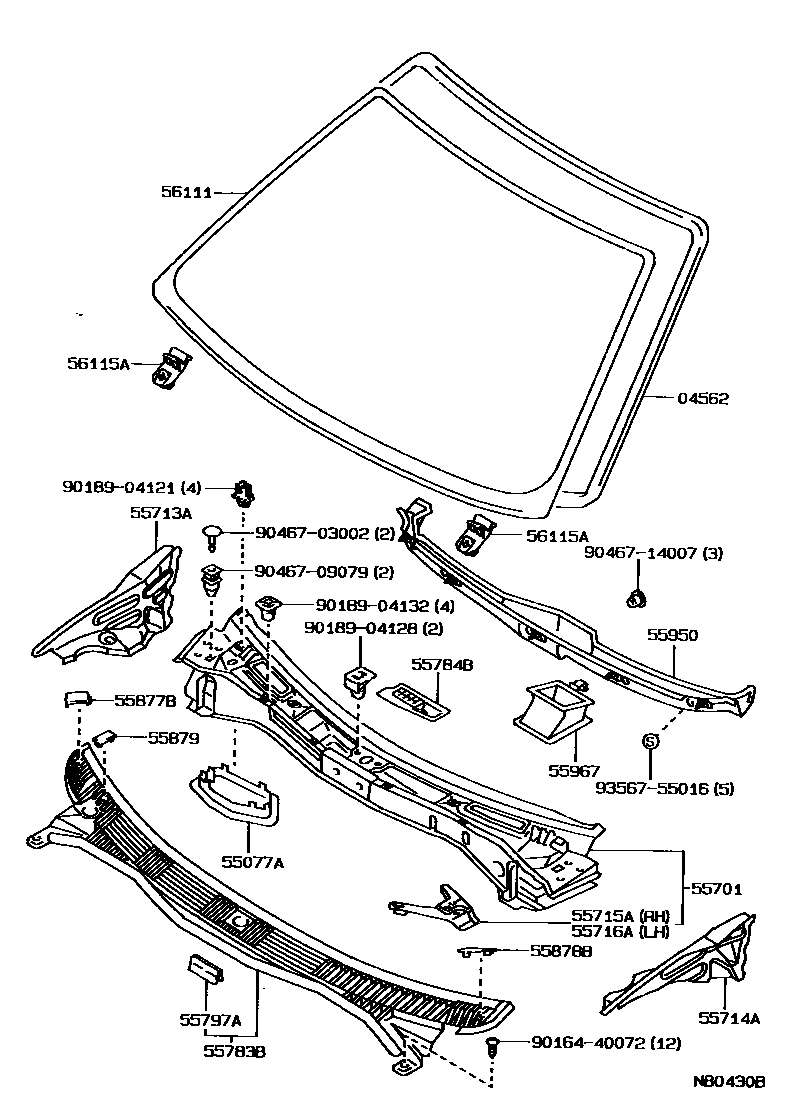

25 parts on this diagram · 2 diagrams in section
COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA CP/HB
This section contains 29 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA CP/HB. Key components include: DAM KIT, WINDSHIELD GLASS, COVER SUB-ASSY, HEATER AIR DUCT HOLE, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH.
