Toyota COROLLA CP/HB — CONSOLE BOX & BRACKET

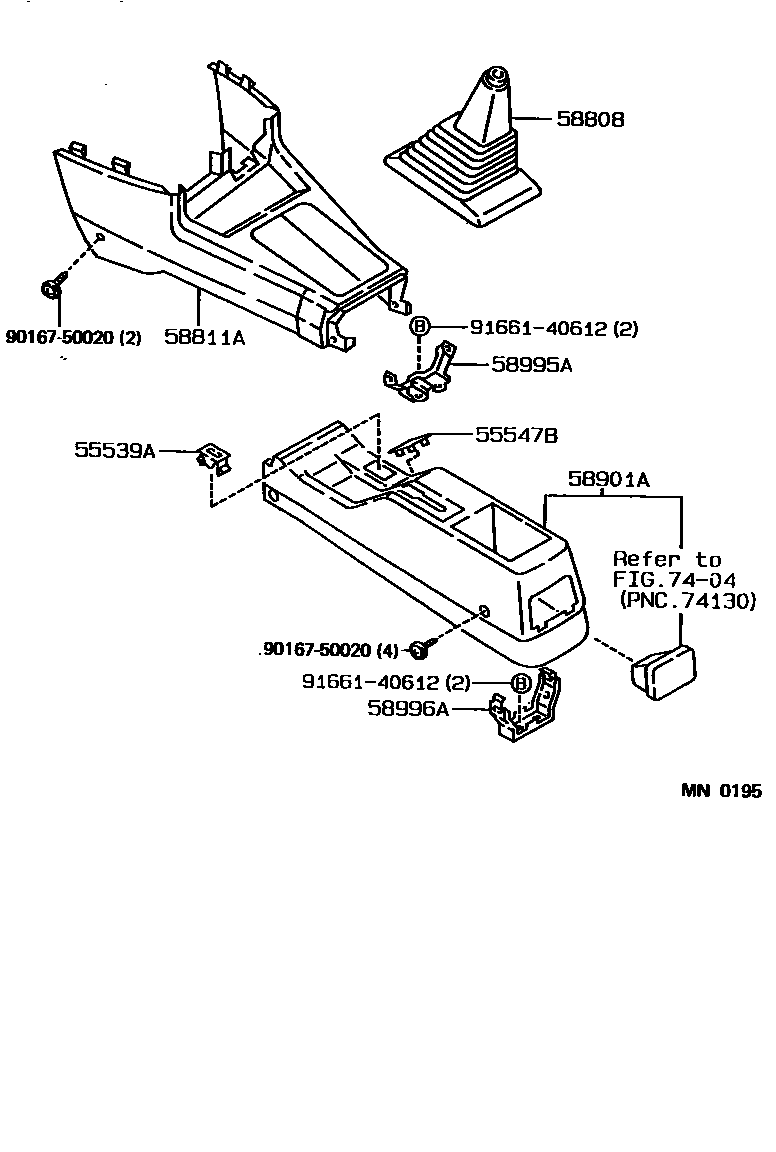

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-12070-03i198705-199308
SHADOW GRAY,TRIM1#,TYPE A
main55539-12070-04i198908-199206
DARK BLUE,TRIM8#,TYPE A
main55539-12070-05i198705-198908
DARK BEIGE,TRIM4#,TYPE A
main55539-20020-03i198908-199208
SHADOW GRAY,TRIM1#,TYPE B
main55539-20020-05i198705-198908
BEIGE,TRIM4#
main55539-20020-34i198705-198807
DARK BLUE,TRIM8#
main55539-20020-E0i198908-199308
BROWN,TRIM4#
main55539-20020-J0i198908-199207
DARK BLUE,TRIM8#
main55539-20020-P0i199208-199308
SHADOW GRAY,TRIM1#
main55539-20030-03i198705-199308
GRAY,TRIM1#,TYPE C
sub55539-32010
main55539-20030-05i198705-198908
DARK BEIGE,TRIM4#,TYPE C
sub55539-32010
main55539-20030-14i198705-198908
DARK BLUE,TRIM8#,TYPE C
sub55539-32010
55547BCOVER, REMOTE CONTROL MIRROR HOLE
main55547-20020-03i198705-199308
SHADOW GRAY,TRIM1#
main55547-20020-05i198705-198908
DARK BEIGE,TRIM4#
main55547-20020-14i198705-198908
DARK BLUE,TRIM8#
main55547-20020-16i198908-199308
BROWN,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-12090-01i198705-199308
BLACK,TRIM1#
main58808-12090-03i198705-198908
SHADOW GRAY,TRIM1#
main58808-12090-04i198705-198908
DARK BLUE,TRIM8#
main58808-12090-05i198705-198908
DARK BEIGE,TRIM4#
main58808-12090-06i198908-199308
BROWN,TRIM4#
58811ABOX, CONSOLE, FRONT
main58811-12390-03i198705-199009
SHADOW GRAY,TRIM1#
main58811-12390-04i198705-198811
DARK BLUE,TRIM8#
main58811-12390-05i198705-198908
DARK BEIGE,TRIM4#
main58811-12390-06i198908-198909
BROWN,TRIM4#
main58811-12390-13i198705-198908
SHADOW GRAY,TRIM1#
main58811-12390-B1i199009-199207
SHADOW GRAY,TRIM1#
main58811-12390-E0i198909-199207
BROWN,TRIM4#
main58811-12390-J0i198811-198908
DARK BLUE,TRIM8#
main58811-12400-03i198705-199308
SHADOW GRAY,TRIM1#
main58811-12400-04i198908-199206
DARK BLUE,TRIM8#
main58811-12400-05i198705-198908
DARK BEIGE,TRIM4#
main58811-12400-06i198908-199308
BROWN,TRIM4#
main58811-12400-13i198705-199308
SHADOW GRAY,TRIM1#
main58811-12410-03i198705-199106
SHADOW GRAY,TRIM1#
main58811-12410-04i198705-199106
DARK BLUE,TRIM8#
main58811-12410-05i198705-198908
DARK BEIGE,TRIM4#
main58811-12420-03i198705-199106
SHADOW GRAY,TRIM1#
main58811-12420-04i198705-199106
DARK BLUE,TRIM8#
main58811-12420-05i198705-198908
DARK BEIGE,TRIM4#
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-12140-03i198705-199009
SHADOW GRAY,TRIM1#
main58901-12140-04i198705-198811
DARK BLUE,TRIM8#
main58901-12140-05i198705-198908
DARK BEIGE,TRIM4#
main58901-12140-06i198908-198909
BROWN,TRIM4#
main58901-12140-B1i199009-199308
SHADOW GRAY,TRIM1#
main58901-12140-E0i198909-199308
BROWN,TRIM4#
main58901-12140-J0i198811-198908
DARK BLUE,TRIM8#
main58901-12150-03i198705-199009
SHADOW GRAY,TRIM1#
main58901-12150-04i198705-198908
DARK BLUE,TRIM8#
main58901-12150-05i198705-198908
DARK BEIGE,TRIM4#
main58901-12150-B1i199009-199308
SHADOW GRAY,TRIM1#
main58901-12150-J0i198910-199206
DARK BLUE,TRIM8#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-12060i198705-199308
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-12030i198705-199308
main58996-12050i198705-199308
7404
9016750020
main90167-50020
9166140612
main91661-40612

10 parts on this diagram · 2 diagrams in section
