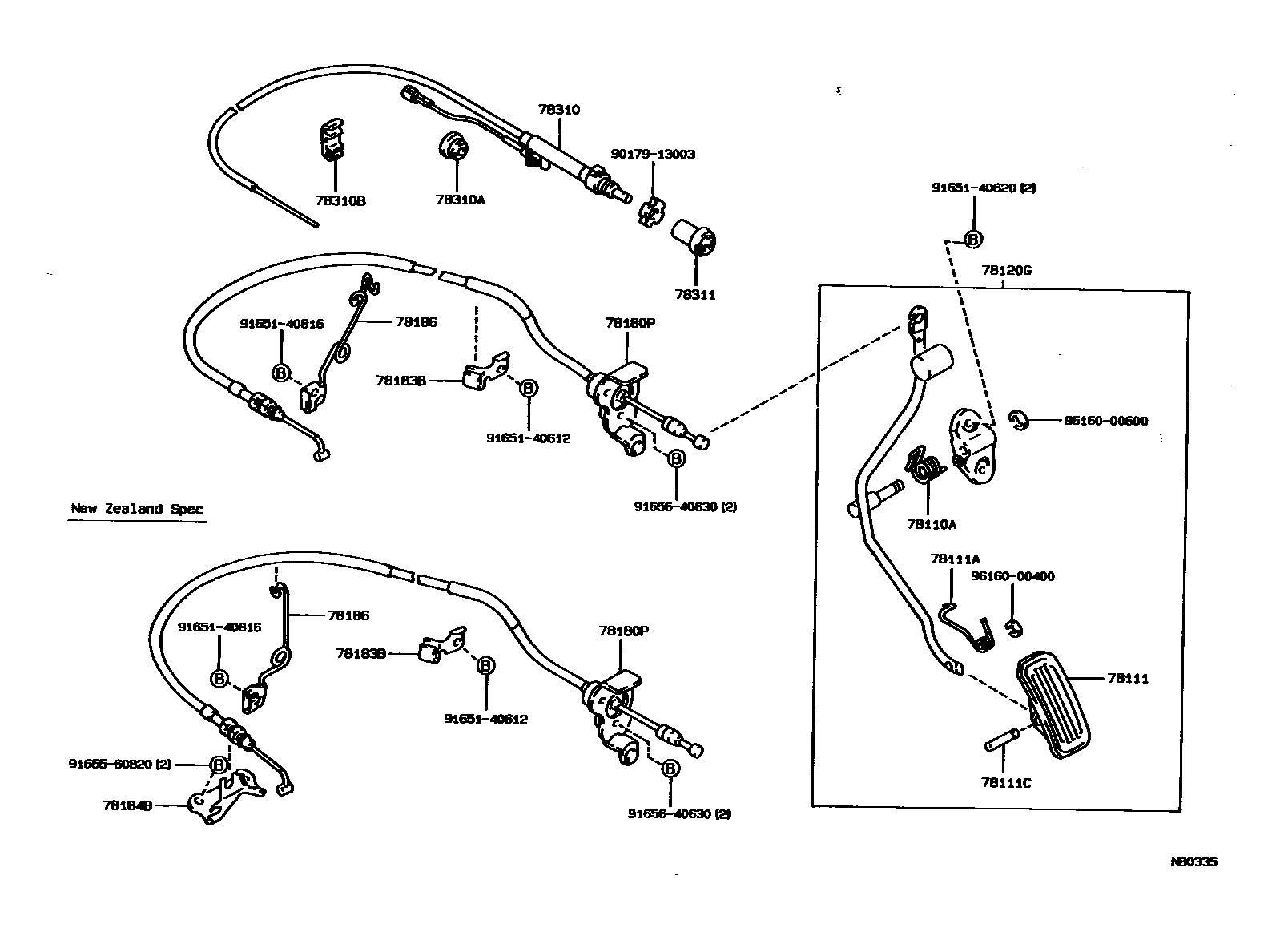

Toyota COROLLA CP/HB — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE92,EE90..GL,SR5,STD,XL198705-199108

main90508-26036iAE92..GT,GTI198705-199308

78111PEDAL, ACCELERATOR

main78111-32010iAE92,EE90198705-199108

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-20056iAE92,EE90198705-199108

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE92,EE90198705-199108

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12070iAE92..RHD..(GT,GTI)198705-199308

main78120-12080iAE92,EE90..RHD..(GL,STD,XL)198705-199308

main78120-12110iAE92..LHD..GTI198705-198908

main78120-12120iAE92,EE90..LHD..(GL,SR5,STD,XL)198705-199108

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-12780iAE92..RHD..(STD,XL)198705-198908

main78180-12781iAE92..RHD..(STD,XL)199008-199308

main78180-12840iEE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

sub78180-12841

main78180-12850iEE90..RHD198705-198908

main78180-12851iEE90..RHD199008-199308

main78180-1A010iAE92..LHD..(SR5,XL)198705-199207

main78180-1A030iAE92..LHD..GTI198705-198908

main78180-1A100iAE92..RHD..(GT,GTI)198705-199008

main78180-1A101iAE92..GT,GTI199008-199308

main78180-1A200iEE90..LHD198705-199207

main78180-1A320iEE90..RHD..5F..XL..GEN;EE90..RHD..(GL,STD)..GEN198908-199008

NEW ZEALAND SPEC

sub78180-1A321

main78180-1A500iEE90..RHD..GEN199110-199206

NEW ZEALAND SPEC

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12100iAE92,EE90..RHD198705-198908

TYPE A

main78183-12120iAE92..LHD..GTI198705-198908

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-10070iEE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main78184-12220iAE92..GT,GTI198705-199308

main78184-12230iAE92..SR5,STD,XL198705-199308

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12170iEE90..LHD198705-198908

main78186-12180iEE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main78186-12190iEE90..LHD198908-199207

TYPE B

main78186-12200iEE90..RHD198705-199308

main78186-12230iAE92..LHD..(SR5,XL)198705-199207

main78186-12240iAE92..LHD..GTI198705-198908

NO.1

main78186-12250iAE92..LHD..GTI198705-198908

NO.2

78310CABLE ASSY, CHOKE

main84506-12060iEE90..RHD198705-199308

main84506-12070iEE90..LHD198705-199207

78310AGROMMET, CHOKE CABLE

main90480-13055iEE90198705-199308

78310BCLAMP, CHOKE CABLE

main90464-00117iEE90198705-199308

78311KNOB, CHOKE CONTROL CABLE

main78311-12021iEE90198705-199308

9017913003

main90179-13003

9165140612

main91651-40612

9165140620

main91651-40620

9165140816

main91651-40816

9165560820

main91655-60820

9165640630

main91656-40630

9616000400

main96160-00400

9616000600

main96160-00600

21 parts on this diagram · 4 diagrams in section
