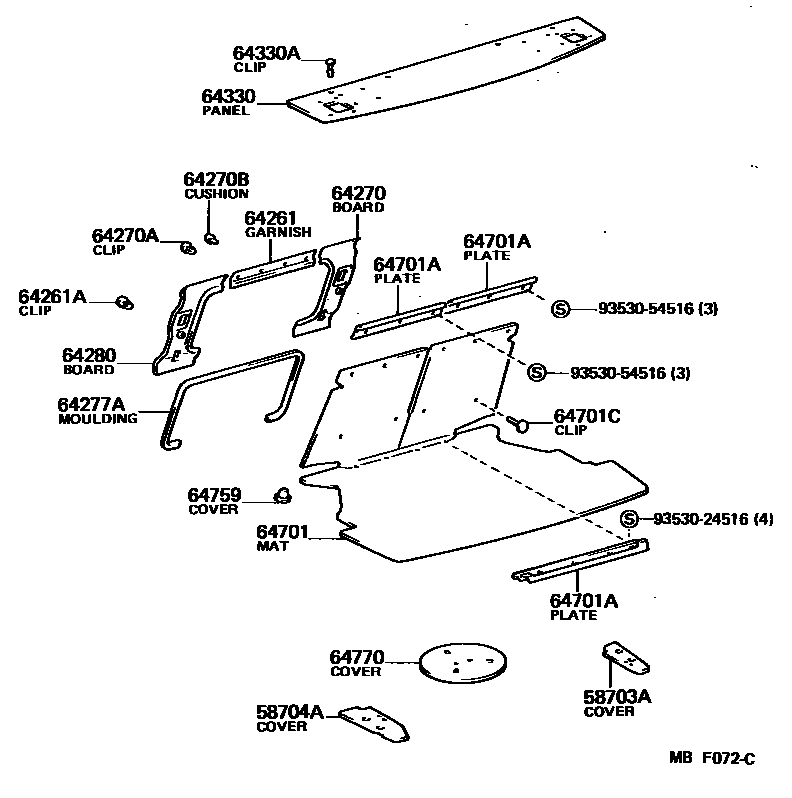

Toyota COROLLA COUPE — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-12010i198305-198704

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-12010i198305-198505

main58704-12011i198505-198704

64261GARNISH, ROOM PARTITION

main64261-12020-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64261-12020-04i198305-198505

BLUE,BLUE,TRIM8#

main64261-12021i198505-198704

64261ACLIP(FOR ROOM PARTITION GARNISH)

main90467-06017-12×2i198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main90467-06017-14×2i198305-198408

BLUE,BLUE,TRIM8#

main90467-06046×2i198408-198704

64270BOARD ASSY, ROOM PARTITION, RH

main64271-12080-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64271-12080-04i198305-198505

BLUE,BLUE,TRIM8#

main64271-12081i198505-198704

main64271-12090-02i198308-198505

*MT,DEEP MAROON,RED/MAROON,TRIM3#

main64271-12090-04i198308-198505

*MT,BLUE,BLUE,TRIM8#

main64271-12091i198505-198704

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-06017-12i198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main90467-06017-14i198305-198408

BLUE,BLUE,TRIM8#

main90467-06046i198408-198704

64270BCUSHION(FOR ROOM PARTITION BOARD)

main90541-09010×2i198305-198704

64277AMOULDING, ROOM PARTITION TRIM

main64277-12020-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64277-12020-04i198305-198505

BLUE,BLUE,TRIM8#

main64277-12021i198505-198704

64280BOARD ASSY, ROOM PARTITION, LH

main64272-12020-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64272-12020-04i198305-198505

BLUE,BLUE,TRIM8#

main64272-12021i198505-198704

main64272-12030-02i198308-198505

*MT,DEEP MAROON,RED/MAROON,TRIM3#

main64272-12030-04i198308-198505

*MT,BLUE,BLUE,TRIM8#

main64272-12031i198505-198704

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12470-01i198505-198704

BLACK,BLACK,TRIM2#

main64330-12470-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64330-12470-04i198305-198505

BLUE,BLUE,TRIM8#

main64330-12470-14i198505-198704

BLUE,BLUE,TRIM8#

main64330-12490-01i198505-198704

W/RR *ELR,BLACK,BLACK,TRIM2#

main64330-12490-02i198308-198505

W/RR *ELR,DEEP MAROON,MAROON,TRIM3#

main64330-12490-04i198308-198505

W/RR *ELR,BLUE,BLUE,TRIM8#

main64330-12490-14i198505-198704

W/RR *ELR,BLUE,BLUE,TRIM8#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-01i198505-198704

BLACK,BLACK,TRIM2#

main90467-08046-02×4i198308-198505

DEEP MAROON,RED/MAROON,TRIM3#

main90467-08046-04×4i198308-198704

BLUE,BLUE,TRIM8#

main90467-09144-12×4i198305-198308

DEEP MAROON,RED/MAROON,TRIM3#

main90467-09144-14×4i198305-198308

BLUE,BLUE,TRIM8#

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-12060i198308-198505

main64701-12110-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64701-12110-04i198305-198505

BLUE,BLUE,TRIM8#

main64701-12110-11i198505-198704

BLACK,BLACK,TRIM2#

main64701-12110-14i198505-198704

BLUE,BLUE,TRIM8#

64701ASET PLATE, LUGGAGE COMPARTMENT

main58573-12030-01×2i198505-198704

L=440,BLACK,BLACK,TRIM2#

main58573-12030-02×2i198305-198505

L=440,DEEP MAROON,RED/MAROON,TRIM3#

main58573-12030-04×2i198305-198505

L=440,BLUE,BLUE,TRIM8#

main58573-12040i198305-198505

L=632

64701CCLIP(FOR LUGGAGE COMPARTMENT MAT)

main90467-06016-01×4i198505-198704

BLACK,BLACK,TRIM2#

main90467-06016-04×4i198305-198505

BLUE,BLUE,TRIM8#

main90467-06016-22×4i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

64759COVER, SHOCK ABSORBER HEAD

main58731-22020-03×2i198305-198704

GRAY,GRAY,TRIM2#

64770COVER ASSY, SPARE WHEEL

main64770-12030i198305-198704

main64770-12090i198505-198704

9353024516

main93530-24516

9353054516

main93530-54516

18 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota COROLLA COUPE

This section contains 18 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota COROLLA COUPE. Key components include: COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, GARNISH, ROOM PARTITION, CLIP(FOR ROOM PARTITION GARNISH), BOARD ASSY, ROOM PARTITION, RH.
