Toyota COROLLA COUPE — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12200-01i198505-198509

BLACK,BLACK,TRIM2#

main87810-12200-02i198305-198505

MAROON,RED/MAROON,TRIM3#

main87810-12200-04i198305-198509

BLUE,BLUE,TRIM8#

main87810-12200-12i198505-198509

MAROON,MAROON,TRIM3#

main87810-12220-01i198505-198607

BLACK,BLACK,TRIM2#

main87810-12220-02i198308-198505

MAROON,RED/MAROON,TRIM3#

main87810-12220-04i198308-198509

BLUE,BLUE,TRIM8#

main87810-12220-14i198509-198607

BLUE,BLUE,TRIM8#

main87810-12221-01i198607-198704

BLACK,BLACK,TRIM2#

main87810-12221-14i198607-198704

BLUE,BLUE,TRIM8#

main87810-20200-01i198509-198707

BLACK,BLACK,TRIM2#

main87810-20200-04i198509-198707

BLUE,BLUE,TRIM8#

main87810-20200-12i198509-198707

MAROON,MAROON,TRIM3#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-02i198305-198505

MAROON,RED/MAROON,TRIM3#

main87834-20080-11i198505-198707

BLACK,BLACK,TRIM2#

main87834-20080-12i198505-198707

MAROON,MAROON,TRIM3#

main87834-20080-24i198305-198707

BLUE,BLUE,TRIM8#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-12650i198305-198505

main87910-12700i198305-198607

main87910-12701i198607-198704

main87910-12710i198305-198607

main87910-12711i198607-198707

87918KNOB, CONTROL OUTER MIRROR

main87918-12030×2i198305-198707

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12780i198305-198607

main87940-12781i198607-198704

main87940-12790i198305-198607

main87940-12791i198607-198707

main87940-12820i198305-198505

9015940098

main90159-40098

9015950016

main90159-50016

9331915016

main93319-15016

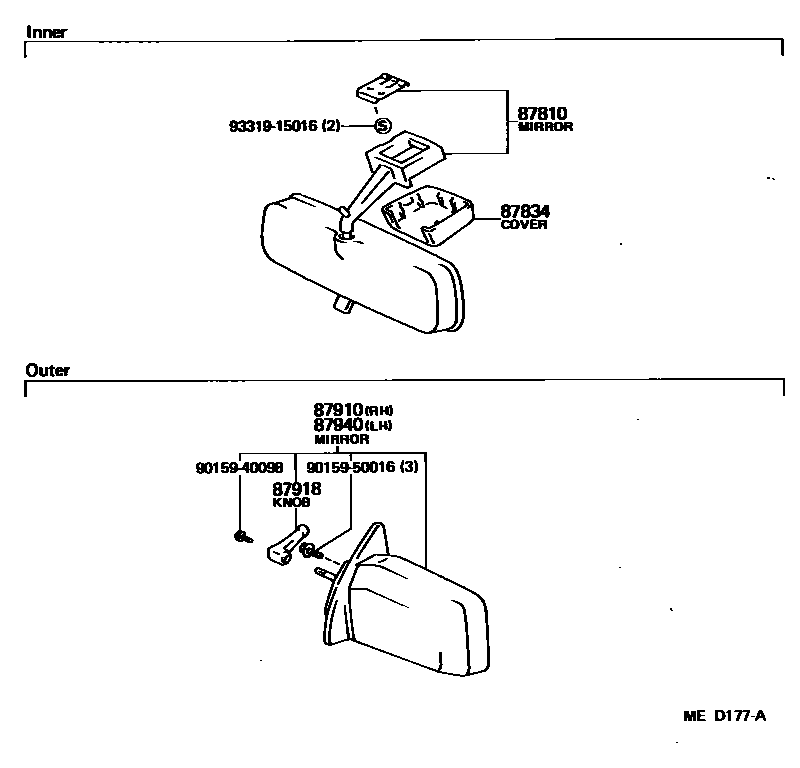

8 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA COUPE

This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota COROLLA COUPE. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, KNOB, CONTROL OUTER MIRROR, MIRROR ASSY, OUTER REAR VIEW, LH.
