Toyota COROLLA COUPE — METER

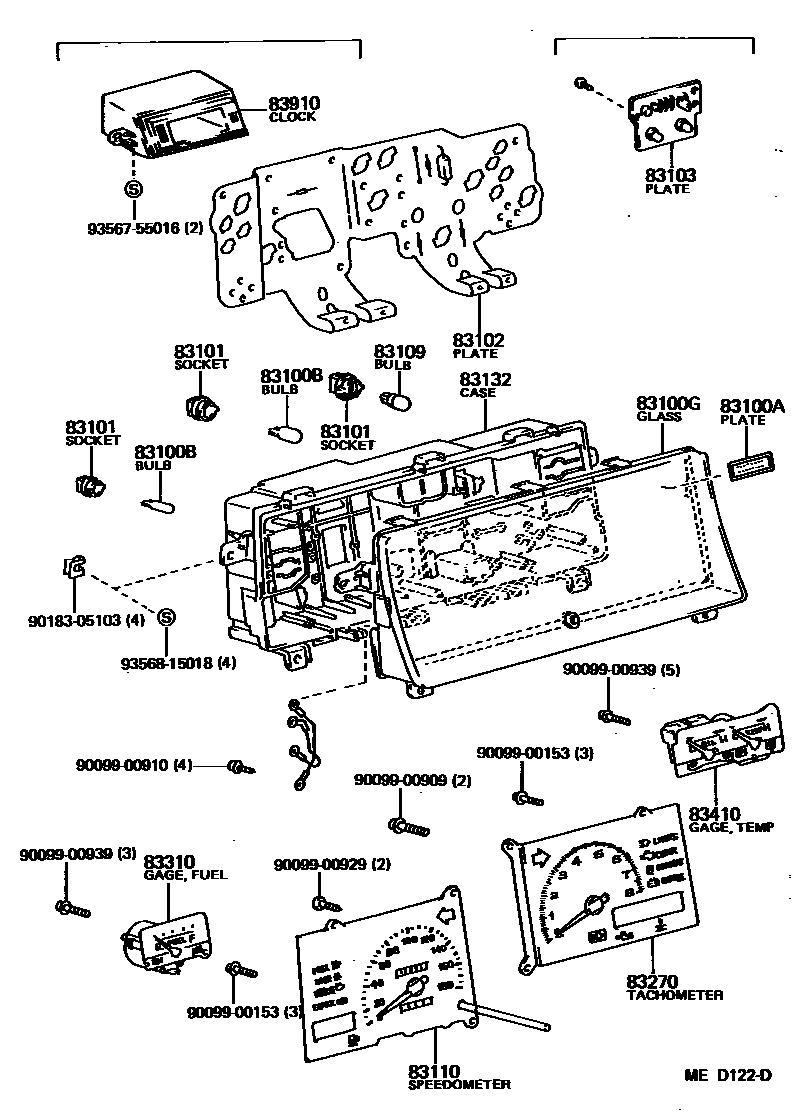

Parts diagram

83100APLATE, CAUTION

main74559-20030i198505-198704

83100BBULB, COMBINATION METER, NO.1

main90981-11018i198305-198707

12V 1.2W W/O SOCKET

main99132-12034i198305-198707

12V 3.4W

83100GGLASS, COMBINATION METER

main83133-12710i198305-198704

main83133-12730i198305-198707

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030i198305-198707

BULB=12V 3.4W

main83101-14040i198305-198707

BULB=12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1E270i198305-198704

main83247-1E290i198305-198505

main83247-1E310i198308-198704

main83247-1E350i198308-198704

main83247-1E370i198308-198502

main83247-1E390i198308-198704

main83247-1E410i198305-198704

main83247-1E430i198308-198707

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-32190i198308-198704

83109BULB, COMBINATION METER, NO.2

main83109-12010i198505-198707

12V 3.4W,BLUE CAP

main83109-24030i198305-198408

12V3.4W W(GREEN CAP),*ME

main83109-24030i198305-198505

12V3.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-1A260i198305-198505

KM

main83110-1A261i198505-198704

KM

main83110-1A270i198305-198505

MILE & KM

main83110-1A271i198505-198704

MILE & KM

main83110-1A280i198308-198505

KM

main83110-1A281i198505-198704

KM

main83110-1A290i198308-198505

MILE & KM

main83110-1A291i198505-198704

MILE & KM

main83110-1A300i198305-198505

KM

main83110-1A330i198308-198502

KM

main83110-1A340i198308-198505

KM

main83110-1A341i198505-198704

KM

main83110-1A350i198305-198505

KM

main83110-1A351i198505-198704

KM

main83110-1A360i198305-198505

MILE & KM

main83110-1A361i198505-198704

MILE & KM

main83110-1A370i198308-198505

KM

main83110-1A371i198505-198704

KM

main83110-1A380i198308-198505

MILE & KM

main83110-1A381i198505-198704

MILE & KM

main83110-1A390i198308-198505

KM

main83110-1A391i198505-198707

KM

83132CASE, COMBINATION METER

main83132-12630i198308-198502

main83132-12650i198308-198704

W/INDICATOR LENS

main83132-12670i198305-198704

W/INDICATOR LENS

main83132-12690i198308-198707

W/INDICATOR LENS

main83132-12770i198308-198704

W/INDICATOR LENS

main83132-12790i198305-198704

W/INDICATOR LENS

83270TACHOMETER ASSY, ENGINE

main83242-12790i198305-198505

main83242-12791i198505-198704

main83242-12810i198308-198505

main83242-12811i198505-198704

main83242-12830i198305-198505

main83242-12870i198308-198502

main83242-12890i198308-198505

main83242-12891i198505-198704

main83242-1A010i198305-198505

main83242-1A011i198505-198704

main83242-1A030i198308-198505

main83242-1A031i198505-198707

83310GAGE ASSY, FUEL RECEIVER

main83243-12650i198305-198505

main83243-12670i198305-198505

main83243-12671i198505-198704

main83243-12710i198305-198505

main83243-12711i198505-198704

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1A070i198305-198308

main83244-1A090i198308-198505

main83244-1A091i198505-198704

main83244-1A130i198308-198505

main83244-1A131i198505-198704

main83244-1A150i198310-198408

*ME

main83244-1A150i198310-198505

main83244-1A151i198505-198707

main83244-1A190i198305-198505

main83244-1A191i198505-198704

main83244-1A210i198305-198505

main83244-1A210i198308-198310

*ME

main83244-1A211i198505-198704

main83244-1A230i198305-198408

*ME

main83244-1A290i198308-198505

83910CLOCK ASSY

main83910-12350i198305-198505

main83910-12351i198505-198707

9009900153

main90099-00153

9009900909

main90099-00909

9009900910

main90099-00910

9009900929

main90099-00929

9009900939

main90099-00939

9018305103

main90183-05103

9356755016

main93567-55016

9356815018

main93568-15018

21 parts on this diagram · 2 diagrams in section

METER for Toyota COROLLA COUPE

This section contains 32 genuine Toyota parts for the METER system of the Toyota COROLLA COUPE. Key components include: PLATE, CAUTION, BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1.
