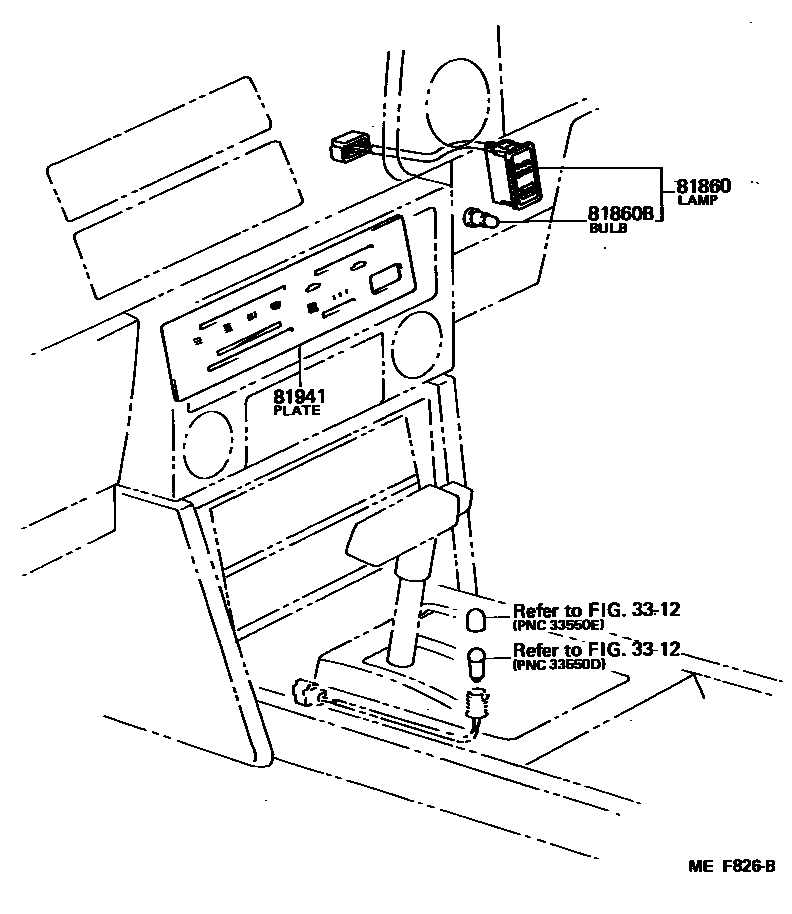

Toyota COROLLA COUPE — INDICATOR

3312

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-12050iAE86..4FC198505-198704

W/OVER DRIVE

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110×2iAE86..4FC198505-198704

12V 1.12W,12V 1.1W

81941PLATE, HEATER CONTROL NAME

main55519-12020iAE86..RHD198305-198505

W/HEATER

main55519-12021iAE86..RHD198505-198704

W/HEATER

main55519-12030iAE86..LHD198305-198408

W/HEATER

main55519-12031iAE86..LHD198408-198505

W/HEATER

main55519-12032iAE86..LHD198505-198707

W/HEATER

main55519-12040iAE86..LHD..GEN198305-198408

W/*BV

main55519-12041iAE86..LHD..GEN198408-198505

W/*BV

main55519-12042iAE86..LHD..(GEN,ME)198505-198707

W/*BV

main55519-12060iAE86..LHD..EUG198308-198505

W/O HEATER

main55519-12061iAE86..GEN198505-198704

W/O HEATER OR *BV

main55519-12070iAE86..LHD..(GEN,ME)198408-198505

W/HEATER & COOLER

main55519-12071iAE86..LHD..(GEN,ME)198505-198707

W/HEATER & COOLER

4 parts on this diagram · 1 diagram in section
