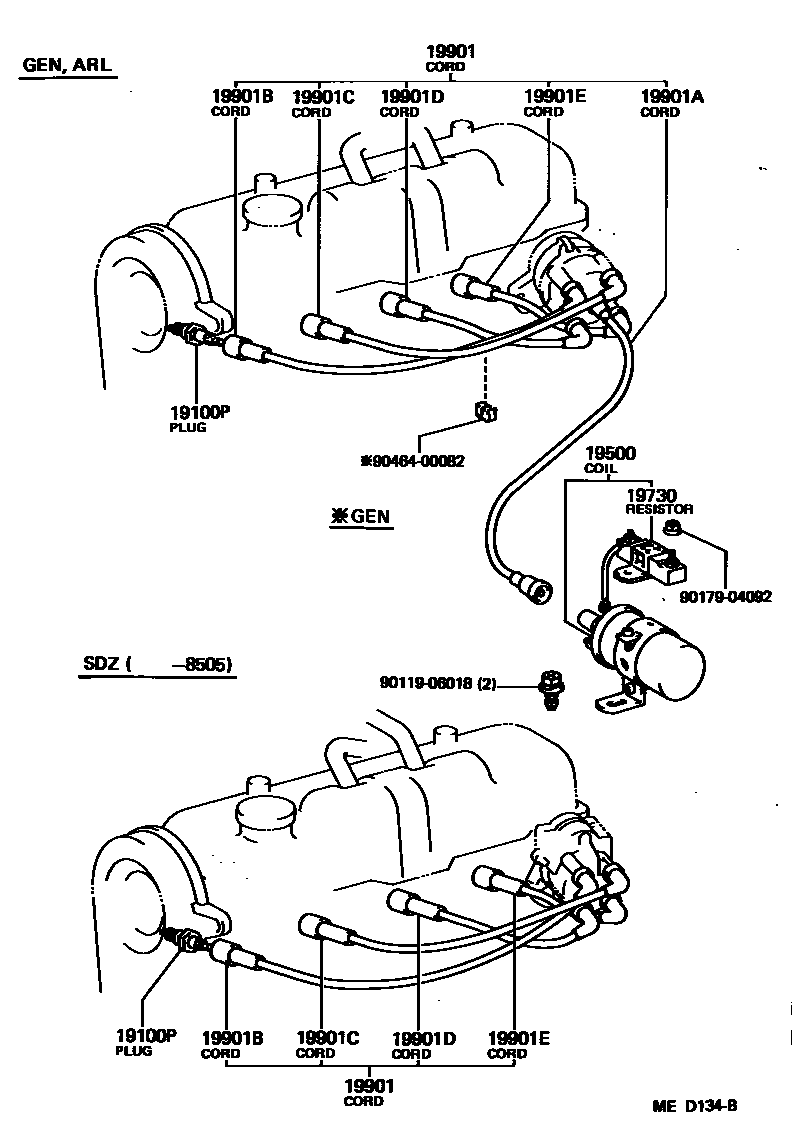

Toyota COROLLA COUPE — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01059×4i198305-198505

W16EX-U,W16EX-U

main90919-01064×4i198308-198502

W16EXR-U,W16EXR-U

main90919-01121×4i198504-198505

PQ16R,PQ16R,FRG SPEC

main90919-01131×4i198308-198707

Q20R-U11,Q20R-U11

19500COIL ASSY, IGNITION

main90919-02113i198308-198707

main90919-02151i198305-198704

19730RESISTOR, IGNITION COIL

main90919-04033i198305-198704

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21328i198308-198505

main90919-21330i198305-198704

main90919-21374i198505-198707

main90919-22105i198308-198502

19901ACORD, COIL RESISTIVE

main90919-13189i198308-198505

main90919-13221i198305-198704

main90919-13250i198505-198707

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12356i198308-198502

main90919-12502i198308-198707

main90919-12506i198305-198704

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12357i198308-198502

main90919-12503i198308-198707

main90919-12507i198305-198704

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12358i198308-198502

main90919-12504i198308-198707

main90919-12508i198305-198704

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12359i198308-198502

main90919-12505i198308-198707

main90919-12509i198305-198704

9011906018

main90119-06018

9017904092

main90179-04092

9046400082

main90464-00082

12 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA COUPE

This section contains 13 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA COUPE. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, RESISTOR, IGNITION COIL, CORD SET, COIL & SPARK, W/RESISTIVE, CORD, COIL RESISTIVE.
