Toyota COROLLA COUPE — ELECTRONIC FUEL INJECTION SYSTEM
28515RESISTOR, SOLENOID
FRG SPEC
28519BRACKET, SOLENOID RESISTOR
FRG SPEC
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85915ARELAY, MAIN
NO.2
NO.1; NO.1 & NO.2
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89456RESISTOR, VARIABLE
89462SWITCH, START INJECTOR TIME
89661COMPUTER, ENGINE CONTROL
FRG SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
FRG SPEC
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
89681COMPUTER ASSY, IDLE-UP
9011906234
main90119-06234
9011908413
main90119-08413
9020112109
main90201-12109
9033906007
main90339-06007
9043012005
main90430-12005
9043016242
main90430-16242
9165140612
main91651-40612
9165640616
main91656-40616
9331915008
main93319-15008
9331915010
main93319-15010

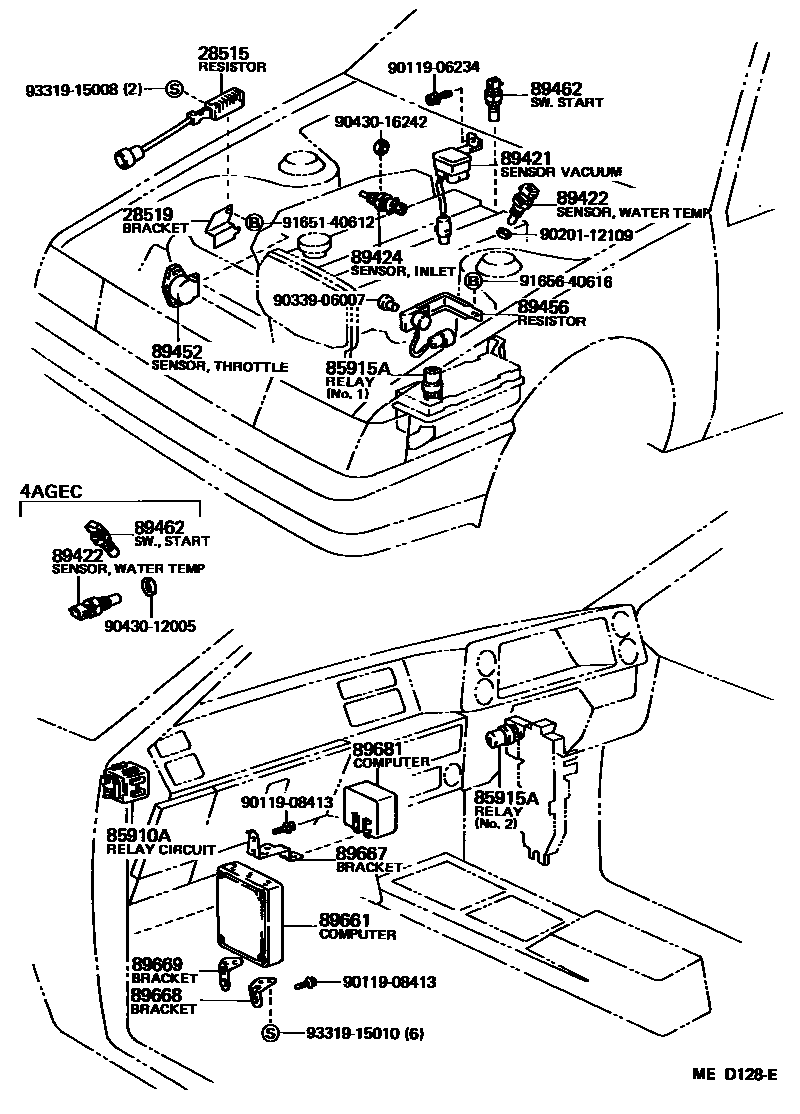

25 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota COROLLA COUPE
This section contains 25 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COROLLA COUPE. Key components include: RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, MAIN, SENSOR ASSY, VACUUM (FOR E.F.I.).
