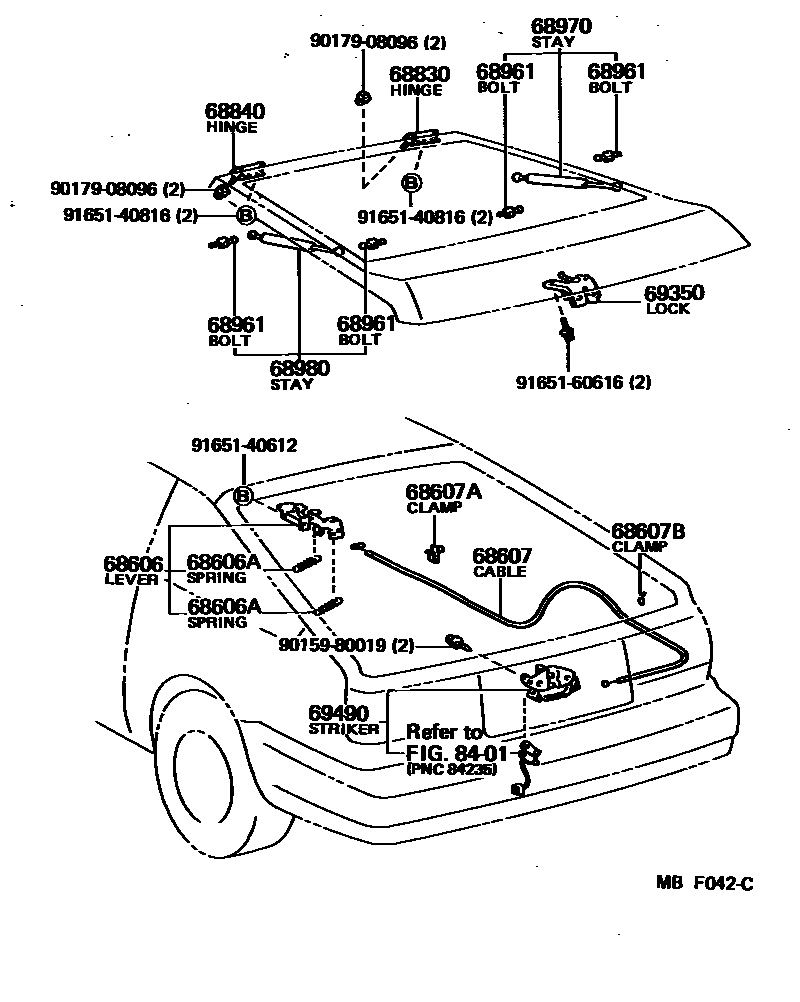

Toyota COROLLA COUPE — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68607BCLAMP, NO.2(FOR BACK DOOR LOCK CONTROL CABLE)
68830HINGE ASSY, BACK DOOR, RH
68840HINGE ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
68970STAY ASSY, BACK DOOR, RH
W/RR WIPER
W/SPOILER
W/RR WIPER & SPOILER
68980STAY ASSY, BACK DOOR
W/RR WIPER
W/SPOILER
W/RR WIPER & SPOILER
69350LOCK ASSY, BACK DOOR
69490STRIKER ASSY, BACK DOOR LOCK
W/O TRUNK OPENER
W/TRUNK OPENER
8401SWITCH & RELAY & COMPUTER
9015980019
main90159-80019
9017908096
main90179-08096
9165140612
main91651-40612
9165140816
main91651-40816
9165160616
main91651-60616
18 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA COUPE
This section contains 18 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA COUPE. Key components include: LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE), CLAMP, NO.2(FOR BACK DOOR LOCK CONTROL CABLE).
