Toyota COROLLA COUPE — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-12070-01i198505-198704

BLACK,BLACK,TRIM2#

main74210-12070-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74210-12070-04i198305-198505

BLUE,BLUE,TRIM8#

main74210-12120-01i198505-198707

BLACK,BLACK,TRIM2#

main74210-12120-04i198505-198707

BLUE,BLUE,TRIM8#

main74250-14030-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74250-14030-04i198305-198505

BLUE,BLUE,TRIM8#

74220ARMREST ASSY, FRONT, LH

main74220-12030-01i198505-198704

BLACK,BLACK,TRIM2#

main74220-12030-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74220-12030-04i198305-198505

BLUE,BLUE,TRIM8#

main74220-12060-01i198505-198707

BLACK,BLACK,TRIM2#

main74220-12060-04i198505-198707

BLUE,BLUE,TRIM8#

main74250-14030-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74250-14030-04i198305-198505

BLUE,BLUE,TRIM8#

74223CAP, DOOR ARMREST, RH

main74223-12040-02×2i198308-198505

W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3#

main74223-12040-04×2i198308-198505

W/MOULDING TRIM,BLUE,BLUE,TRIM8#

main74223-12050-01i198505-198704

BLACK,BLACK,TRIM2#

main74223-12050-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74223-12050-04i198305-198505

BLUE,BLUE,TRIM8#

main74223-12060-01i198505-198707

BLACK,BLACK,TRIM2#

main74223-12060-04i198505-198707

BLUE,BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74223-12040-02×2i198308-198505

W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3#

main74223-12040-04×2i198308-198505

W/MOUDING TRIM,BLUE,BLUE,TRIM8#

main74223-12050-01i198505-198704

BLACK,BLACK,TRIM2#

main74223-12050-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74223-12050-04i198305-198505

BLUE,BLUE,TRIM8#

main74223-12060-01i198505-198707

BLACK,BLACK,TRIM2#

main74223-12060-04i198505-198707

BLUE,BLUE,TRIM8#

74310VISOR ASSY, RH

main74310-12310i198305-198505

IVORY

main74310-12330i198305-198505

IVORY

main74310-12340i198305-198505

IVORY

main74310-12350i198308-198505

IVORY

main74310-12360i198308-198505

IVORY

main74310-12540-08i198505

IVORY,IVORY

main74310-12550-08i198505-198704

SWITZERLAND SPEC,IVORY,IVORY

main74310-12560-08i198505-198704

IVORY,IVORY

main74310-12580-08i198505-198704

IVORY,IVORY

74320VISOR ASSY, LH

main74320-12260i198305-198505

IVORY

main74320-12290i198305-198505

IVORY

main74320-12300i198308-198505

IVORY

main74320-12310i198305-198505

IVORY

main74320-12320i198305-198505

IVORY

main74320-12420-08i198505-198704

SWITZERLAND SPEC,IVORY,IVORY

main74320-12430-08i198505-198704

IVORY,IVORY

main74320-12440-08i198505-198704

IVORY,IVORY

main74320-12450-08i198505-198704

IVORY,IVORY

74348HOLDER, VISOR

main74348-32010-01×2i198305-198707

BLACK,BLACK,TRIM2#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-14030-01i198505-198707

BLACK,BLACK,TRIM2#

main74610-14030-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74610-14030-14i198305-198707

BLUE,BLUE,TRIM8#

74631HOOK, COAT, A

main74631-12070-01×2i198505-198707

BLACK,BLACK,TRIM2#

main74631-12070-02×2i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74631-12070-04×2i198305-198707

BLUE,BLUE,TRIM8#

74810PULL ASSY, DOOR, INSIDE

main74266-12010-04i198308-198505

RH,BLUE,BLUE,TRIM8#

main74266-12010-05i198308-198505

RH,BEIGE,BEIGE,TRIM3#

main74267-12010-04i198308-198505

LH,BLUE,BLUE,TRIM8#

main74267-12010-05i198308-198505

LH,BEIGE,BEIGE,TRIM3#

9015260001

main90152-60001

9015960081

main90159-60081

9015960116

main90159-60116

9016460006

main90164-60006

9018906018

main90189-06018

9018906026

main90189-06026

9353045020

main93530-45020

9354026020

main93540-26020

9356014010

main93560-14010

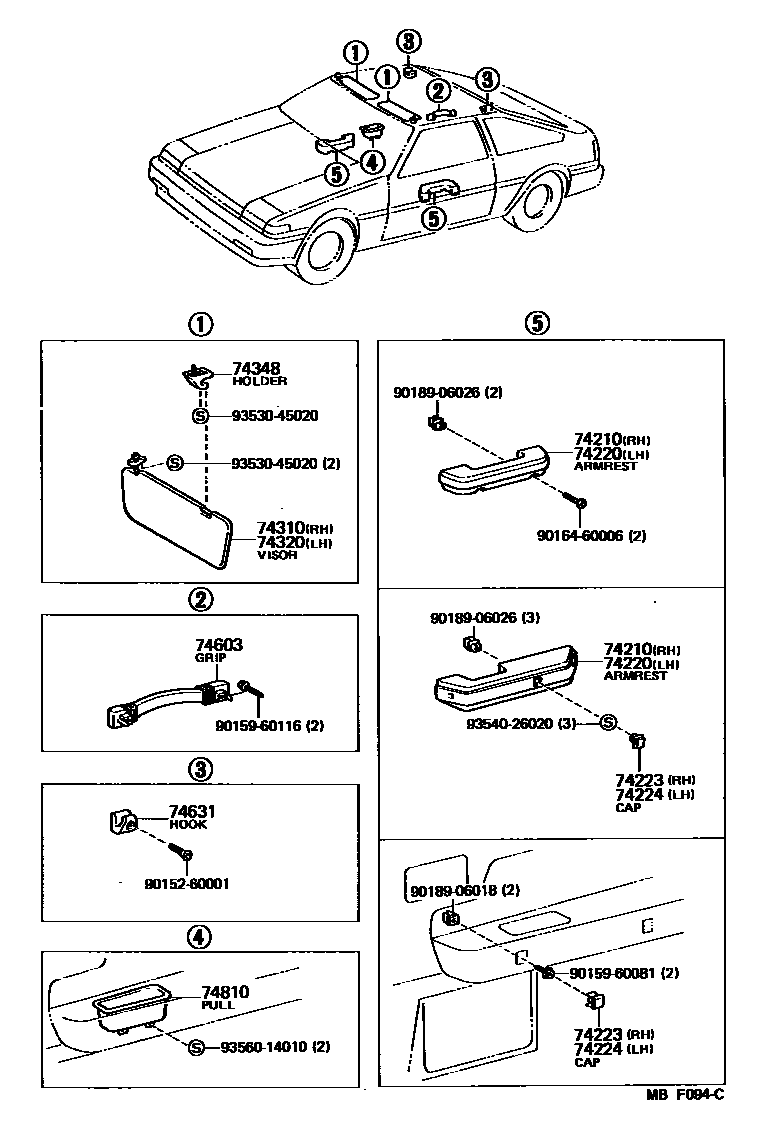

19 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA COUPE

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA COUPE. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH, VISOR ASSY, RH.
