Toyota COROLLA COUPE — SWITCH & RELAY & COMPUTER

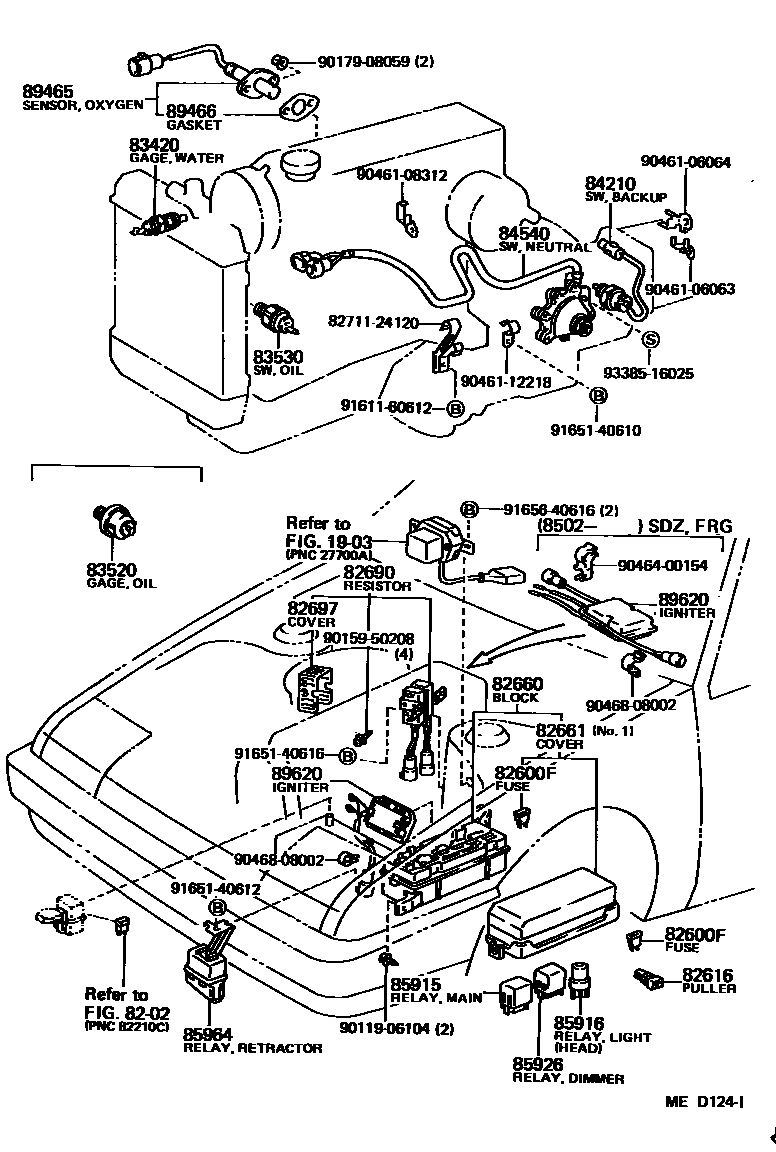

0001 1 0002 1 0003 1 0004 1

1903

8202

82600FFUSE, FUSE BLOCK

main90982-07011iAE86198305-198707

30A,GREEN,30A

main90982-09002×11iAE86198305-198707

10A,10A

main90982-09003×6iAE86198305-198707

15A,15A

main90982-09004×2iAE86198305-198707

20A,YELLOW,20A

main90982-09005×6iAE86198305-198707

7.5A,7.5A

82616PULLER, FUSE

main82616-12010iAE86198305-198707

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-12110iAE86..ME198308-198401

main82660-12111iAE86..ME198401-198707

main82660-12120iAE86..FRG,SDZ198503-198704

main82660-12190iAE86..ARL,EUR,GEN198305-198401

main82660-12191iAE86..EUG;AE86..ARL,GEN198503-198704

82661COVER, RELAY BLOCK, NO.1

main82661-12050iAE86..ME198308-198401

NO.1

main82661-12051iAE86..ME198401-198707

NO.1

main82661-12060iAE86..FRG,SDZ198503-198704

NO.1

main82661-12100iAE86198305-198707

NO.2

main82661-12130iAE86..ARL,EUR,GEN198305-198401

NO.1

main82661-12131iAE86..EUG;AE86..ARL,GEN198503-198704

NO.1

82690RESISTOR ASSY, DIM DIP LAMP

main82690-12010iAE86..RHD..EUG198611-198704

82697COVER, DIM-DIP LAMP RESISTOR

main82697-20010iAE86..RHD..EUG198611-198704

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iAE86198305-198308

main83420-20020iAE86198308-198707

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022iAE86..GT..(GEN,ME);AE86..LHD..GT..EUR;AE86..RHD..(ARL,EUR)198406-198705

main83520-14023iAE86198705-198707

sub83520-35030

main83520-55011iAE86..LHD..EUG;AE86..GT..(GEN,ME);AE86..RHD..(ARL,EUR)198305-198406

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12040iAE86..SR..(EUR,GEN)198305-198502

sub83530-14040

main83530-30080iAE86..SR..GEN198502-198704

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iAE86..5F198305-198704

84540SWITCH ASSY, NEUTRAL START

main84540-35020iAE86..4FC198305-198707

85915RELAY, MAIN

main85913-30020iAE86198305-198505

main90987-04002iAE86198505-198707

85916RELAY, LIGHT CONTROL

main90987-01003iAE86..EUG198308-198505

RR FOG

main90987-02004iAE86..SDZ198308-198505

RR FOG

85926RELAY, HEADLAMP DIMMER

main85926-30020iAE86..LHD..EUG198308-198503

85964RELAY, LIGHT RETRACTOR

main85964-12010iAE86..ME198308-198707

89465SENSOR, OXYGEN

main89465-29045iAE86..FRG198505-198704

89466GASKET, OXYGEN SENSOR

main89466-30010iAE86..FRG198505-198704

sub89466-20020

89620IGNITER ASSY

main89620-12270iAE86..EUG;AE86..GT..(GEN,ME)198610-198707

main89620-12290iAE86..FRG,SDZ198502-198704

DENSO

main89620-12310iAE86..SDZ198502-198505

TOSHIBA

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

9011906104

main90119-06104

9015950208

main90159-50208

9017908059

main90179-08059

9046106063

main90461-06063

9046106064

main90461-06064

9046108312

main90461-08312

9046112218

main90461-12218

9046400154

main90464-00154

9046808002

main90468-08002

9161160612

main91611-60612

9165140610

main91651-40610

9165140612

main91651-40612

9165140616

main91651-40616

9165640616

main91656-40616

9338516025

main93385-16025

36 parts on this diagram · 4 diagrams in section
