Toyota COROLLA COUPE — HEATING & AIR CONDITIONING - SET

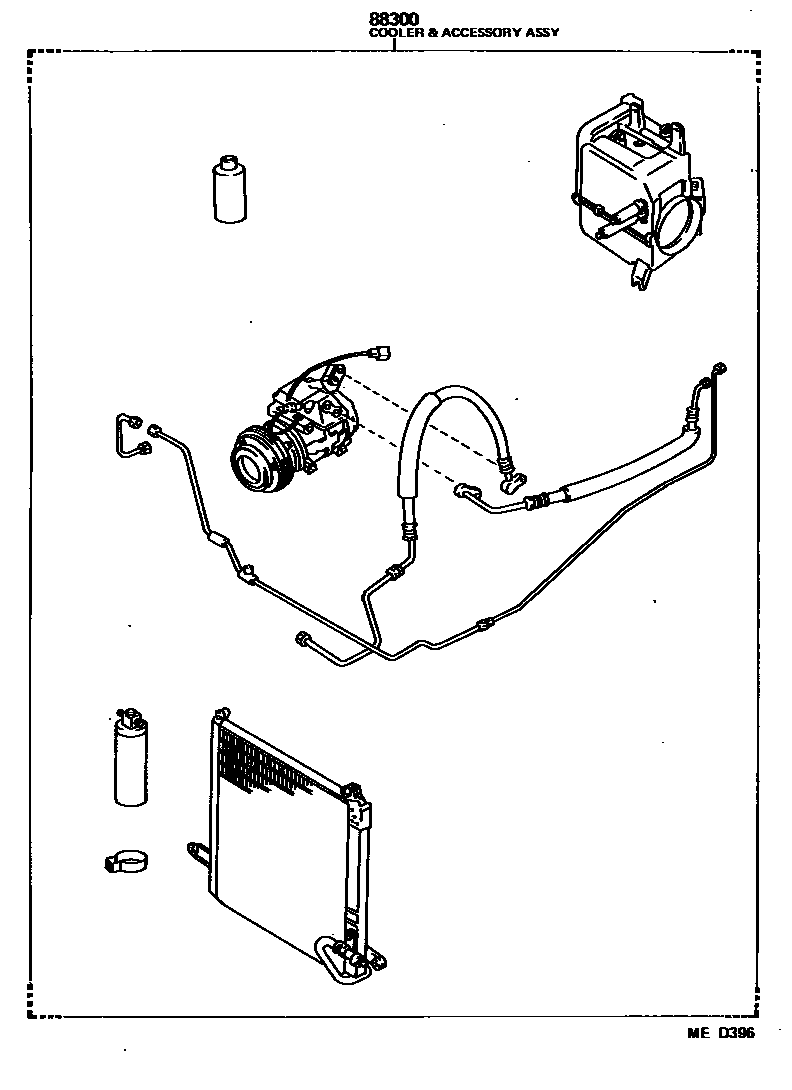

88300COOLER & ACCESSORY ASSY

main88300-1E300i198308-198505

main88300-1E320i198305-198505

main88300-1E330i198305-198505

W/*BV

main88300-1E340i198308-198405

W/*BV

main88300-1E341i198405-198505

W/*BV

main88300-1E840i198305-198505

main88300-1K790i198505-198704

main88300-1K800i198505-198704

W/HEATER

main88300-1K810i198505-198704

W/*BV

main88300-1K820i198505-198704

main88300-1K830i198505-198704

W/HEATER

main88300-1K840i198505-198704

W/*BV

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota COROLLA COUPE

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota COROLLA COUPE. Key components include: COOLER & ACCESSORY ASSY.
