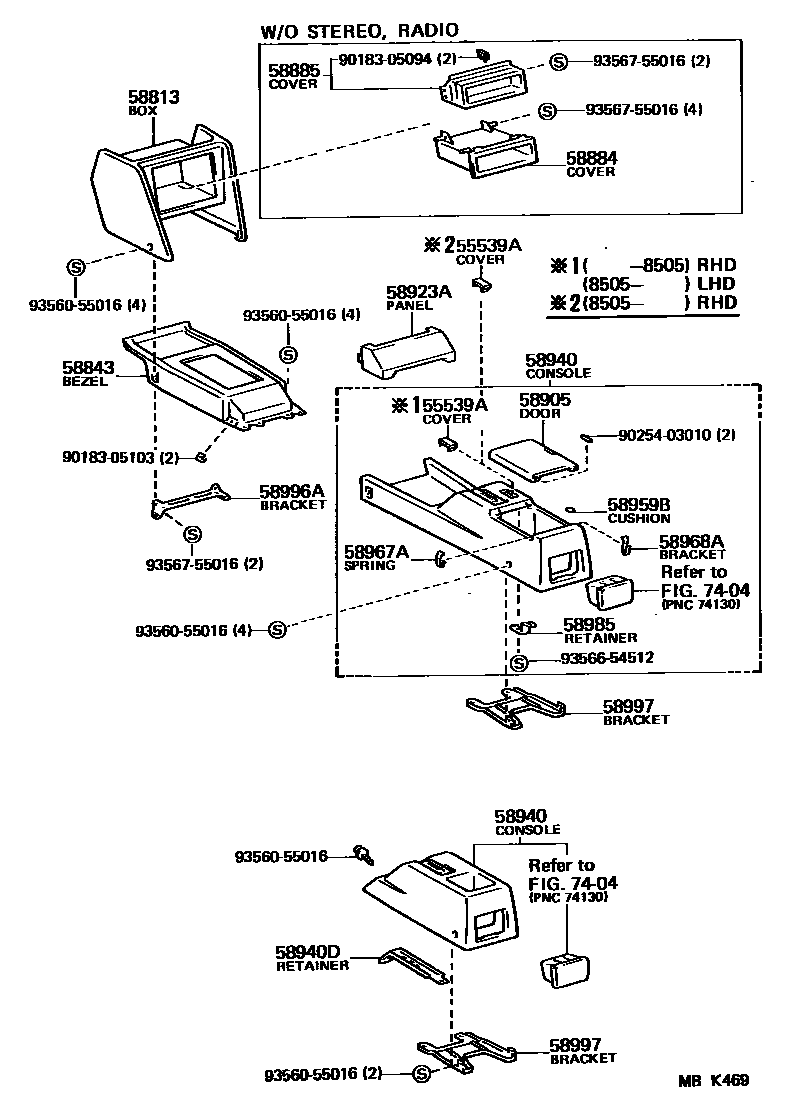

Toyota COROLLA COUPE — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-24010-01iAE86..RHD..GT198505-198704

BLACK,BLACK,TRIM2#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-04iAE86..RHD..GT..GEN;AE86..RHD..(ARL,EUR)198412-198505

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-12iAE86..RHD..GT..GEN;AE86..RHD..(ARL,EUR)198412-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub55539-32010

sub55539-14030

sub55539-20030

58813BOX, CONSOLE, UPPER

main58813-12080-02iAE86..EUG198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main58813-12080-04iAE86..EUG198305-198505

BLUE,BLUE,TRIM8#

main58813-12081-01iAE86..GEN,ME;AE86..LHD..EUR198505-198707

DIN A TYPE,BLACK,BLACK,TRIM2#

main58813-12081-04iAE86..GEN,ME;AE86..LHD..EUR198505-198707

DIN A TYPE,BLUE,BLUE,TRIM8#

main58813-12090-02iAE86..EUG198308-198505

W/O RADIO,DEEP MAROON,RED/MAROON,TRIM3#

main58813-12090-04iAE86..EUG198308-198505

W/O RADIO,BLUE,BLUE,TRIM8#

main58813-12091-01iAE86..EUG,FRG198505-198507

DIN E/F TYPE,BLACK,BLACK,TRIM2#

main58813-12091-04iAE86..EUR198507-198704

DIN E/F TYPE,BLUE,BLUE,TRIM8#

58843BEZEL, SHIFTING HOLE

main58811-12360-02iAE86198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main58811-12360-04iAE86198305-198505

BLUE,BLUE,TRIM8#

main58811-12361-01iAE86198505-198707

BLACK,BLACK,TRIM2#

main58811-12361-04iAE86198505-198707

BLUE,BLUE,TRIM8#

58884COVER, STEREO OPENING

main55521-16010iAE86..SR;AE86..GT..(GEN,ME);AE86..LHD..GT..EUR198305-198608

sub55521-16030

58885COVER, CONSOLE BOX OPENING

main55522-14070iAE86..EUR198507-198704

main55522-14080iAE86..GT..(GEN,ME);AE86..SR..(EUR,GEN)198305-198408

sub55522-20070

main55522-32010iAE86..GT..SDZ;AE86..GT..(GEN,ME);AE86..SR..(EUR,GEN)198408-198507

sub55522-20070

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58951-12090iAE86..RHD..GT..GEN;AE86..RHD..(ARL,EUR)198305-198309

main58951-12091iAE86..RHD..GT..GEN;AE86..RHD..(ARL,EUR)198309-198704

main58951-12100iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198309

main58951-12101iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198309-198707

58923APANEL, CONSOLE REAR END

main58903-12060-01iAE86..SR198505-198704

BLACK,BLACK,TRIM2#

main58903-12060-02iAE86..SR..GEN198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main58903-12060-04iAE86..SR..GEN198305-198704

BLUE,BLUE,TRIM8#

58940CONSOLE ASSY, REAR

main58901-12050-02iAE86..RHD..GT..GEN;AE86..RHD..(ARL,EUR)198305-198505

FULL CONSOLE,DEEP MAROON,RED/MAROON,TRIM3#

main58901-12050-04iAE86..RHD..GT..GEN;AE86..RHD..(ARL,EUR)198305-198505

FULL CONSOLE,BLUE,BLUE,TRIM8#

main58901-12051-01iAE86..RHD..GT198505-198704

FULL CONSOLE,BLACK,BLACK,TRIM2#

main58901-12051-04iAE86..RHD..GT198505-198704

FULL CONSOLE,BLUE,BLUE,TRIM8#

main58901-12060-01iAE86..SR198505-198704

BLACK,BLACK,TRIM2#

main58901-12060-02iAE86..SR..GEN198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main58901-12060-04iAE86..SR..GEN198305-198704

BLUE,BLUE,TRIM8#

main58901-12080-02iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198505

FULL CONSOLE,DEEP MAROON,RED/MAROON,TRIM3#

main58901-12080-04iAE86..LHD..GT..GEN;AE86..LHD..(EUR,ME)198308-198505

FULL CONSOLE,BLUE,BLUE,TRIM8#

main58901-12081-01iAE86..LHD..GT198505-198707

FULL CONSOLE,BLACK,BLACK,TRIM2#

main58901-12081-04iAE86..LHD..GT198505-198707

FULL CONSOLE,BLUE,BLUE,TRIM8#

58940DRETAINER, PARKING BRAKE HOLE COVER

main58943-12030iAE86..SR..GEN198305-198704

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2iAE86..GT..GEN;AE86..ARL,EUR,ME198305-198707

58967ASPRING, CONSOLE DOOR STOPPER

main58967-12010×2iAE86..GT..GEN;AE86..ARL,EUR,ME198305-198309

58968ABRACKET, CONSOLE DOOR STOPPER

main58968-12010×2iAE86..GT..GEN;AE86..ARL,EUR,ME198309-198707

58985RETAINER, CONSOLE BOX

main58985-12020iAE86..GT..GEN;AE86..ARL,EUR,ME198305-198505

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12040iAE86198305-198707

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-12050iAE86198305-198707

7404

9018305094

main90183-05094

9018305103

main90183-05103

9025403010

main90254-03010

9356055016

main93560-55016

9356654512

main93566-54512

9356755016

main93567-55016

22 parts on this diagram · 1 diagram in section
