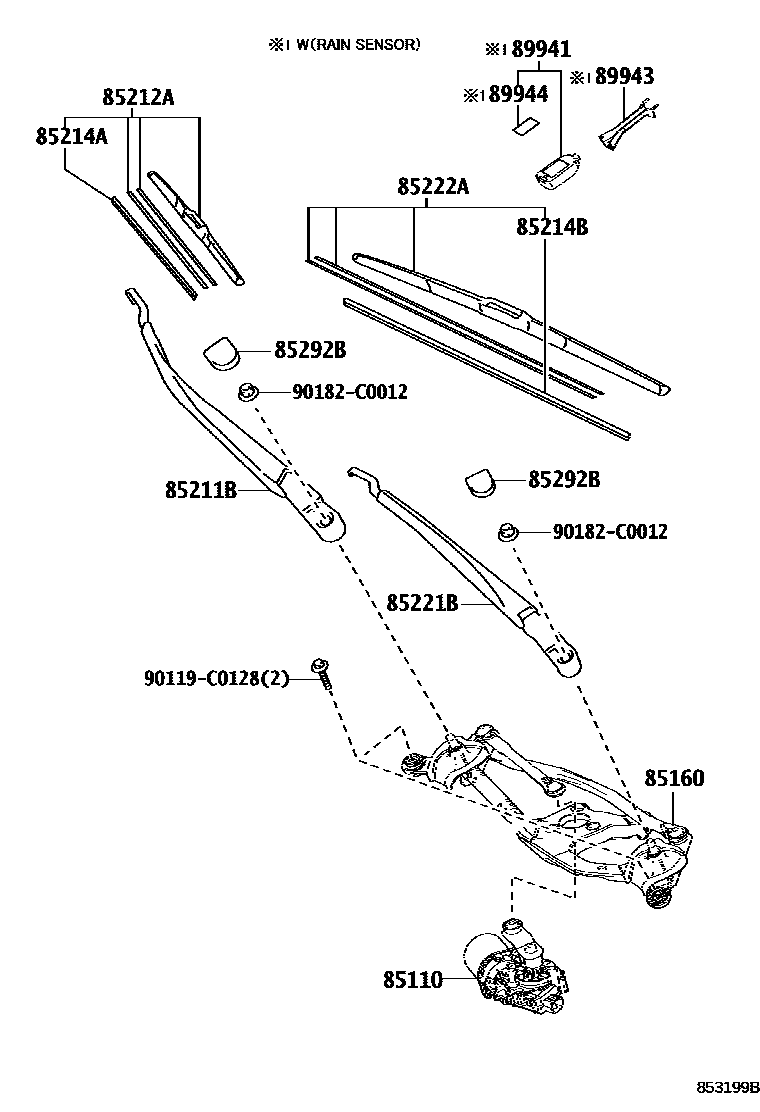

Toyota COROLLA (CHINA) — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02450i201704-201802

main85110-02451i201809

85160LINK ASSY, WINDSHIELD WIPER

main85150-02400i201704

85211BARM, FRONT WIPER, RH

main85211-02410i201406

85212ABLADE, FR WIPER, RH

main85212-02310i201406

85214ARUBBER, WIPER, RH

main85214-02260i201406

85214BRUBBER, WIPER, LH

main85214-02340i201704-201802

85221BARM, FRONT WIPER, LH

main85221-02430i201406

85222ABLADE, FR WIPER, LH

main85222-02320i201704-201802

main85222-02450i201808

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D070×2i201406

89941SENSOR, RAIN

main89941-52010i201512-201703

89943COVER, RAIN SENSOR

main89943-47010i201512-201703

89944TAPE, RAIN SENSOR

main89944-42010i201512-201703

90119C0128

main90119-C0128

90182C0012

main90182-C0012

14 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COROLLA (CHINA)

This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA (CHINA). Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
