Toyota COROLLA (CHINA)WINDSHIELD WIPER

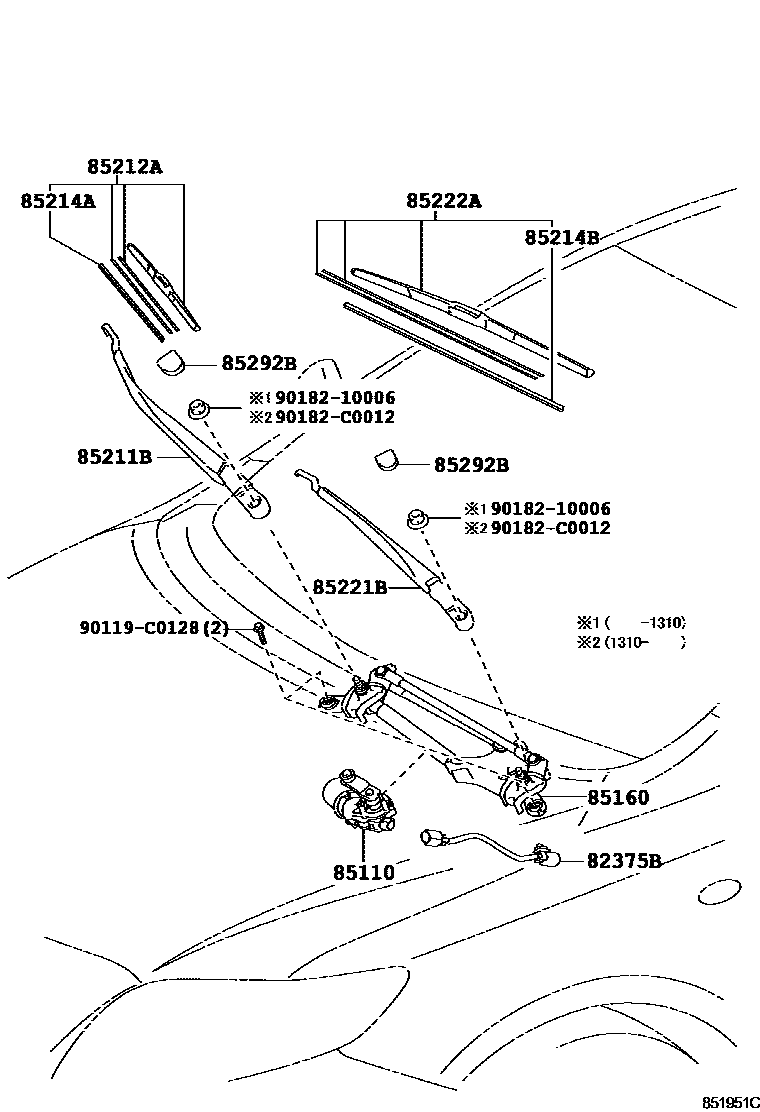

Parts diagram
82375BWIRE, WIPER MOTOR
main82375-12310i200811-200905
main82375-12311i201009-201203
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-02240i200705-201009
85160LINK ASSY, WINDSHIELD WIPER
main85150-02220i201009-201203
85211BARM, FRONT WIPER, RH
main85211-02230i201009-201203
85212ABLADE, FR WIPER, RH
main85212-02220i201009
main85212-12430i200705-200909
85214ARUBBER, WIPER, RH
main85214-68030i200705-201009
85214BRUBBER, WIPER, LH
main85214-68020i200705-201009
85221BARM, FRONT WIPER, LH
main85221-02240i200705-201009
85222ABLADE, FR WIPER, LH
main85222-02240i200910-201009
main85222-12830i200705-200909
85292BCAP, FRONT WIPER ARM HEAD
main85292-0D070×2i201311
main85292-13010×2i200705-201009
90119C0128
9018210006
90182C0012

13 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COROLLA (CHINA)

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA (CHINA). Key components include: WIRE, WIPER MOTOR, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
