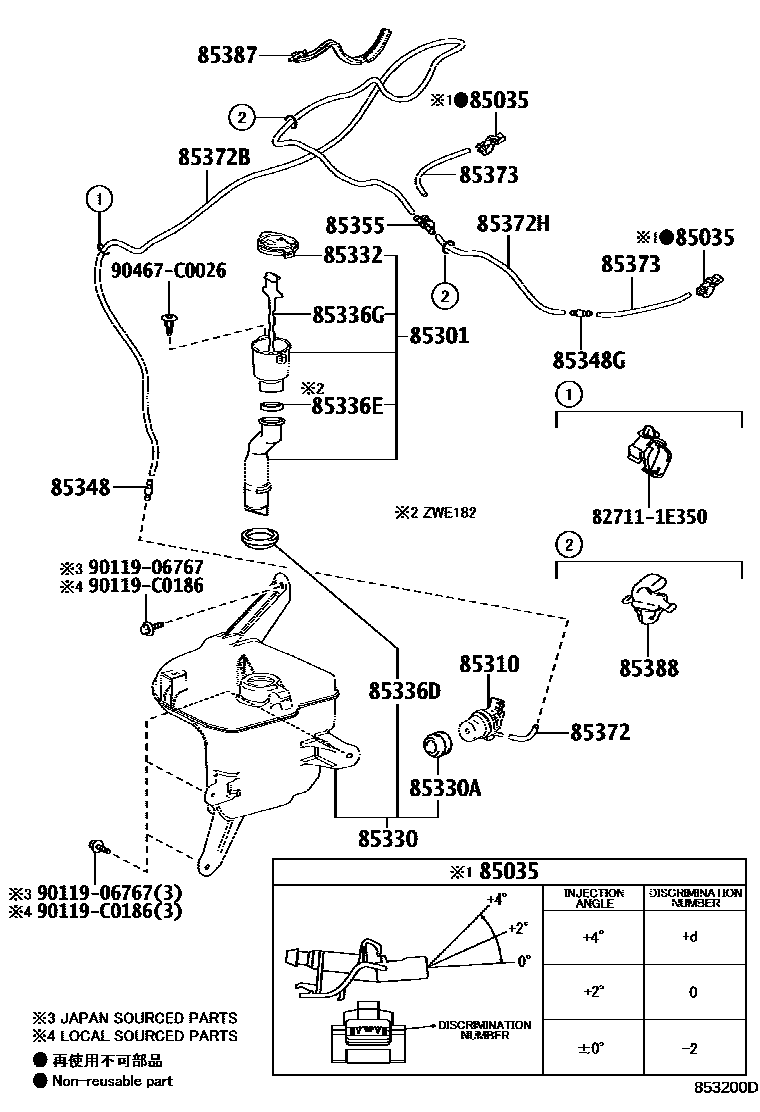

Toyota COROLLA (CHINA) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2i201704-201802

ANGLE 0

main85381-12420×2i201406

ANGLE +2

main85381-12430×2i201406

ANGLE +4

85301INLET SUB-ASSY, WASHER

main85301-02030i201512-201703

main85301-02130i201406

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201406

85330JAR ASSY, WINDSHIELD WASHER

main85315-02440i201406

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201406

85332CAP, WINDSHIELD WASHER JAR

main85316-02440i201406

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i201406

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i201704

85336GGAGE, WATER LEVEL

main85312-0P010i201406

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0D030i201406

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-0D030i201406

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201406

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33230i201406

L=60

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59130i201406

L=2100

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-59131i201406

L=360

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33229×2i201406

L=170

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85388-02510i201406

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-12040×2i201406

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

9011906767

main90119-06767

90119C0186

main90119-C0186

90467C0026

main90467-C0026

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA (CHINA)

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA (CHINA). Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
