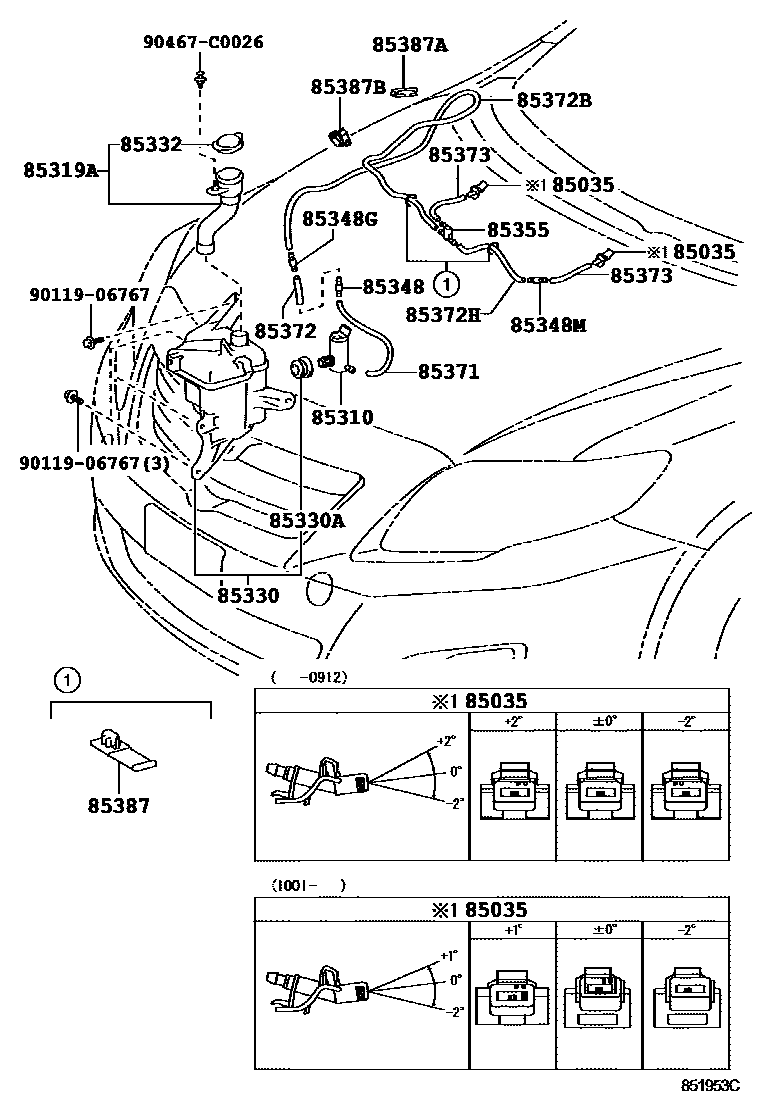

Toyota COROLLA (CHINA) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
ANGLE +1
ANGLE -2
ANGLE 0
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=140
L=80
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=40
L=1920
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=350
L=1870
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=350
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=165
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
9011906767
main90119-06767
90467C0026
main90467-C0026
20 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota COROLLA (CHINA)
This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA (CHINA). Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET, JAR ASSY, WINDSHIELD WASHER.
