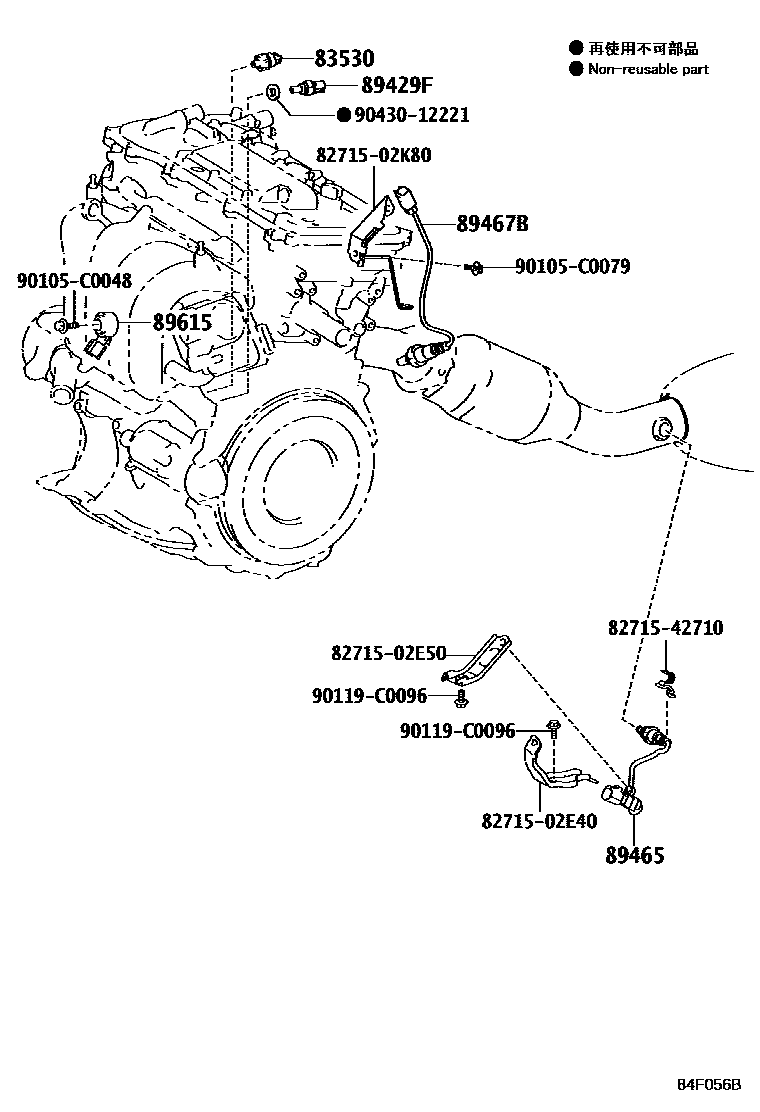

Toyota COROLLA (CHINA) — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1TRANSMISSION 0005 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM 0009 1ENGINE ROOM RELAY BLOCK 0011 1ENGINE ROOM RELAY BLOCK 0012 1COWL 0013 1COWL 0014 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1INSTRUMENT PANEL 0018 1INSTRUMENT PANEL 0019 1STEERING 0020 1SEAT 0021 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12060iZWE182201902

main83530-28020iZRE182201406-201902

DENSO

main83530-60020iZWE182201406-201902

YAZAKI

89429FSENSOR, TEMPERATURE

main89429-02010iNRE181201610-201703

main89429-02010iNRE181201704

(L)

main89429-12010iZRE182201406-201802

main89429-12010iNRE181201704

(J)

89465SENSOR, OXYGEN

main89465-02300iZRE182201406-201802

main89465-02410iNRE181201610-201703

main89465-0Q010iZWE182201512-201703

89467BSENSOR, AIR FUEL RATIO

main89467-02120iNRE181201610-201703

main89467-0R070iZRE18#,ZWE182201406-201802

89615SENSOR, KNOCK CONTROL

main89615-02040iNRE181201704

(L)

main89615-02040iNRE181201610-201703

main89615-20090iZRE182201406-201802

main89615-20090iZWE182201704

(J)

8271502E40BRACKET,WIRING HARNESS CLAMP

main82715-02E40

8271502E50BRACKET,WIRING HARNESS CLAMP

main82715-02E50

8271502K80BRACKET,WIRING HARNESS CLAMP

main82715-02K80

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90105C0048

main90105-C0048

90105C0079

main90105-C0079

90119C0096

main90119-C0096

9043012221

main90430-12221

13 parts on this diagram · 18 diagrams in section
