EPC Data

Toyota COROLLA (CHINA)SPEAKER

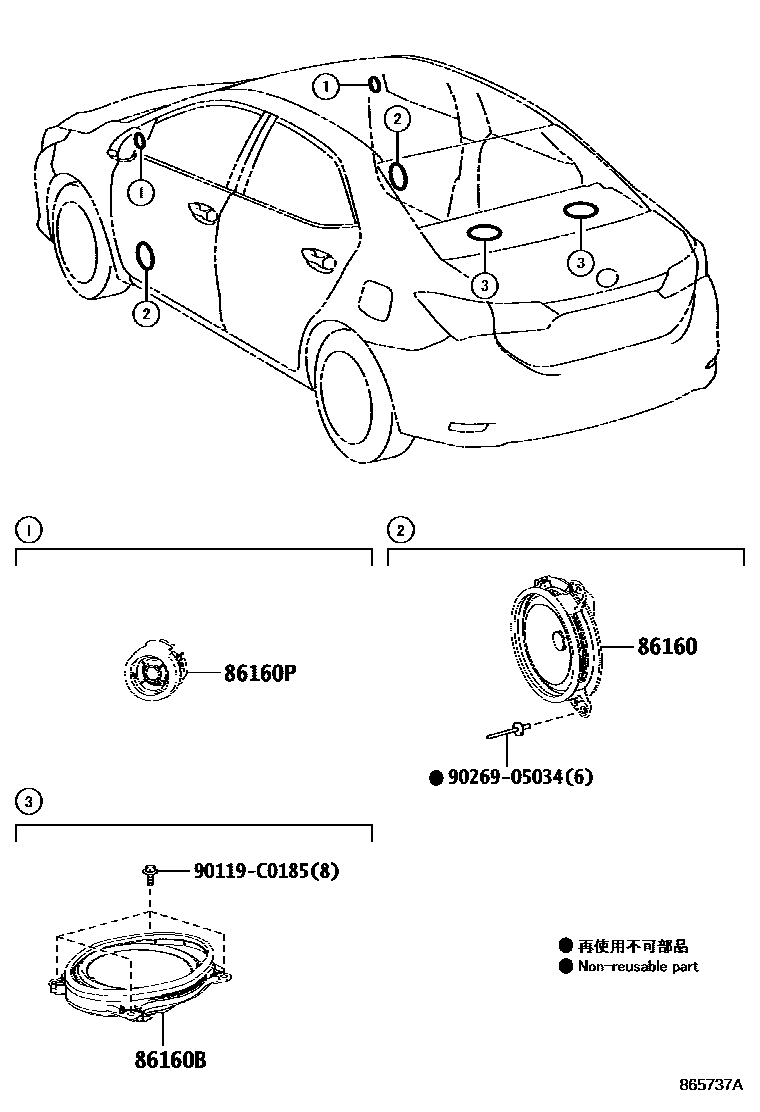

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86160-0D380×2i201406
86160BSPEAKER ASSY, REAR
main86160-02C30×2i201406-201907
AUDIO-AUDIO LESS & 2SPEAKER; AUDIOLESS PACKAGE
86160PSPEAKER ASSY, FRONT NO.2
main86160-02C40×2i201406
90119C0185
9026905034

5 parts on this diagram · 1 diagram in section

SPEAKER for Toyota COROLLA (CHINA)

This section contains 5 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA (CHINA). Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
