Toyota COROLLA (CHINA) — PARTIAL ENGINE ASSEMBLY

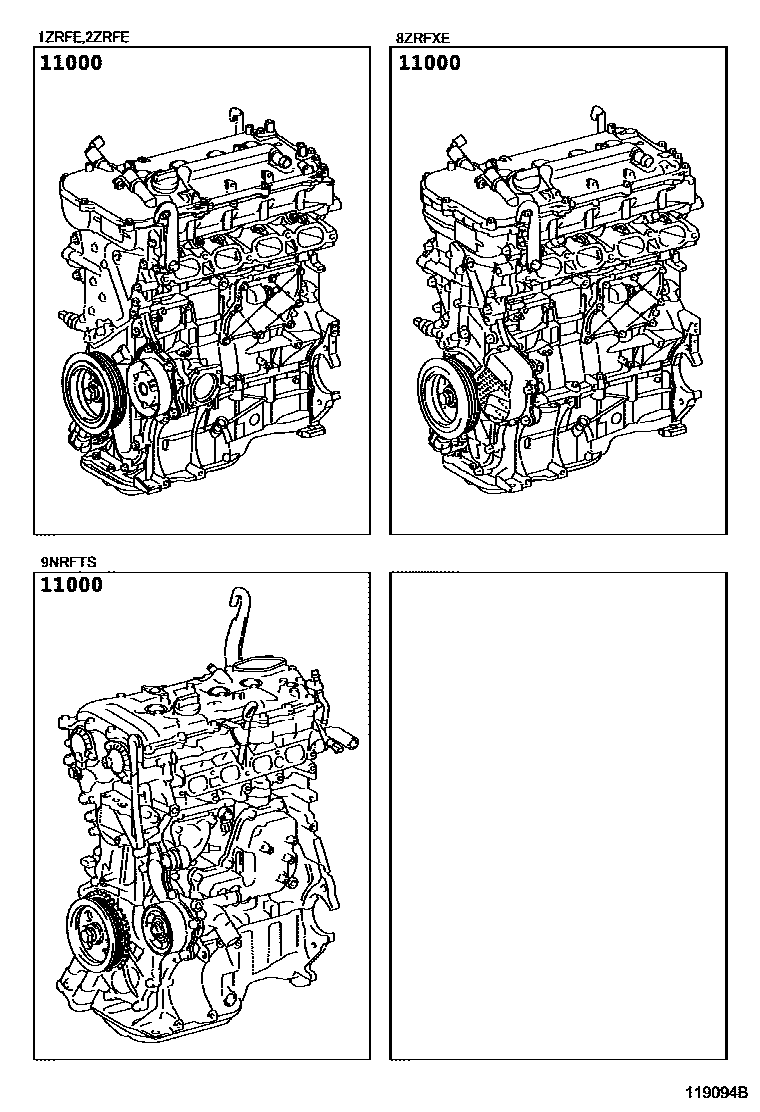

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0T440i201406-201505

main19000-0T441i201505

main19000-0T450i201406-201505

main19000-0T451i201704-201802

main19000-0T461i201512-201703

main19000-0Y290i201704

EXHAUST EMISSION CONTROL-JING 6,*475

main19000-47460i201704

*474

main19000-0Y320i201810

EXHAUST EMISSION CONTROL-CHINA 6B,*475

1 parts on this diagram · 1 diagram in section
