Toyota COROLLA (CHINA) — PARTIAL ENGINE ASSEMBLY

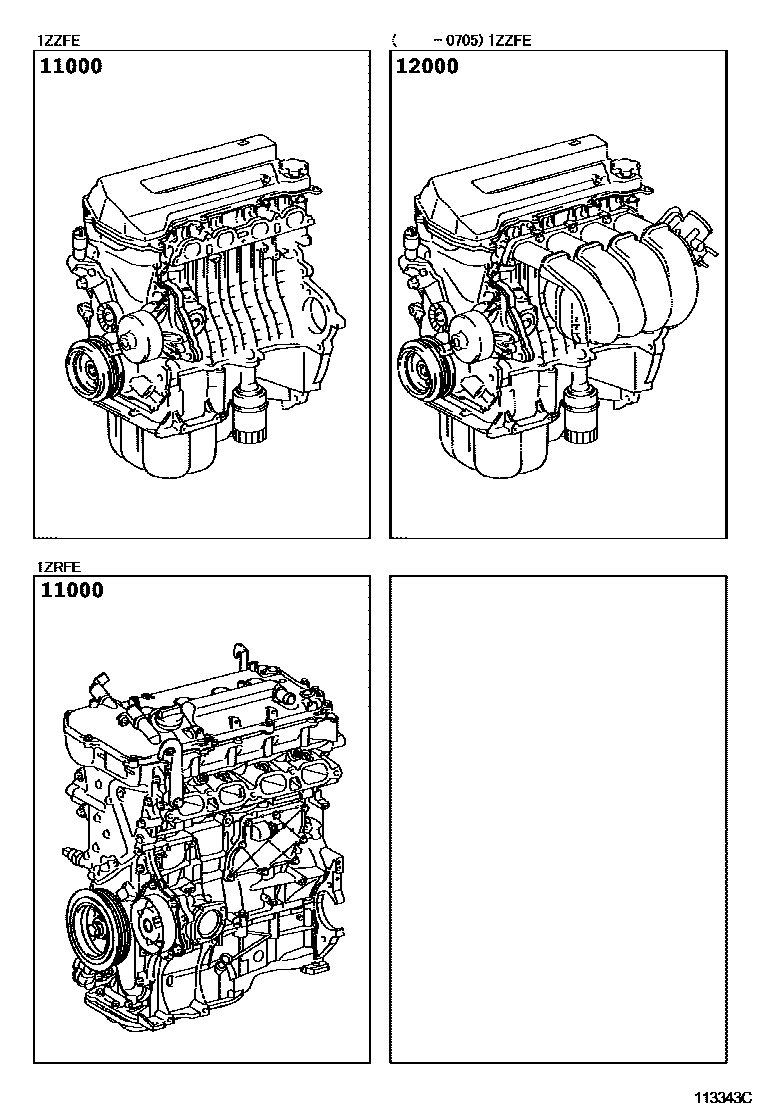

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0T030i200705-201210

main19000-0T031i201505

main19000-22330i200402-200606

REFER TO ILLUSTRATION FIG.22-11

main19000-22A40i200606-200705

REFER TO ILLUSTRATION FIG.22-11

12000ENGINE ASSY

main12000-0D740i200502-200606

REFER TO ILLUSTRATION FIG.22-11

main12000-0D780i200507-200606

BEIJING SPEC,REFER TO FIG 22-11

main17000-0D580i200402-200606

REFER TO ILLUSTRATION FIG.22-11

main17000-0D820i200507-200606

BEIJING SPEC,REFER TO FIG 22-11

2 parts on this diagram · 1 diagram in section
