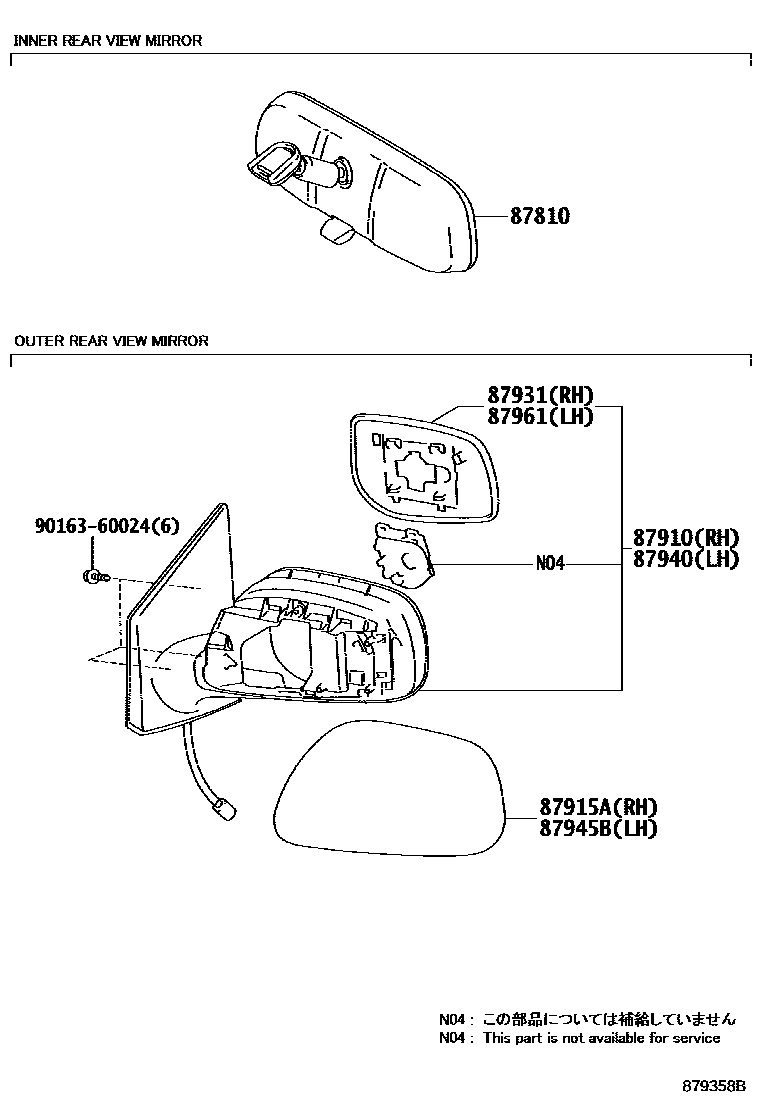

Toyota COROLLA (CHINA) — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BACK MONITOR-WITH(IN INNER MIRROR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); NO PAINT REQ.,WITH(*CRC,*CRS & HEATER MIRROR)
NO PAINT REQ.
87915ACOVER, OUTER MIRROR, RH
87931OUTER MIRROR, RH
W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); WITH(*CRC,*CRS & HEATER MIRROR)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); NO PAINT REQ.,WITH(*CRC,*CRS & HEATER MIRROR)
NO PAINT REQ.
87961MIRROR OUTER, LH
9016360024
main90163-60024
8 parts on this diagram · 2 diagrams in section
MIRROR for Toyota COROLLA (CHINA)
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota COROLLA (CHINA). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
