Toyota COROLLA (CHINA) — METER

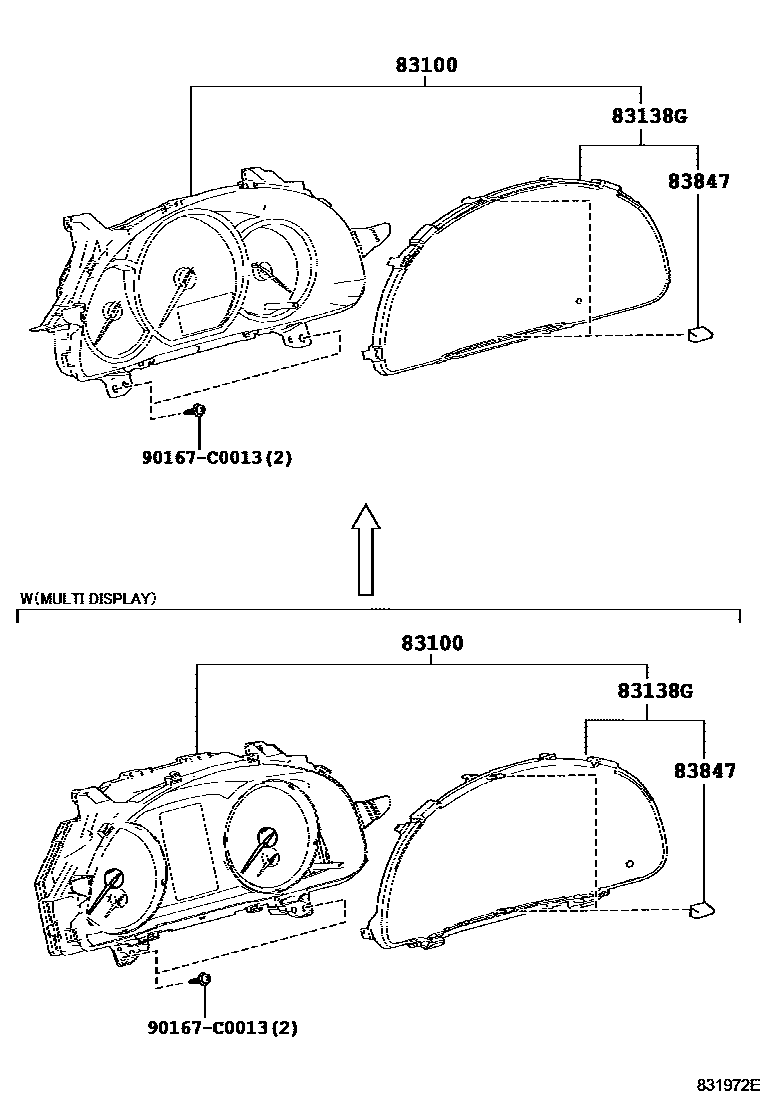

Parts diagram

83100METER ASSY, COMBINATION

main83800-0ZK70i201610

main83800-0ZR70i201406

main83800-0ZU01i201512

main83800-F2A00i201406-201610

main83800-F2A50i201406-201609

main83800-F2Q90i201610

main83800-F2R00i201610

main83800-F2U20i201704-201802

main83800-F2U30i201704

main83800-F2U40i201704

main83800-F2U50i201704

main83800-F2J20i201803

NIPPON SEIKI,VFM PACKAGE(*CRC & *SES)

main83800-FEE10i201803

DENSO,VFM PACKAGE(*CRC & *SES)

83138GGLASS, COMBINATION METER

main83852-0ZR70i201406

main83852-0ZU00i201512

main83852-F2A00i201406

main83852-F2A50i201704

main83852-F2U00i201704

main83852-F2U50i201704

83847CUSHION, COMBINATION SPEEDOMETER, NO.1

main83847-02N50×2i201704

90167C0013

main90167-C0013

4 parts on this diagram · 1 diagram in section

METER for Toyota COROLLA (CHINA)

This section contains 4 genuine Toyota parts for the METER system of the Toyota COROLLA (CHINA). Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, CUSHION, COMBINATION SPEEDOMETER, NO.1.
