Toyota COROLLA (CHINA) — METER

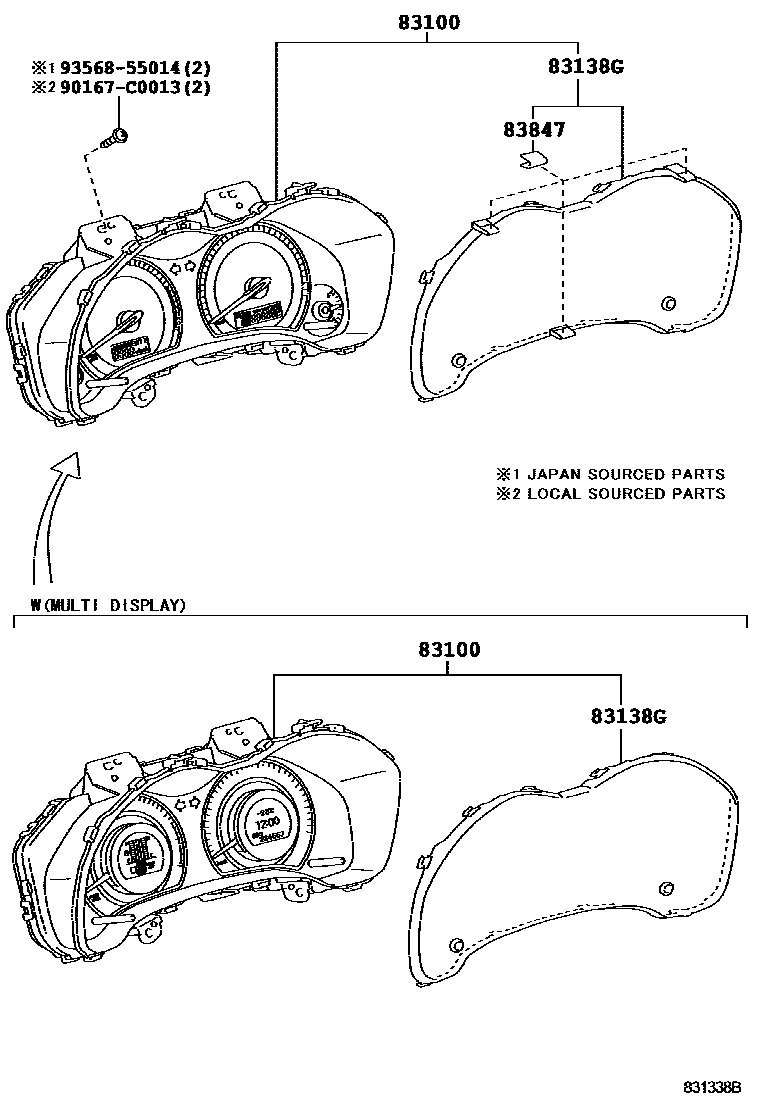

Parts diagram

83100METER ASSY, COMBINATION

main83800-02N50i200705-201009

main83800-02N60i200705-201009

main83800-02N70i200705-201009

main83800-02N80i200705-201009

main83800-0ZJ20supersedes 83800-0ZN90i201009-201203

main83800-0ZJ30supersedes 83800-0ZN80i201009-201203

main83800-0ZJ40i201009-201301

main83800-0ZJ50i201009-201301

main83800-0ZJ60i201009

main83800-0ZJ70i201009

main83800-0ZN80i201009-201203

main83800-0ZN90i201009-201203

83138GGLASS, COMBINATION METER

main83852-02N50i201009

main83852-02N70i200705-201009

83847CUSHION, COMBINATION SPEEDOMETER, NO.1

main83847-02N50×3i200705-201009

90167C0013

main90167-C0013

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section

METER for Toyota COROLLA (CHINA)

This section contains 5 genuine Toyota parts for the METER system of the Toyota COROLLA (CHINA). Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, CUSHION, COMBINATION SPEEDOMETER, NO.1.
