Toyota COROLLA (CHINA) — FRONT FENDER APRON & DASH PANEL

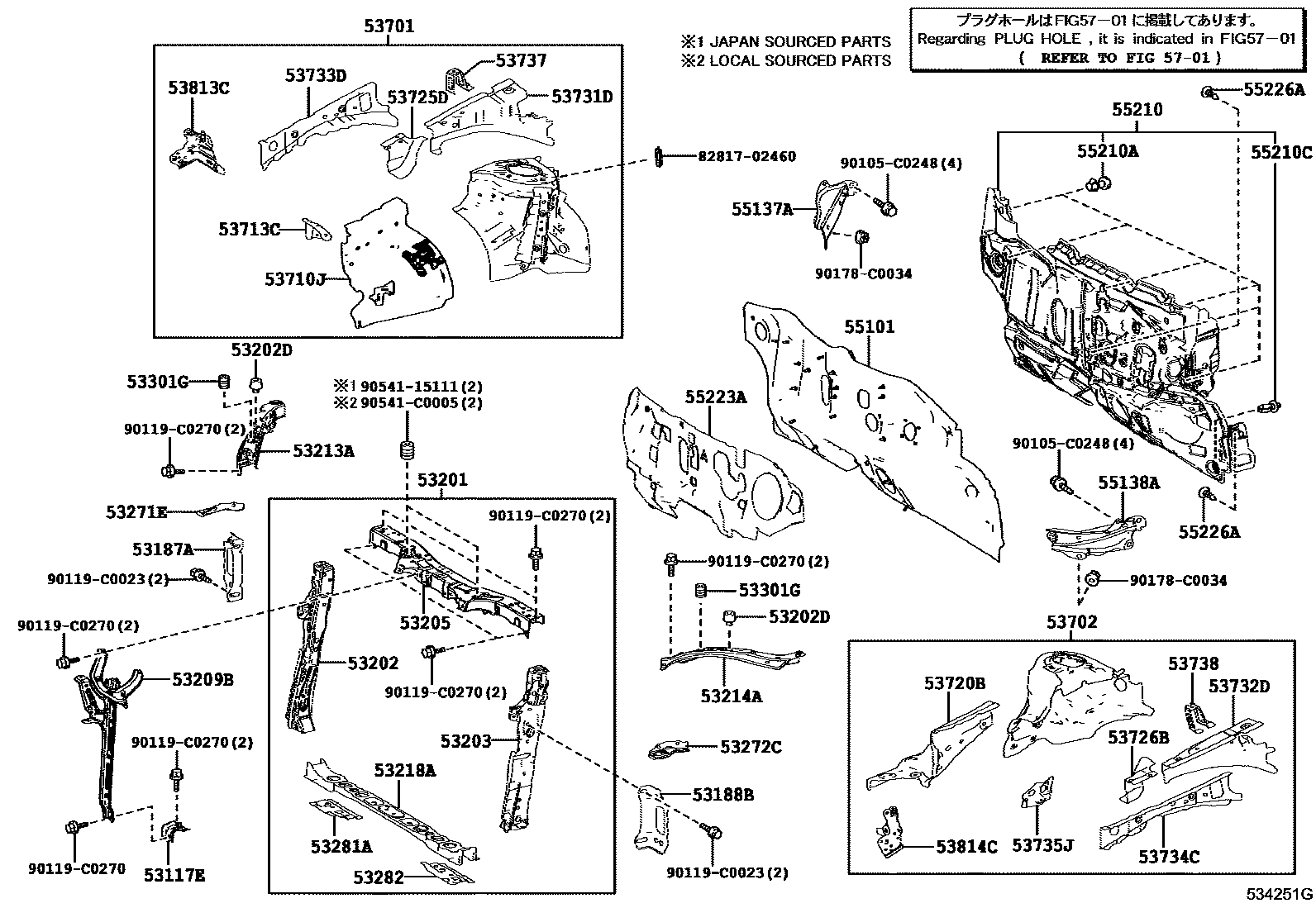

Parts diagram

53117EBRACKET, RADIATOR GRILLE, LOWER

main53117-02060i201406

53187ASTAY, RADIATOR SUPPORT, RH

main53187-02030i201406

53188BSTAY, RADIATOR SUPPORT, LH

main53188-02030i201406

53201SUPPORT SUB-ASSY, RADIATOR

main53201-02410i201406

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-02220i201406

53202DCUSHION, RADIATOR SUPPORT

main90541-09117×2i201406

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-02220i201406

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-02280i201406

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-02120i201406-201910

53213ASUPPORT, RADIATOR, UPPER RH

main53213-02180i201406

53214ASUPPORT, RADIATOR, UPPER LH

main53214-02170i201406

53218ASUPPORT, RADIATOR, LOWER

main53218-02030i201406

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-02100i201406

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-02100i201406

53281AREINFORCEMENT, FRONT BODY MOUNTING, RH

main53281-02030i201406

53282REINFORCEMENT, FRONT BODY MOUNTING, LH

main53282-02030i201406

53301GCUSHION, HOOD BUMPER

main53384-50010×2i201406

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-02380i201406

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-02300i201406

53710JAPRON ASSY, FRONT FENDER, RH

main53710-02904i201406

main53710-02906i201704-201802

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-02050i201704

53720BAPRON ASSY, FRONT FENDER, LH

main53720-02050i201704-201802

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-02030i201406

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-02030i201406

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-02070i201406

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-02080i201406

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-02030i201406

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-02030i201406

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-02030i201704-201802

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-02180i201704-201802

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-02150i201406

53813CEXTENSION, FRONT FENDER, RH

main53813-02160i201406

53814CEXTENSION, FRONT FENDER, LH

main53814-02160i201704-201802

55101PANEL SUB-ASSY, DASH

main55101-02840i201704

main55101-02850i201704

55137ABRACE, DASH TO FRAME, RH

main55137-02120i201406-201806

main55137-02122i201806

55138ABRACE, DASH TO FRAME, LH

main55138-02110i201406-201806

main55138-02112i201806

55210INSULATOR ASSY, DASH PANEL

main55210-02570i201406-201512

main55210-02571i201601

55210ACLIP

main90467-11122×6i201406

55210CCLIP

main90467-11127×3i201406

55223AINSULATOR, DASH PANEL, OUTER

main55223-02200i201406-201506

main55223-02201i201602-201603

main55223-02360i201512-201601

main55223-02361i201601-201703

main55223-02380i201506-201512

main55223-02381i201603

55226ACLIP

main90467-08186-C0×4i201406-201610

BLACK

main90467-08186-C3×4i201704

BLACK

main90467-C0012-C0×4i201407-201409

BLACK

5701HOLE PLUG

→ Go to FIG 57-01

8281702460PROTECTOR, WIRING HARNESS, NO.1

main82817-02460

90105C0248

main90105-C0248

90119C0023

main90119-C0023

90119C0270

main90119-C0270

90178C0034

main90178-C0034

9054115111

main90541-15111

90541C0005

main90541-C0005

49 parts on this diagram · 2 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota COROLLA (CHINA)

This section contains 60 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota COROLLA (CHINA). Key components include: GUIDE, RADIATOR AIR, NO.3, GUIDE, RADIATOR AIR, NO.1 RH, GUIDE, RADIATOR AIR, NO.2, GUIDE, RADIATOR AIR, NO.1 LH, BRACKET, RADIATOR GRILLE, LOWER.
