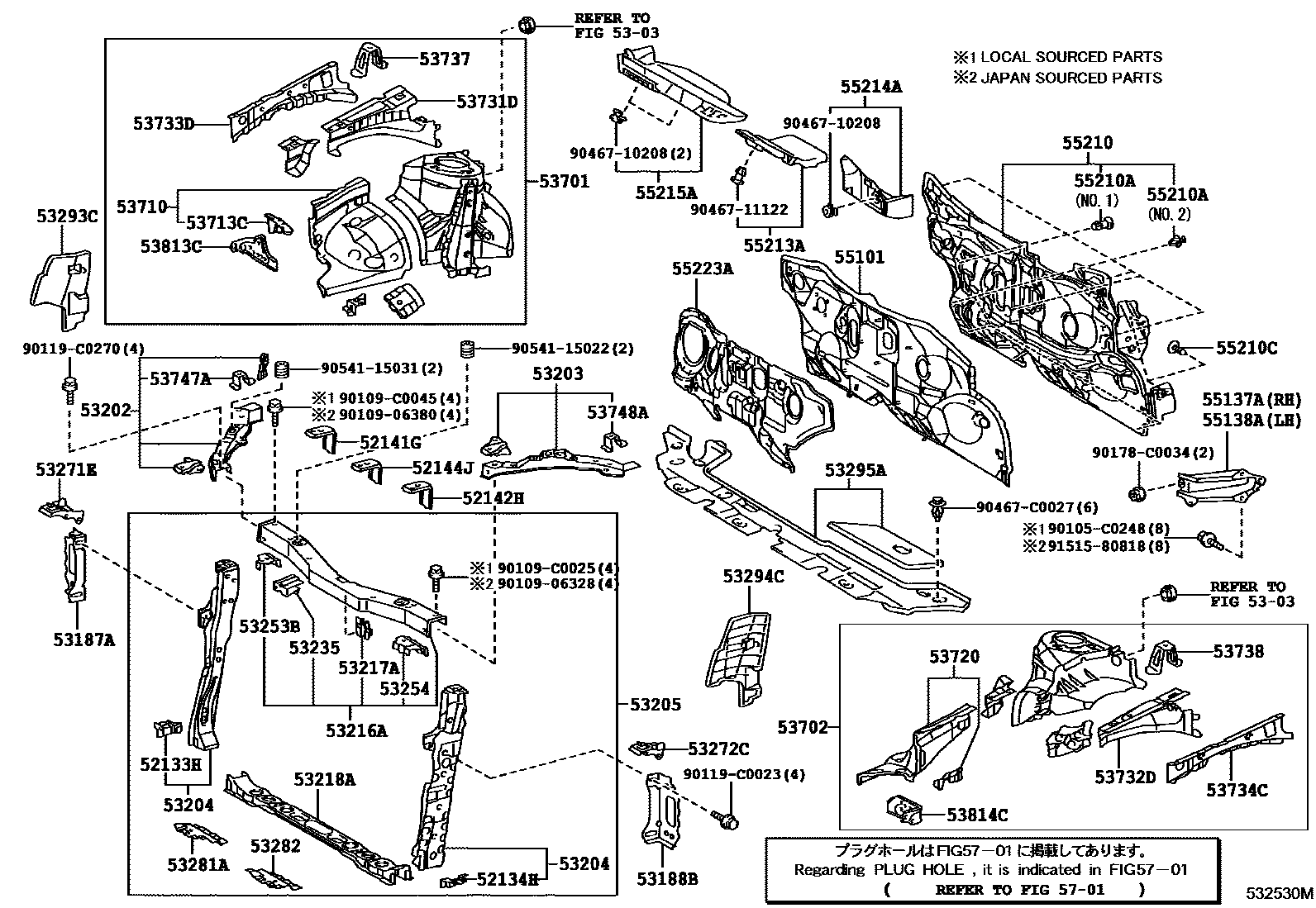

Toyota COROLLA (CHINA) — FRONT FENDER APRON & DASH PANEL
52133HBRACKET, FRONT BUMPER, RH
52134HBRACKET, FRONT BUMPER, LH
52141GSTAY, FRONT BUMPER, RH
52142HSTAY, FRONT BUMPER, LH
52144JSTAY, FRONT BUMPER, CENTER
5303HOOD LOCK & HINGE
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER
LH
RH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53216ASUPPORT, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53218ASUPPORT, RADIATOR, LOWER
53235BRACKET, HORN MOUNTING
53253BBRACKET, RADIATOR MOUNTING, UPPER
53254BRACKET, RADIATOR MOUNTING, UPPER LH
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53281AREINFORCEMENT, FRONT BODY MOUNTING, RH
53282REINFORCEMENT, FRONT BODY MOUNTING, LH
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53295ADEFLECTOR, RADIATOR UPPER AIR
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53710APRON ASSY, W/FRONT SIDE MEMBER, RH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53720APRON ASSY, W/FRONT SIDE MEMBER, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
55101PANEL SUB-ASSY, DASH
55137ABRACE, DASH TO FRAME, RH
55138ABRACE, DASH TO FRAME, LH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
55210CCLIP
BLACK
55213APAD, DASH PANEL SILENCER
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
5701HOLE PLUG
90105C0248
main90105-C0248
9010906328
main90109-06328
9010906380
main90109-06380
90109C0025
main90109-C0025
90109C0045
main90109-C0045
90119C0023
main90119-C0023
90119C0270
main90119-C0270
90178C0034
main90178-C0034
9046710208
main90467-10208
9046711122
main90467-11122
90467C0027
main90467-C0027
9054115022
main90541-15022
9054115031
main90541-15031
9151580818
main91515-80818
65 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota COROLLA (CHINA)
This section contains 65 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota COROLLA (CHINA). Key components include: BRACKET, FRONT BUMPER, RH, BRACKET, FRONT BUMPER, LH, STAY, FRONT BUMPER, RH, STAY, FRONT BUMPER, LH, STAY, FRONT BUMPER, CENTER.
