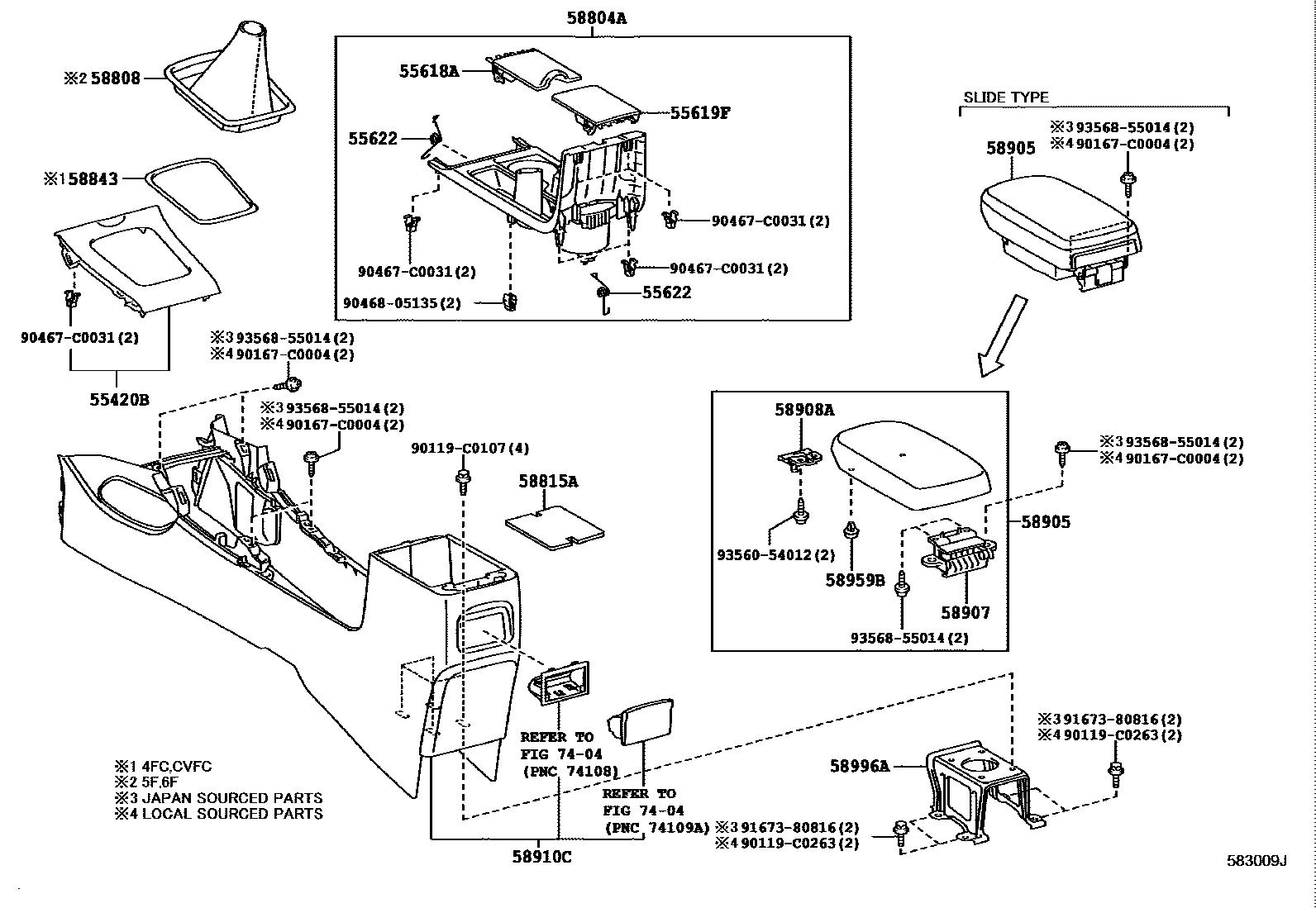

Toyota COROLLA (CHINA) — CONSOLE BOX & BRACKET

55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55420-02320iZRE152..GLS,GLXS201009-201203

main55420-02340iZRE15#200705-201009

main55420-02690iZRE153201009-201301

55618AHOLDER, CONSOLE BOX CUP

main55618-02080-B0iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

main55618-02080-E1iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55619-02110-B0iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

main55619-02110-E1iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

55622SPRING, INSTR PANEL CUP HOLDER, NO.1

main55622-02120×2iZRE15#200705-201009

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-02030-B1iZRE15#200802-201009

DK.GRAY,TRIM1#

main58804-02030-E1iZRE15#200705-201009

GREGE,TRIM4#

main58804-02030-E2iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12300-B0iZRE152..6F..(GLS,GLXS)201009-201203

DK.GRAY,TRIM1#

main58808-12300-E0iZRE15#..5F,6F200705-201009

ASH BROWN,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-02120iZRE152..GLS,GLXS201009-201203

58843BEZEL, SHIFTING HOLE

main58843-02070iZRE152..CVFC..(GLS,GLXS)201009-201203

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02410-B1iZRE152..GLS200802-201006

DK.GRAY,TRIM1#

main58905-02411-B1iZRE152..GLS201009-201203

DK.GRAY,TRIM1#

main58905-02420-B2iZRE152..GLXI,GLXS,PREM200802-201006

DK.GRAY,TRIM1#

main58905-02420-E2iZRE152..GLXI,GLXS,PREM200705-201006

GRAGE,TRIM4#

main58905-02421-B2iZRE152..GLXS201009-201203

DK.GRAY,TRIM1#

main58905-02421-E2supersedes 58905-02653-E0iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

main58905-02650-E0iZRE15#..GL,GLI200705-201006

GREGE,TRIM4#

main58905-02651-E0iZRE15#..GL,GLI201007-201009

GREGE,TRIM4#

sub58905-02652

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-02070iZRE152..GLS201009-201203

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iZRE15#..GL,GLI,GLS200705-201009

58910CBOX ASSY, CONSOLE, REAR

main58910-02090-B0iZRE15#200802-201006

DK.GRAY,TRIM1#

main58910-02090-E0iZRE15#200705-201006

GREGE,TRIM4#

main58910-02091-B0iZRE152..GLS,GLXS201007-201009

DK.GRAY,TRIM1#

sub58910-02092

main58910-02091-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

sub58910-02092

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iZRE15#..GL,GLI,GLS200705-201009

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-02070iZRE15#200705-201009

7404

90119C0107

main90119-C0107

90119C0263

main90119-C0263

90167C0004

main90167-C0004

90467C0031

main90467-C0031

9046805135

main90468-05135

9167380816

main91673-80816

9356054012

main93560-54012

9356855014

main93568-55014

23 parts on this diagram · 1 diagram in section
