Toyota COROLLA (CHINA) — CLUTCH & RELEASE FORK

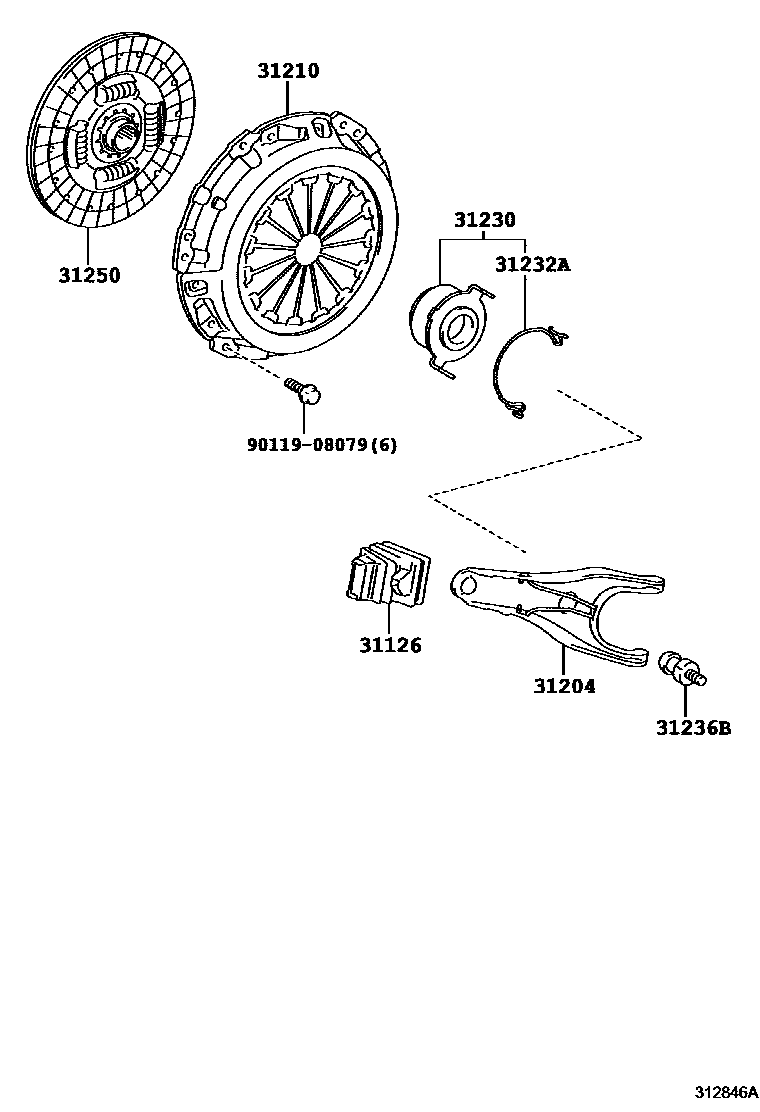

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-0D040i201406

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0D030i201406

31210COVER ASSY, CLUTCH

main31210-02290i201704

main31210-02320i201406-201609

main31210-02340i201406

31230BEARING ASSY, CLUTCH RELEASE

main31230-0D010i201406-201512

main31230-0D011i201512-201708

main31230-0D012i201709

31232ACLIP, RELEASE BEARING HUB

main31232-0D010i201512

main31232-12070i201406-201512

31236BSUPPORT, RELEASE FORK

main31236-0D010i201406

31250DISC ASSY, CLUTCH

main31250-02270i201704

main31250-02290i201406-201609

main31250-02300i201406

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section

CLUTCH & RELEASE FORK for Toyota COROLLA (CHINA)

This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COROLLA (CHINA). Key components include: CLUTCH RELEASE CYLINDER, BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE.
