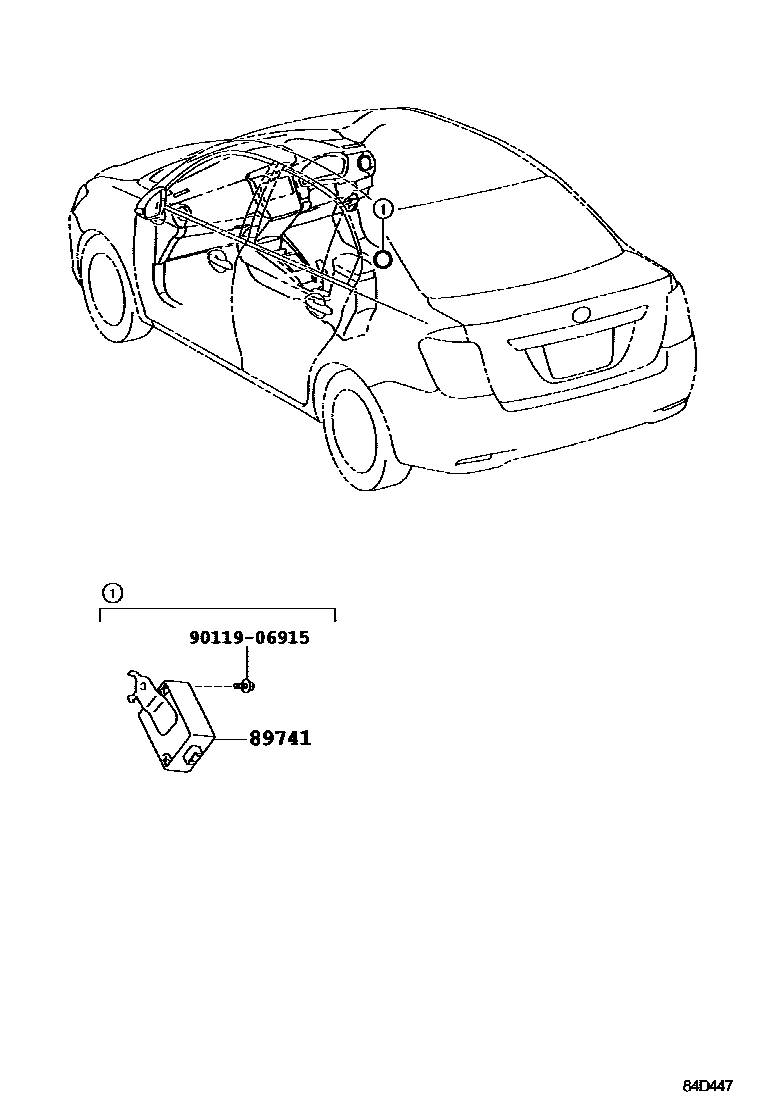

Toyota COROLLA/AXIO — WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-13060i201503-201710

main89741-12650i201503-201710

SMART ENTRY-WITH

main89741-13100i201204-201503

main89741-13101i201710-201908

main89740-12400i201212-201503

SMART ENTRY-WITH

9011906915

main90119-06915

2 parts on this diagram · 6 diagrams in section

WIRELESS DOOR LOCK for Toyota COROLLA/AXIO

This section contains 17 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota COROLLA/AXIO. Key components include: RECEIVER, DOOR CONTROL, HARNESS, ELECTRICAL KEY WIRE, BUZZER, WIRELESS DOOR LOCK, COMPUTER ASSY, SMART KEY, ANTENNA, ELECTRICAL KEY.
