Toyota COROLLA/AXIO — WINDSHIELD WASHER

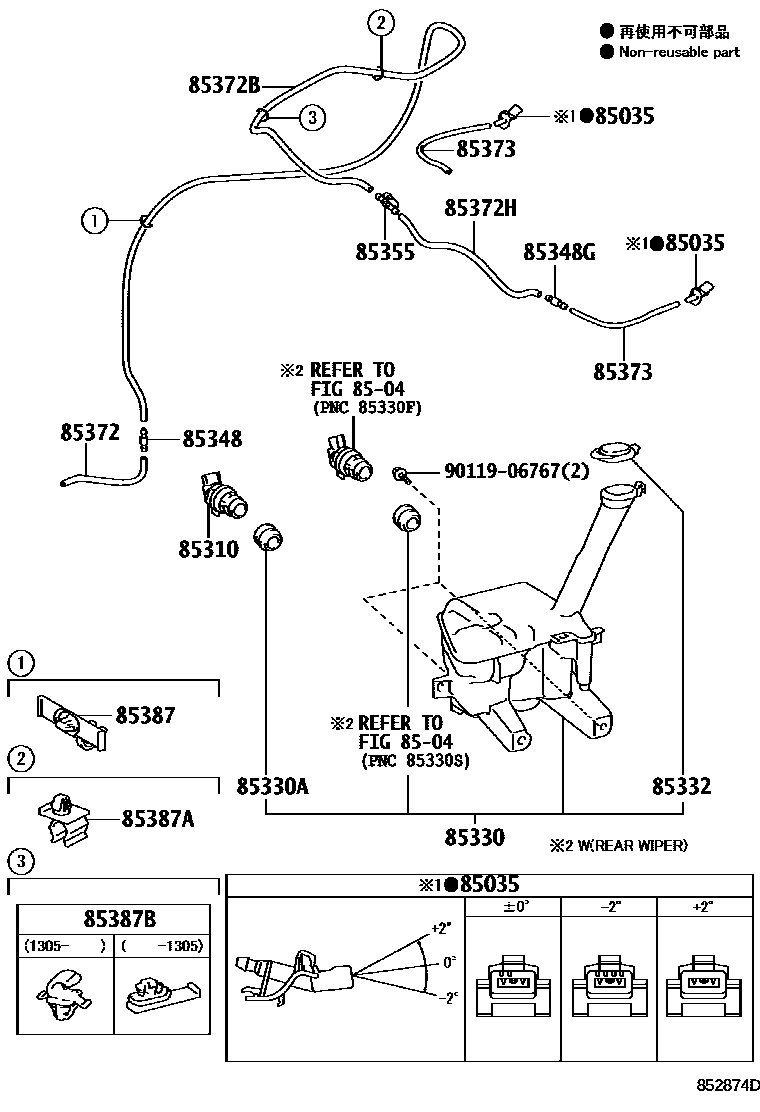

85035NOZZLE SUB-ASSY, WASHER

main85381-12400i201204-201908

ANGLE 0

main85381-12410i201204-201908

ANGLE -2

main85381-12420i201204-201908

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201204-201908

85330JAR ASSY, WINDSHIELD WASHER

main85315-52400i201212-201908

main85315-52420i201204-201908

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201204-201908

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i201204-201908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201204-201908

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i201204-201908

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201204-201908

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201204-201908

L=1450(*H,L=165)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33589i201204-201305

L=3300(*H,L=1900)

main90099-33589i201305-201908

L=3300(*H,L=1785)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i201204-201710

L=1800(*H,L=370)

main90446-07001i201710-201908

L=1800(*H,L=350)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i201204-201908

L=1450(*H,L=195)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-35750i201204-201908

85387ACLAMP, WASHER, NO.2

main85371-32020i201204-201908

85387BCLAMP, WASHER, NO.3

main82711-52090i201204-201305

main85371-12040i201305-201908

9011906767

main90119-06767

17 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA/AXIO

This section contains 17 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA/AXIO. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
