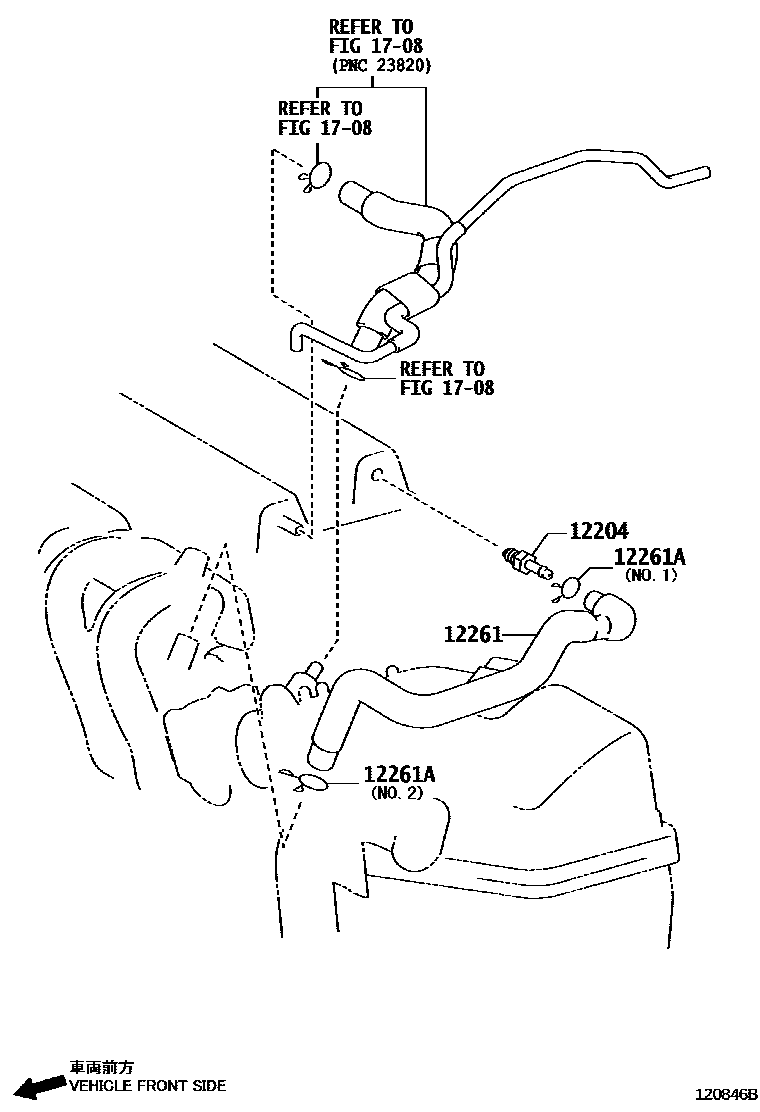

Toyota COROLLA/AXIO — VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.2
NO.1
1708VACUUM PIPING
4 parts on this diagram · 2 diagrams in section
VENTILATION HOSE for Toyota COROLLA/AXIO
This section contains 14 genuine Toyota parts for the VENTILATION HOSE system of the Toyota COROLLA/AXIO. Key components include: VALVE SUB-ASSY, VENTILATION, GROMMET(FOR VENTILATION SYSTEM), HOSE ASSY, VENTILATION, HOSE, VENTILATION, CLIP OR CLAMP(FOR VENTILATION HOSE).
