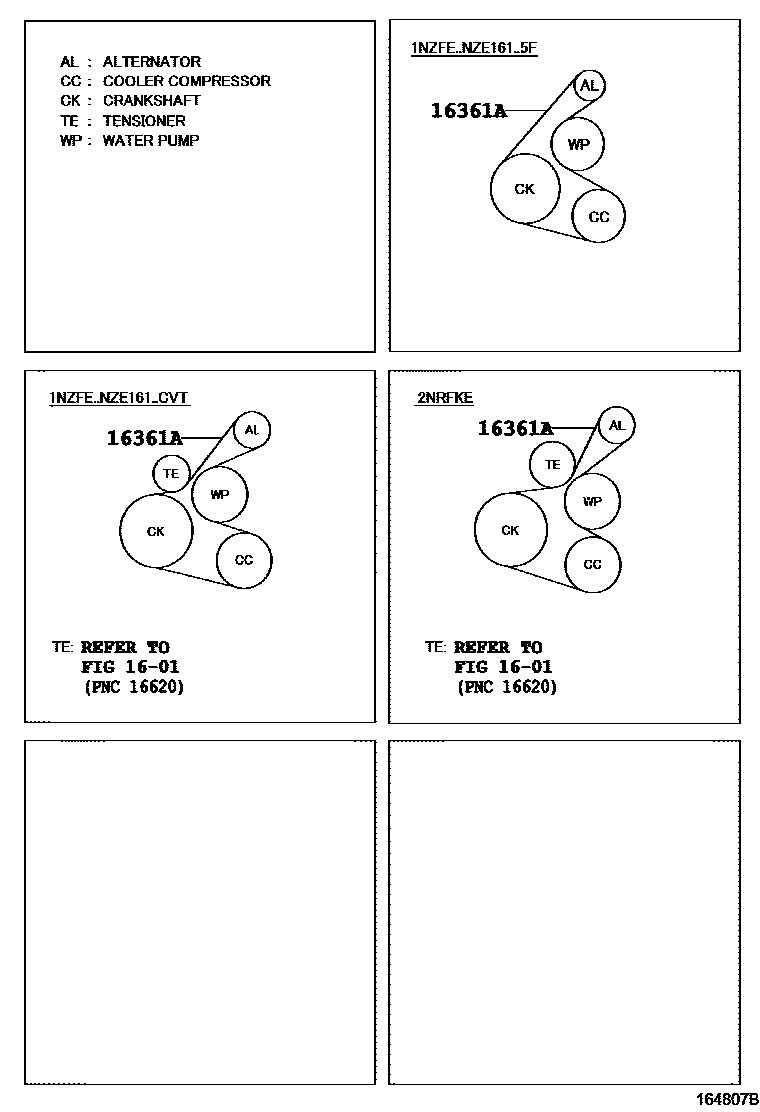

Toyota COROLLA/AXIO — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02705i201204-201503

main90916-02713i201206-201503

main90916-02726i201503-201710

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA/AXIO

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota COROLLA/AXIO. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
