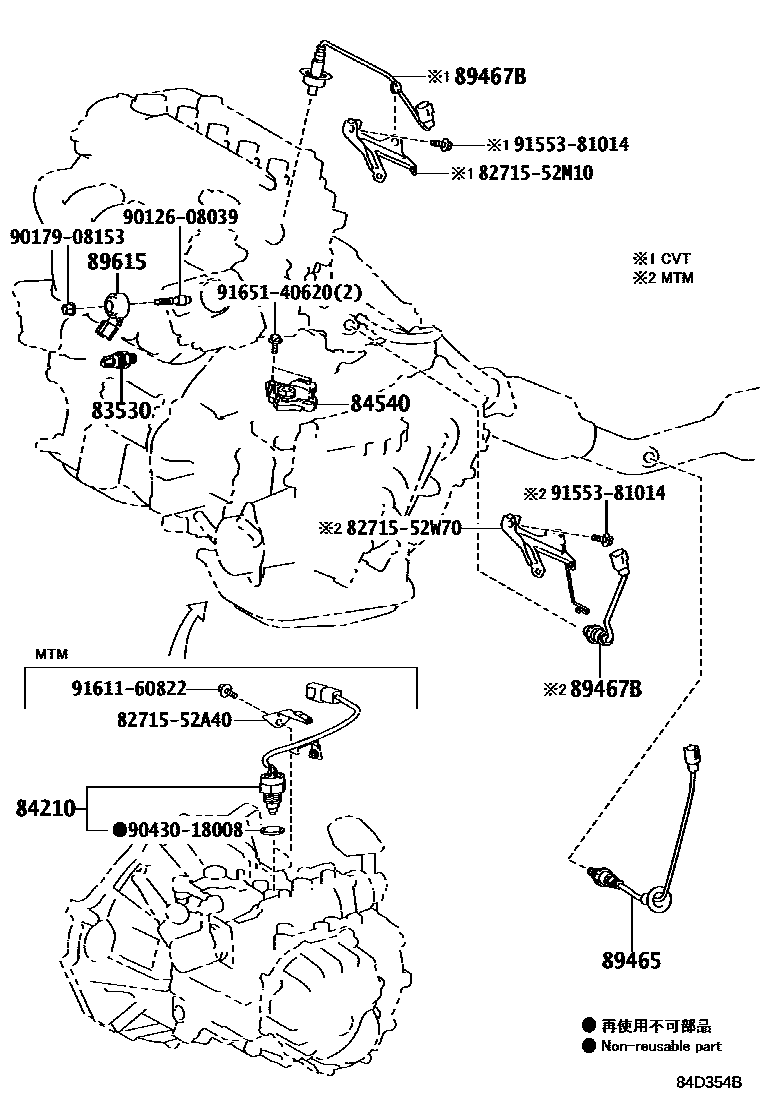

Toyota COROLLA/AXIO — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1DOOR,ROOF,FLOOR & BACK DOOR 0009 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNZE161201204-201503

DENSO,*369

main83530-60020iNRE161,NZE161201710-201908

YAZAKI,*369

84210SWITCH ASSY, BACK-UP LAMP

main84210-52010iNZE161201503-201710

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNZE161..CVT201206-201503

89465SENSOR, OXYGEN

main89465-12A90iNZE161201204-201503

main89465-52740iNRE161201503-201710

main89465-52750iNZE161201503-201710

89467BSENSOR, AIR FUEL RATIO

main89467-12160iNZE161..CVT201206-201503

main89467-52130iNZE161201710-201908

main89467-52240iNRE161201503-201710

89615SENSOR, KNOCK CONTROL

main89615-20090iNZE161201204-201503

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

8271552M10BRACKET,WIRING HARNESS CLAMP

main82715-52M10

8271552W70BRACKET,WIRING HARNESS CLAMP

main82715-52W70

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9155381014

main91553-81014

9161160822

main91611-60822

9165140620

main91651-40620

15 parts on this diagram · 9 diagrams in section
