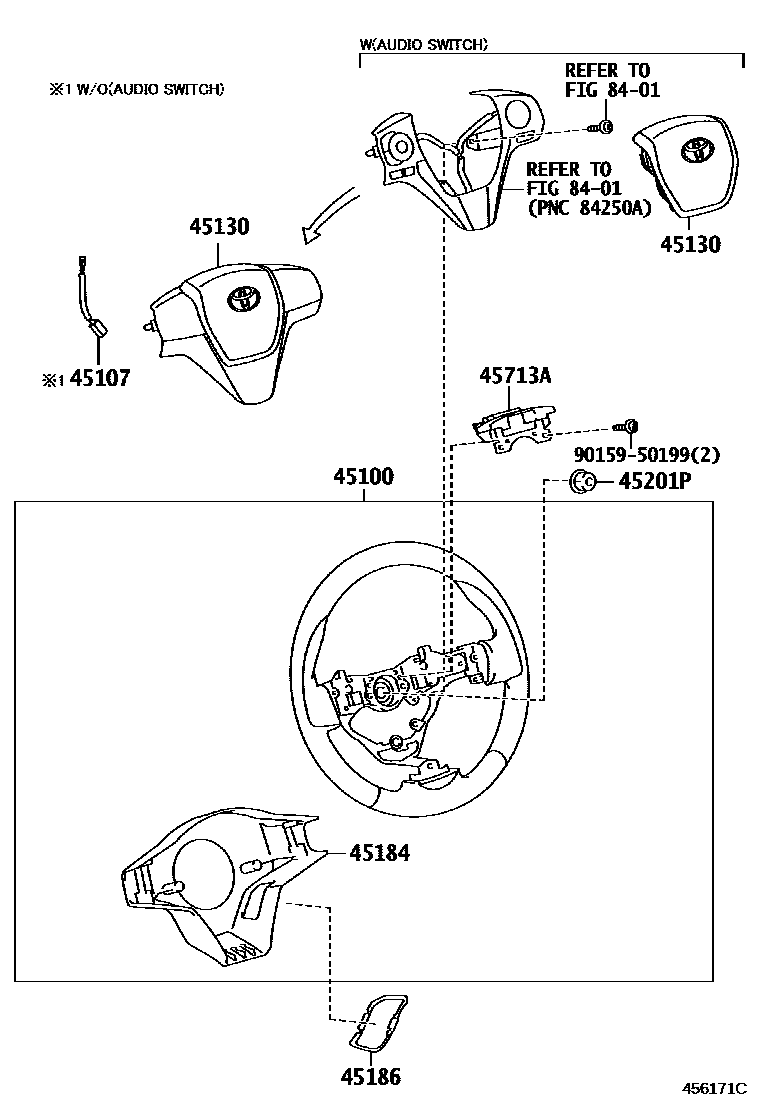

Toyota COROLLA/AXIO — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-12F70-C0i201710-201908

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-12F80-C0i201212-201503

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-42290-C0i201503-201710

3-SPOKE,LEATHER,BLACK,TRIM2#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-48010i201204-201503

45130BUTTON ASSY, HORN

main45130-12D60-C0i201204-201210

BLACK,TRIM2#

main45130-12D61-C0i201710-201908

BLACK,TRIM2#

main45130-12D70-C0i201503-201710

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-12370-C0i201204-201503

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-12030-C0i201204-201503

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071i201204-201503

45713ADAMPER, STEERING SHAKE

main45713-12150i201204-201503

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota COROLLA/AXIO

This section contains 9 genuine Toyota parts for the STEERING WHEEL system of the Toyota COROLLA/AXIO. Key components include: WHEEL ASSY, STEERING, WIRE SUB-ASSY, HORN BUTTON, BUTTON ASSY, HORN, COVER, STEERING WHEEL BOSS, LOWER, COVER, STEERING WHEEL, LOWER NO.2.
