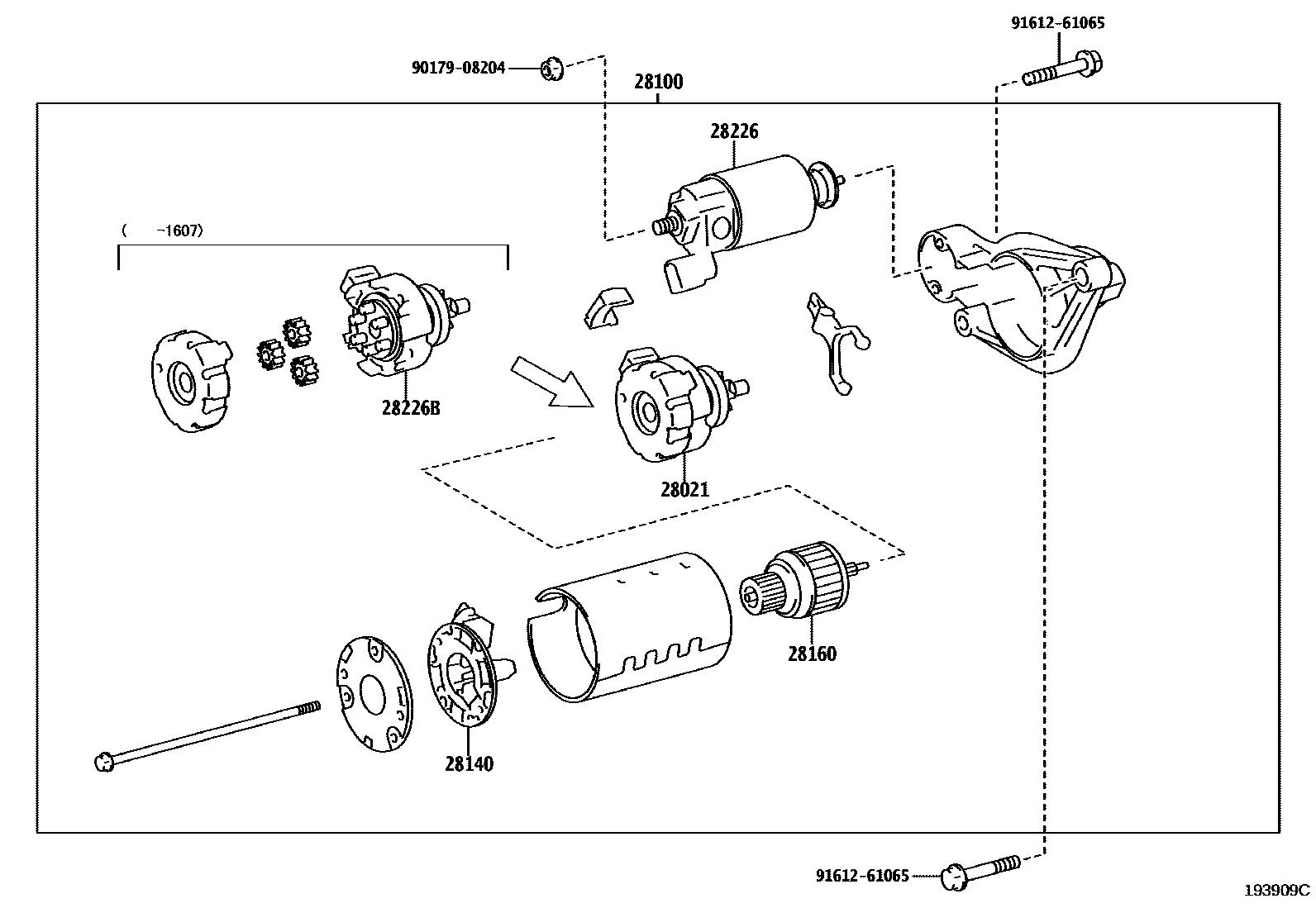

Toyota COROLLA/AXIO — STARTER

0001 112V 1.0KW 0003 112V 0.8KW 0004 1

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21070i1NZFE..NZE161201607-201710

main28021-21100i2NRFKE..NRE161201503-201710

main28021-21140i1NZFE..NZE161201903-201908

main28021-70020i1NZFE..NZE161..CVT201206-201503

28100STARTER ASSY

main28100-21021i1NZFE..NZE161..CVT201206-201407

12V 0.8KW

main28100-21022i1NZFE..NZE161..CVT201408-201503

12V 0.8KW

main28100-21070i1NZFE..NZE161..5F201204-201503

12V 1.0KW

main28100-21140i1NZFE..NZE161201903-201908

12V 1.0KW

main28100-47250i2NRFKE..NRE161201503-201710

12V 1.7KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070i1NZFE..NZE161..5F201204-201503

main28140-21100i2NRFKE..NRE161201503-201710

main28140-70020i1NZFE..NZE161..CVT201206-201503

28160ARMATURE ASSY, STARTER

main28160-21070i1NZFE..NZE161201710-201903

main28160-38070i2NRFKE..NRE161201710-201801

main28160-38080i2NRFKE..NRE161201801-201908

sub28160-36110

main28160-47180i1NZFE..NZE161201903-201908

main28160-70021i1NZFE..NZE161..CVT201206-201503

28226STARTER KIT, BATTERY TERMINAL

main28226-21080i1NZFE..NZE161..5F201204-201409

main28226-21081i1NZFE..NZE161..5F201409-201503

main28226-47180i1NZFE..NZE161201903-201908

28226BSTARTER KIT, REPAIR SERVICE

main28226-21070i1NZFE..NZE161..5F201204-201503

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 3 diagrams in section
