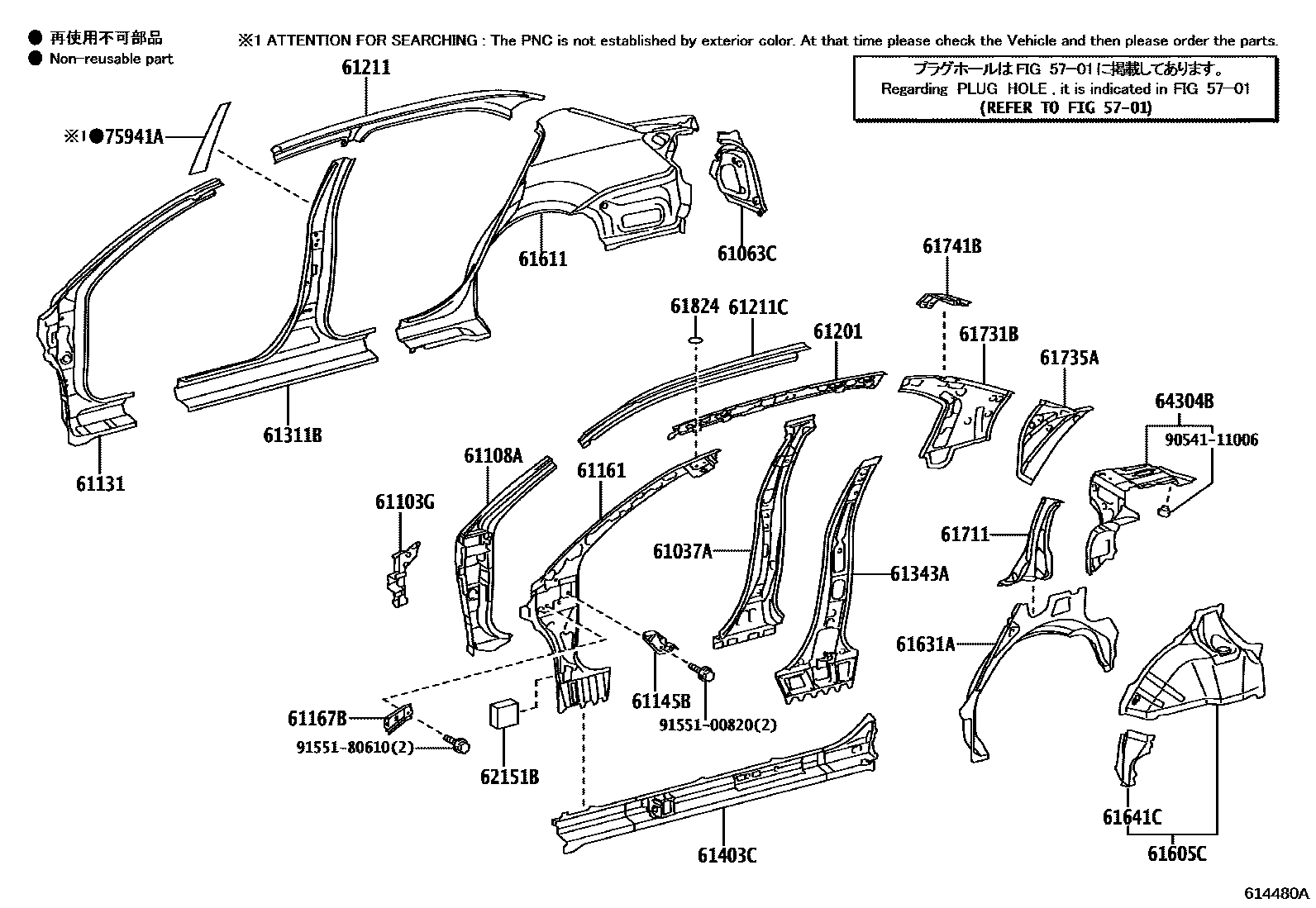

Toyota COROLLA/AXIO — SIDE MEMBER
5701
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61161PILLAR, FRONT BODY, UPPER INNER RH
61167BBRACE, FRONT BODY PILLAR, LOWER
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61211CRAIL, ROOF SIDE, RH
61311BPILLAR, CENTER BODY, OUTER RH
61343APILLAR, CENTER BODY, INNER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61605CPANEL SUB-ASSY, QUATER, REAR INNER RH
61611PANEL, QUARTER, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61741BREINFORCEMENT, BACK WINDOW OPENING, RH
61824PLATE, NOISE CONTROL, NO.1
T=0.3
62151BPAD, COWL SIDE SILENCER
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
75941ASTRIPE, CENTER PILLAR, RH
REFER TO ILLUST.
9054111006
main90541-11006
9155100820
main91551-00820
9155180610
main91551-80610
30 parts on this diagram · 4 diagrams in section
