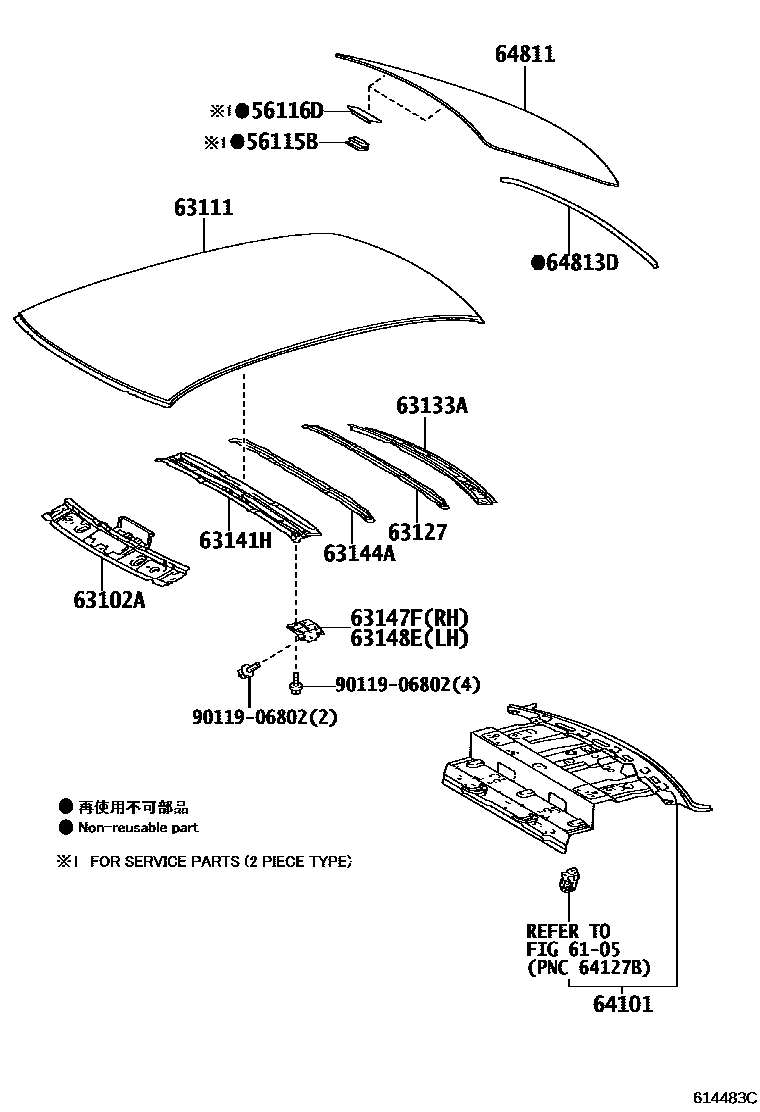

Toyota COROLLA/AXIO — ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100i201503-201710

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050i201212-201503

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12290i201503-201710

63111PANEL, ROOF

main63111-12A10i201710-201908

main63111-13500i201503-201710

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-12030i201212-201503

63133AFRAME, BACK WINDOW, UPPER

main63133-12340i201212-201503

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12320i201204-201503

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12130i201710-201908

main63144-13060i201503-201710

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-12050i201204-201503

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-12050i201204-201503

64101PANEL SUB-ASSY, UPPER BACK

main64101-12880i201212-201503

64811GLASS, BACK WINDOW

main64811-12B60i201212-201503

main64811-12C30i201710-201908

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140i201212-201503

9011906802

main90119-06802

15 parts on this diagram · 2 diagrams in section

ROOF PANEL & BACK WINDOW GLASS for Toyota COROLLA/AXIO

This section contains 20 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota COROLLA/AXIO. Key components include: STOPPER, BACK WINDOW GLASS, NO.1, STOPPER, BACK WINDOW GLASS, NO.2, LUGGAGE COMPARTMENT DOOR & LOCK, PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING.
