Toyota COROLLA/AXIO — REFLEX REFLECTOR

0001 1 0002 1

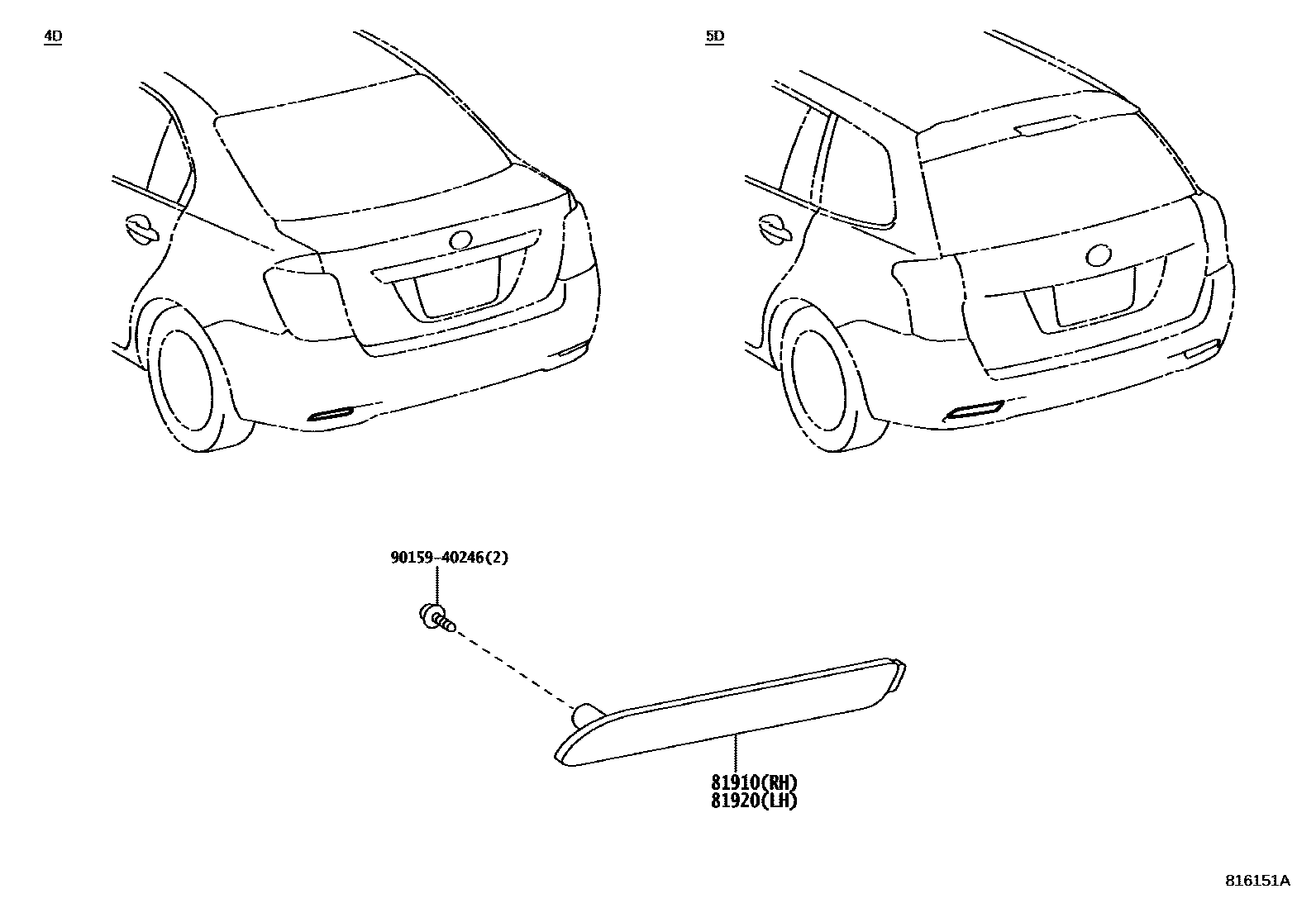

81910REFLECTOR ASSY, REFLEX, RH

main81910-33020iNRE161,NZE161..5D201710-201908

main81910-48012iNZE161201204-201503

main81910-50010iNRE161..4D201503-201710

81920REFLECTOR ASSY, REFLEX, LH

main81920-33010iNRE161,NZE161..5D201710-201908

main81920-48012iNZE161201204-201503

main81920-50010iNRE161..4D201503-201710

9015940246

main90159-40246

3 parts on this diagram · 2 diagrams in section
