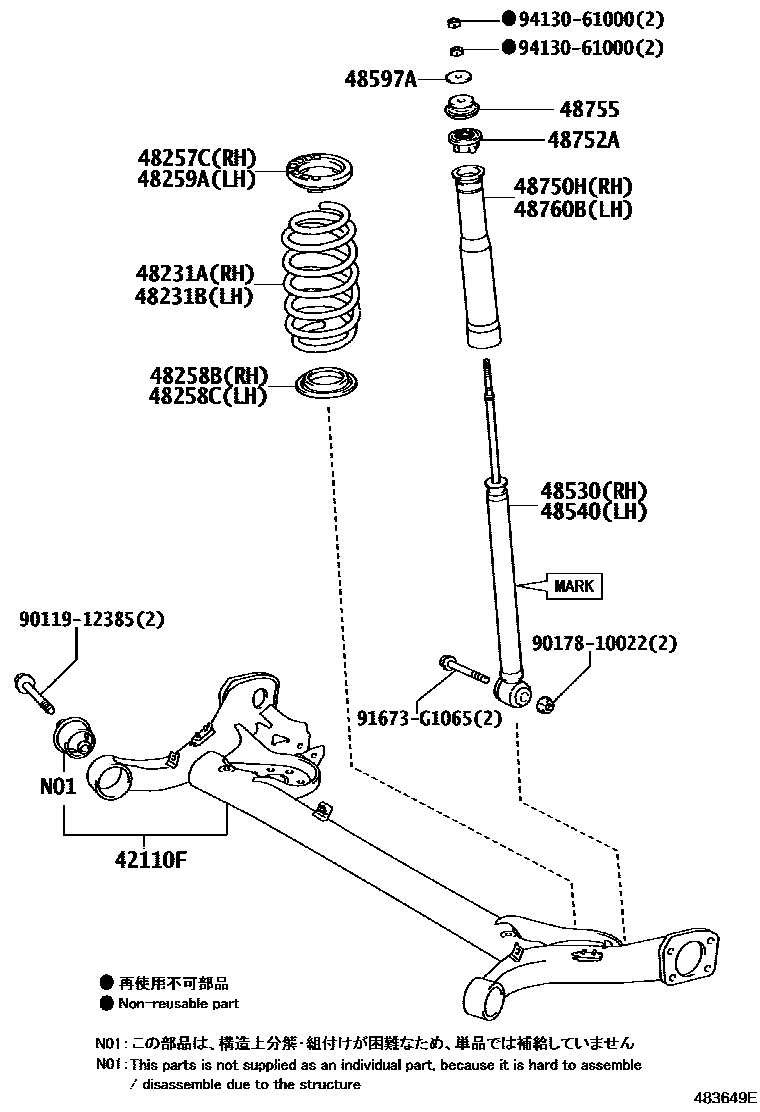

Toyota COROLLA/AXIO — REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-12E70
MARK 48530-12G42
MARK 48530-12J10
MARK 48530-13130
MARK 48530-13190
MARK 48530-13220
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-12E70
MARK 48530-12G42
MARK 48530-12J10
MARK 48530-13130
MARK 48530-13190
MARK 48530-13220
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
9011912385
main90119-12385
9017810022
main90178-10022
91673G1065
main91673-G1065
9413061000
main94130-61000
18 parts on this diagram · 1 diagram in section
REAR SPRING & SHOCK ABSORBER for Toyota COROLLA/AXIO
This section contains 18 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota COROLLA/AXIO. Key components include: BEAM ASSY, REAR AXLE, SPRING, COIL, REAR RH, SPRING, COIL, REAR LH, INSULATOR, REAR COIL SPRING, UPPER RH, INSULATOR, REAR COIL SPRING, LOWER RH.
