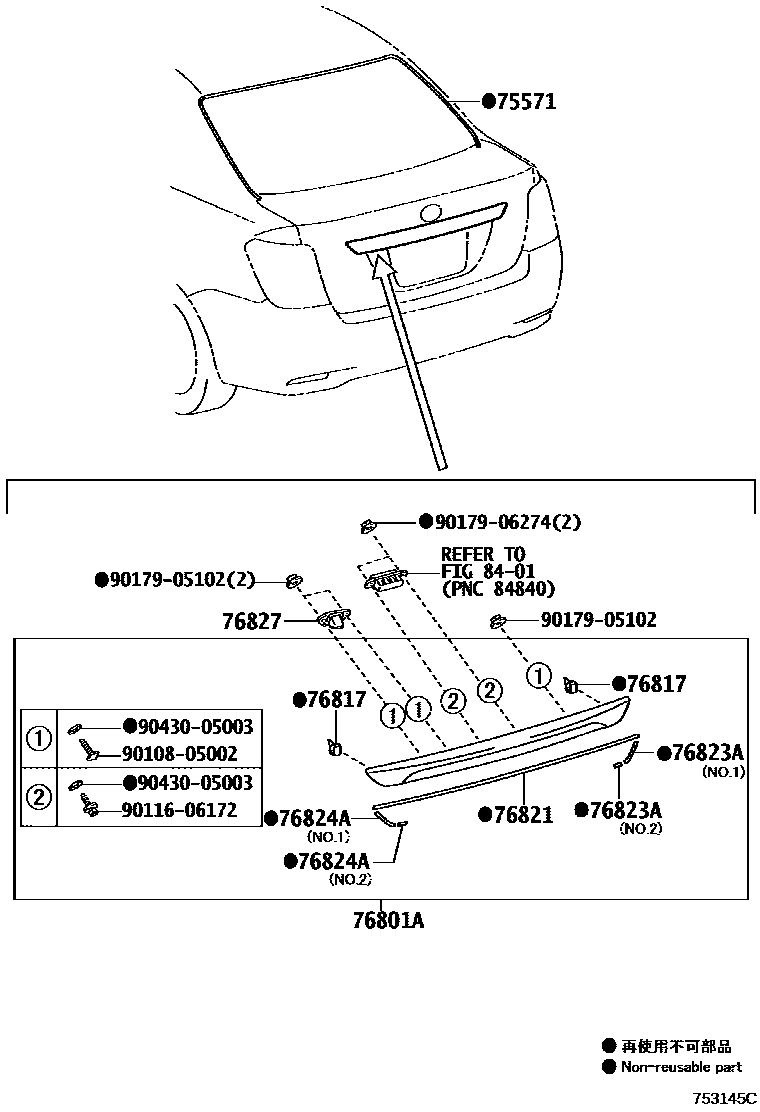

Toyota COROLLA/AXIO — REAR MOULDING
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
NO PAINT REQ.
NO PAINT REQ.
PLATED,SMART ENTRY-WITH
PLATED,SMART ENTRY-WITH
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76823APROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
76824APROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
76827RETAINER, BACK DOOR GARNISH, NO.2
8401SWITCH & RELAY & COMPUTER
9010805002
main90108-05002
9011606172
main90116-06172
9017905102
main90179-05102
9017906274
main90179-06274
9043005003
main90430-05003
13 parts on this diagram · 2 diagrams in section
REAR MOULDING for Toyota COROLLA/AXIO
This section contains 15 genuine Toyota parts for the REAR MOULDING system of the Toyota COROLLA/AXIO. Key components include: MOULDING, BACK WINDOW, OUTSIDE UPPER, GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE, CLIP, BACK DOOR OUTSIDE GARNISH, PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER, PROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH.
